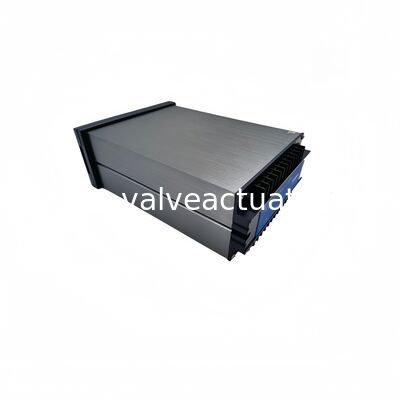

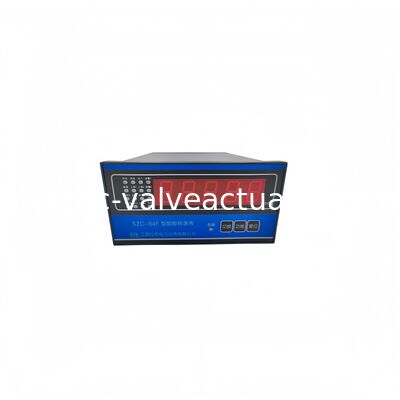

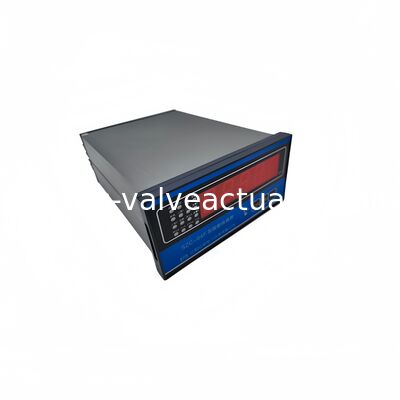

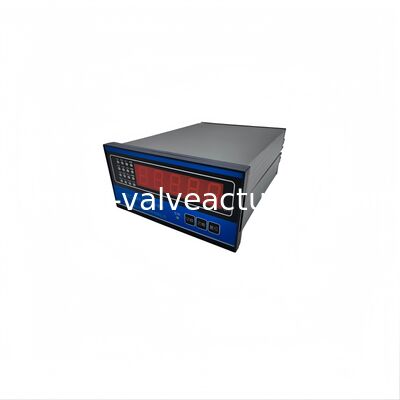

Zhonghe SZC-04F Intelligent Reverse Speed Monitoring Instrument with High Accuracy and 4-20mA Analog Output for Reverse Speed Detection

Name: Zhonghe SZC-04F Intelligent Reverse Speed Monitoring Instrument with High Accuracy and 4-20mA Analog Output for Reverse Speed Detection
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: SZC-04F
Price: 1.00 USD
Availability: InStock

Brand Name:	Zhonghe
Model Number:	SZC-04F
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

New original box

Highlight:

High Accuracy Speed Display Controller

Reverse Speed Detection Rotational Speed Sensor

4-20mA Analog Output Intelligent Reverse Speed Monitoring Instrument

Product Description

Zhonghe SZC-04F Intelligent Reverse Speed Monitoring Instrument

The SZC-04 series intelligent tachometer is a digital display instrument featuring high accuracy, stable performance, strong anti-interference capability, high reliability, and simple operation. Users can configure parameters such as tooth count, transmission coefficient, and alarm values on-site.

Product Overview

The SZC-04 series includes five models: SZC-04, SZC-04B, SZC-04BG, SZC-04F, and SZC-04FG. These instruments are suitable for measuring the speed of steam turbines, water pumps, and fans. The SZC-04F and SZC-04FG models specifically monitor reverse speed and require connection to two sensor signals.

The instrument is pre-configured according to order requirements and ready for immediate use. Parameter modifications should only be performed by qualified professionals following the manufacturer's manual.

Key Features

Measures and displays rotational speed or frequency (excluding SZC-04 model)
Peak value measurement memory function
Selectable frequency measurement and period measurement modes (excluding SZC-04 model)
Configurable tooth count and transmission coefficient (1-200 range)
Alarm switch outputs with configurable values and lockable outputs
4-20mA analog output corresponding to measurement range
Retains set parameters during power outages
Detects forward or reverse rotation (SZC-04F/SZC-04FG models only)
12VDC power supply for sensors (SZC-04F/SZC-04FG models)

Technical Specifications

Parameter	Specification
Measurement Range	1 - 15,000 RPM
Measurement Accuracy	1 revolution ± 1 digit
Input Signals	50mV - 30V pulse or sine wave (SZC-04/SZC-04B/SZC-04BG) High level 5V - 30V, low level ≤ 0.7V pulse (SZC-04F/SZC-04FG)
Display	5-digit LED display
Alarm Output	Relay switch output, contact capacity AC250V/2A DC28V/2A
Current Output	DC 4-20mA, accuracy ±1.0% (at 25℃), maximum load 500Ω
Power Supply	(198-242) VAC, 50Hz ± 5% (linear power supply) (20-26) VDC (85-265) VAC (switching power supply)
Dimensions	SZC-04: 1608085mm (15276mm opening) SZC-04B/SZC-04F: 16080225mm (15276mm opening) SZC-04BG/SZC-04FG: 19029092mm (170*272mm installation)
Operating Conditions	Ambient temperature: 0-50℃ Storage temperature: -10-60℃ Relative humidity: 20-90% (non-condensing) Environment: Free from corrosive substances and strong magnetic fields
