Zhonghe SZ-2 Magnetoelectric Speed Sensor with IP65 Protection 30mV/mm/s Sensitivity for Bearing Vibration Measurement No Power Supply Required

Name: Zhonghe SZ-2 Magnetoelectric Speed Sensor with IP65 Protection 30mV/mm/s Sensitivity for Bearing Vibration Measurement No Power Supply Required
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: SZ-2
Price: 1.00 USD
Availability: InStock

Brand Name:	Zhonghe
Model Number:	SZ-2
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

China

Sensing Range:

Model:

SZ-2

Protection Level:

IP65

Sensing Range:

Model:

SZ-2

Protection Level:

IP65

Packaging Details:

New original box

Highlight:

IP65 Protection Magnetoelectric Speed Sensor

30mV/mm/s Sensitivity Bearing Vibration Sensor

No Power Supply Required Rotational Speed Sensor

Product Description

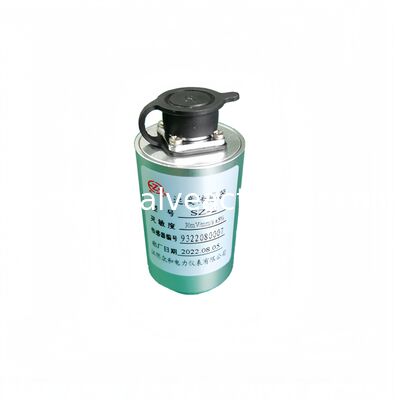

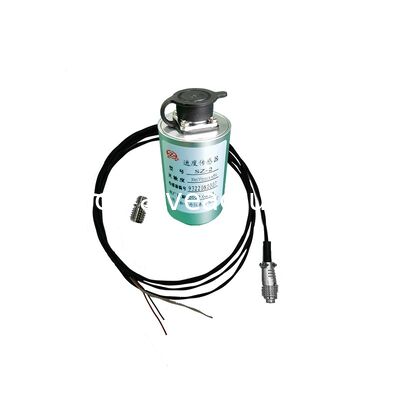

Zhonghe SZ-2 Bearing Vibration Specialized Magnetoelectric Speed Sensor Probe

The SZ series magnetoelectric speed sensor is designed for measuring bearing cover vibration in rotating machinery including steam turbines, compressors, fans, and pumps. This electromagnetic sensor generates voltage output through moving coil magnetic field interaction, requiring no external power supply and offering easy installation.

Key Features

Output signal proportional to vibration velocity, suitable for high, mid, and low-frequency vibration measurement
Low output impedance with excellent signal-to-noise ratio, no special requirements for output plugs and cables
Frictionless moving parts design provides high flexibility and capability to measure minute vibrations (0.01mm)
Resistant to lateral vibration (up to 10g peak value)
Versatile mounting for bearing housings, machine housings, or structural vibration measurement
Stainless steel housing with laser welding technology, achieving IP65 protection rating

Technical Specifications

Parameter	Specifications
Sensitivity	SZ-2: 30mV/mm/s ±5% SZ-6, SZ-6B: 50mV/mm/s ±5% SZ-4V, SZ-4H: 28.5mV/mm/s ±5% SZ-6G: 50mV/mm/s ±5% SZ-6E: 40mV/mm/s ±5%
Amplitude Limit	≤ 2000μm (peak-to-peak)
Frequency Response	SZ-2: 10-500 Hz SZ-6, SZ-6B, SZ-6G, SZ-6E, SZ-4V, SZ-4H: 4-1000 Hz
Maximum Acceleration	10g
Measurement Direction	SZ-2, SZ-6, SZ-6G, SZ-6E: Vertical or Horizontal SZ-4V: Vertical Type SZ-4H: Horizontal Type
Operating Temperature	-30°C to 120°C
Relative Humidity	≤ 95% RH (non-condensing)
Dimensions	Φ35 * 76 mm
Weight	Approximately 200g

Operating Environment

Suitable for environments free from strong magnetic fields, corrosive gases, or liquids.

Note: Specifications are for reference only; actual product specifications may vary.
