ZH3000 Series Φ11mm 9-meter Long Eddy Current Sensor for Axial Displacement Measurement in Rotational Speed Monitoring

ZH3000 Series Φ11mm 9-meter Long Eddy Current Sensor for Axial Displacement Measurement in Rotational Speed Monitoring

Brand Name:	Zhonghe
Model Number:	ZH3000 Φ 11
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

China

Sensing Range:

4mm

Series:

ZH3000

Operating Temperature:

20 (°C)

Sensor Type:

Eddy Current

Sensing Range:

4mm

Series:

ZH3000

Operating Temperature:

20 (°C)

Sensor Type:

Eddy Current

Sensing Range:

4mm

Series:

ZH3000

Operating Temperature:

20 (°C)

Sensor Type:

Eddy Current

Packaging Details:

New original box

Highlight:

9-meter long Eddy Current Sensor

Φ11mm probe Rotational Speed Sensor

Axial displacement measurement Displacement Sensor

Product Description

ZH3000 Series Φ11 (50) 9-Meter Eddy Current Sensor Probe

Advanced axial displacement measurement sensor for industrial rotating machinery applications

Product Overview

The ZH3000 series eddy current sensors combine advanced performance with component interchangeability, featuring high-density DIN rail insulated mounting brackets that save 50% space compared to traditional screw mounting. Compatible with API 670 (4th edition) standards and certified for hazardous environments with ExiaⅡCT2~T6 explosion-proof ratings.

System Configuration

The ZH3000 eddy current sensor system consists of three main components:

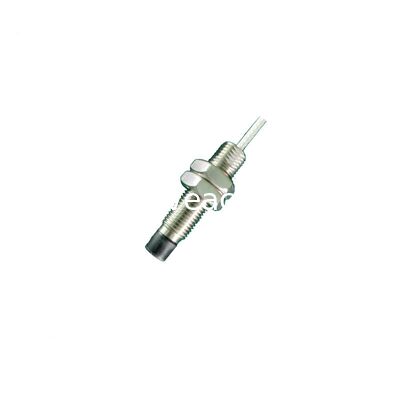

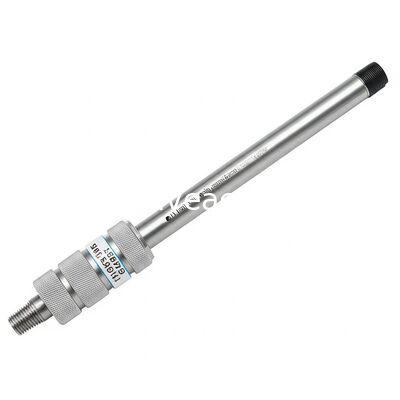

ZH3000 Probe: Available in Φ8mm, Φ11mm, and Φ25mm diameters with 1m or 0.5m cable lengths

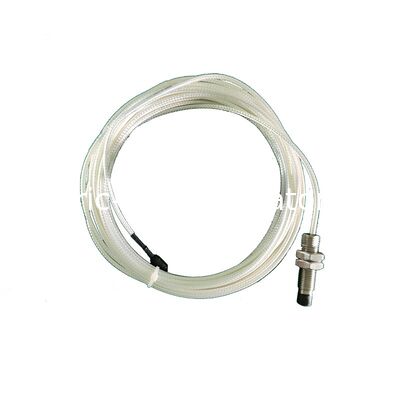

ZH3000 Extension Cable: SMA self-locking plugs with oil-proof protection, available in 4m, 4.5m, 8m, and 8.5m lengths

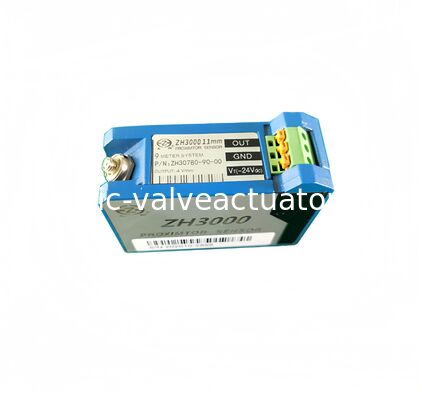

ZH3000 Preamplifier: Core system component with oscillation, detection, filtering, and amplification circuits

Technical Specifications

Parameter	ZH3000 Φ8mm	ZH3000 Φ11mm	ZH3000 Φ25mm
Probe Diameter (mm)	8	11	27.1
Static Linear Range (mm)	2	4	12.7
Static Sensitivity (V/mm)	8	4	0.8
Frequency Response	(0～15)kHz	(0～8)kHz	(0～3)kHz
Measurement Range: Midpoint Gap (mm)	1.8	3	9
Measurement Range: Midpoint Voltage (V)	-10	-10	-7.08

General Specifications

Power Supply: (-20 ~ 26)Vdc

Power Consumption: 12-15mA

Operating Temperature: Preamplifier: -30℃~+70℃, Probe: -40℃~+150℃

Storage Temperature: Preamplifier: -35℃~+100℃, Probe: -40℃~+177℃

Enclosure Protection: IP20 or higher

System Cable Length: 5m or 9m total

Altitude Limit: <2000m

Mechanical Properties

Probe Material: Polyphenylene sulfide (PPS)

Housing Material: 1Cr18Ni9Ti stainless steel

Cable Material: Coaxial shielded with FEP outer sheath

Connector Material: Brass or beryllium bronze gold-plated

Preamplifier Material: ADC12

Probe Tensile Strength: Max 30kg between protective cover and housing

Minimum Cable Bend Radius: 25.4mm (30mm for armored cable)
