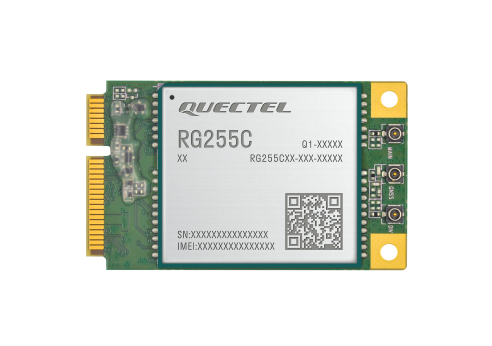

RedCap RG255C Series Mini PCIe 5G Module for High Speed Data Transmission

Brand Name:	Quectel
Model Number:	5G RedCap RG255C Mini PCIe
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

China

Mini PCIe Form Factor:

30 Mm × 50.95 Mm × 4.95 Mm

Max. Data Rates Of:

223 Mbps DL / 123 Mbps UL

Extended Temperature Range Of:

40°C To +85°C

Packaging Details:

New original box

Highlight:

Mini PCIe 5G module for data transmission

RedCap RG255C 5G module

High speed Mini PCIe module

Product Description

RedCap RG255C Series Mini PCIe 5G Module for High Speed Data Transmission

Key Features

Worldwide 5G/4G coverage
5G SA mode, 5G LAN*/URLLC/slicing supported
Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment (optional)
Feature refinements: DFOTA and VoNR/VoLTE (optional)

Overview

Quectel RG255C-GL Mini PCIe is a 5G RedCap module adopting standard PCI Express® Mini Card form factor (Mini PCIe). Adopting the 3GPP Rel-17 RedCap technology, the module supports 5G LAN*/Slicing/URLLC, etc., with a theoretical peak data rate of 223 Mbps in the downlink and 123 Mbps in the uplink.

The module supports LTE Cat 4 and 5G Sub-6 SA modes, and is backward compatible with 3GPP Rel-15 and Rel-16 networks. The module can meet customers' different application demands for medium speed, large capacity, low latency, high reliability, etc.

RG255C-GL Mini PCIe module supports Qualcomm® IZat™ location technology Gen 9VT (GPS, GLONASS, NavIC, BDS and Galileo). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces (USB 2.0, PCM, UART, etc.) and abundant functionalities (USB drivers for Windows 10/11, Linux and Android) extend the applicability of the module to a wide range of RedCap applications.
