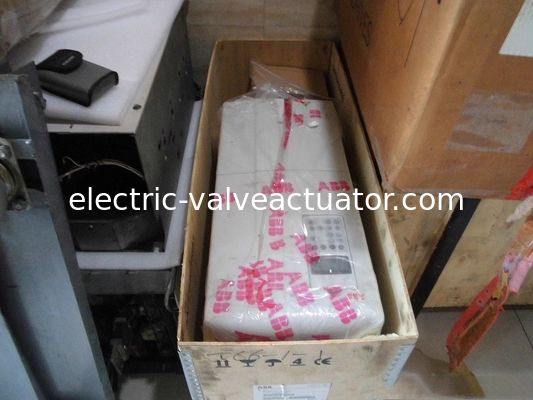

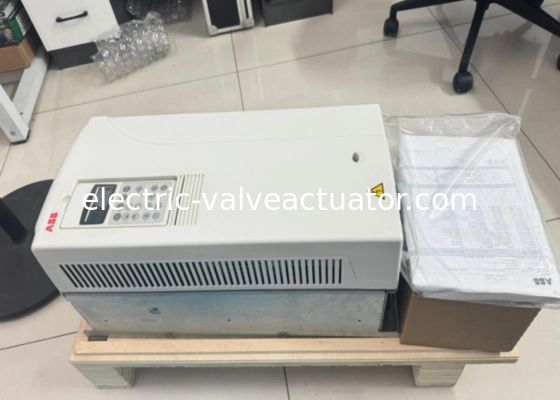

ACS800-01-0135-3+P901 3Phases 110 kW 160A ABB ACS800 general purpose series

The ABB ACS800-01-0135-3 + P901 is a complete drive system combining ABB's flagship ACS800-01 direct torque control (DTC) drive with the P901 mains choke for enhanced performance. This 135 kW (180 hp) rated system delivers superior motor control, energy efficiency, and reliability for demanding industrial applications. The ACS800-01 features ABB's patented Direct Torque Control (DTC) technology, while the P901 mains choke provides improved power quality and reduced harmonic distortion.

• Advanced DTC Technology - Precise motor control without encoder feedback
• High Power Rating - 135 kW (180 hp) capacity for heavy-duty applications
• Harmonic Mitigation - P901 mains choke reduces harmonic distortion
• Robust Construction - Designed for industrial environments
• Energy Efficient - Optimized for reduced power consumption
• Flexible Configuration - Adaptable to various motor types and applications

• Direct Torque Control (DTC) - Provides precise speed and torque control without encoder feedback
• Built-in Protection - Comprehensive motor and drive protection features
• Flexible I/O - Multiple digital and analog inputs/outputs
• Fieldbus Options - Supports Profibus, Modbus, DeviceNet, and others
• Braking Options - Supports dynamic braking and regenerative braking

• Harmonic Filtering - Reduces harmonic distortion to <5% THD
• Power Quality Improvement - Minimizes voltage fluctuations
• EMC Compliance - Helps meet electromagnetic compatibility requirements
• Simple Installation - Compact design for easy integration

• Pumps and fans
• Compressors
• Conveyors
• Extruders
• Mixers and agitators
• Mining equipment
• Cranes and hoists
• Test stands

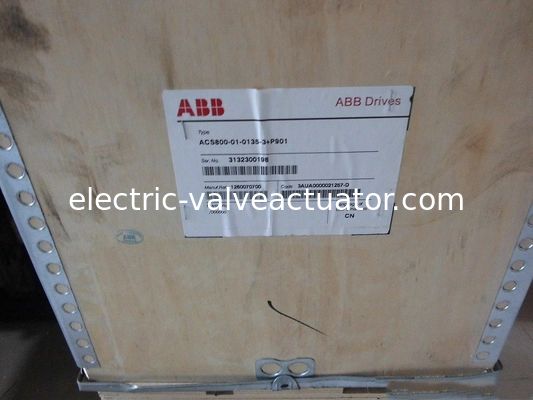

• Part Number: ACS800-01-0135-3 + P901
• Standard Accessories:
  • Operator interface (optional)
  • Cabling kits
  • Mounting hardware
• Packaging: Industrial packaging with protective foam
• Availability: Standard lead time: 4-6 weeks

• Complete documentation available including:
  • Technical datasheets
  • Installation manual
  • Configuration guide
  • Harmonic analysis report
  • CE and UL certification documents

This comprehensive drive system provides:

• Precise motor control for demanding applications
• Improved power quality through harmonic mitigation
• Energy-efficient operation
• Reliable performance in industrial environments
