AJ65BT-64RD3 Mitsubishi Universal Model Redundant Power Supply Module

Name: AJ65BT-64RD3 Mitsubishi Universal Model Redundant Power Supply Module
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: AJ65BT-64RD3
Price: 210.00 USD
Availability: InStock

Brand Name:	MITSUBISHI
Model Number:	AJ65BT-64RD3
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Program Capacity:

8 K Steps

Basic Operation Processing Speed (LD Instruction):

0.12 μs

Input:

24VDC

Output:

12/24VDC (0.5A).

Packaging Details:

New original box

Highlight:

Mitsubishi redundant power supply module

universal power supply module with warranty

low voltage protection power module

Product Description

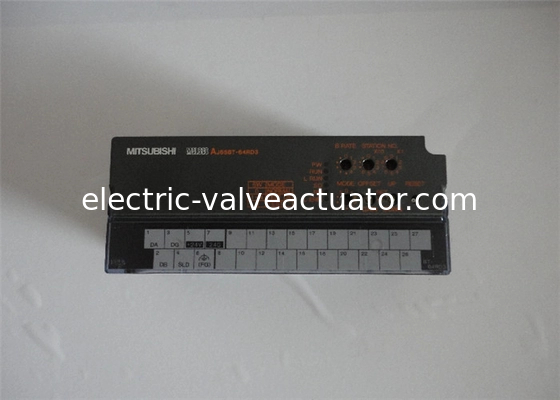

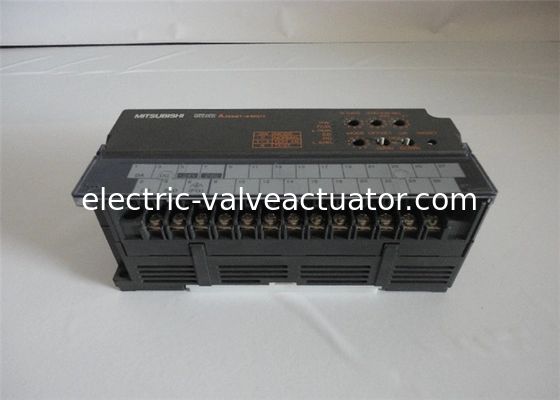

AJ65BT-64RD3 Mitsubishi Universal Model Redundant Power Supply Module

The AJ65BT-64RD3 serves as a CC-Link remote I/O module dedicated to temperature measurement. It functions as a slave station on a CC-Link network, enabling centralized monitoring and control by a master PLC (e.g., Mitsubishi Q series). The module is engineered for high-precision temperature acquisition in environments such as environmental protection, chemical industry, electronics, and electrical applications.

Features

High-Precision Measurement: The module offers exceptional accuracy, with ±0.1% deviation at an ambient temperature of 25±5°C. Even under broader temperature conditions (below 20°C or above 30°C), it maintains an accuracy of ±0.25%.
3-Wire Connection for Improved Accuracy: It utilizes a 3-wire connection method for the platinum RTDs. This configuration helps compensate for lead wire resistance, significantly reducing measurement errors compared to 2-wire setups and ensuring more reliable data.
Fast Conversion Speed: Each channel has a conversion time of 40ms, allowing for relatively quick sampling of temperature changes across all four channels.
CC-Link Network Integration: As a CC-Link Ver.2.0 compatible slave module, it supports high-speed communication up to 10 Mbps. This allows for distributed control, where the module can be installed close to the temperature sensors, reducing wiring costs and improving system reliability.
Electrical Isolation: The module provides photoelectric coupler isolation between the Pt100 sensor input circuits and the CC-Link communication bus, enhancing noise immunity and protecting the system from ground potential differences.

Material & Applications

The module's construction involves electronic components mounted on a PCB housed within a compact unit. External connections are made via robust screw terminal blocks (M3.5 screws) for both the communication/power and the sensor input/output signals. Its primary material use centers on reliable industrial-grade electronics designed for long-term operation.

Main Application: Industrial automation for precise temperature monitoring. Typical use cases include:

Process Industries: Monitoring reaction temperatures in chemical plants or temperature control in environmental protection equipment.
Manufacturing: Temperature surveillance in electronic component production, battery manufacturing, and various electrical systems.
Equipment Integration: Serving as a critical component in machinery requiring high-resolution temperature feedback for control loops.

Key Technical Parameters

Parameter	Specification
Number of Channels	4 channels (4CH)
Compatible Sensors	Pt100, JPt100 (3-wire type)
Temperature Range	-180°C to 600°C (for both Pt100 and JPt100)
Resolution	0.025°C
Conversion Speed	40 ms per channel
Output Value	16-bit binary (-1800 to 6000) / 32-bit binary (-180000 to 600000)
Accuracy	±0.1% (at 25±5°C); ±0.25% (at <20°C or >30°C)
Supply Voltage	DC 24V (允许范围 DC 18-30V)
CC-Link Stations Occupied	4 stations
Isolation	Photocoupler isolation between sensor input and CC-Link
Dimensions (H x W x D)	65 mm x 151.9 mm x 63 mm
Weight	0.38 kg

General Specifications

Parameter	Specification
Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-20...75 ˚C
Operating ambient humidity	10...90 %RH, non-condensing
Storage ambient humidity	10...90 %RH, non-condensing
Vibration resistance	Compliant with JIS B 3502 and IEC 61131-2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s2, 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
