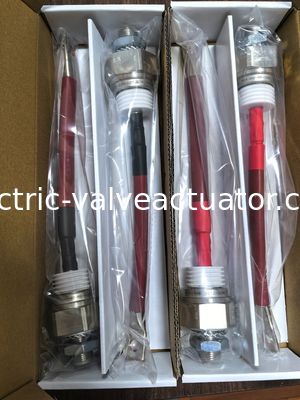

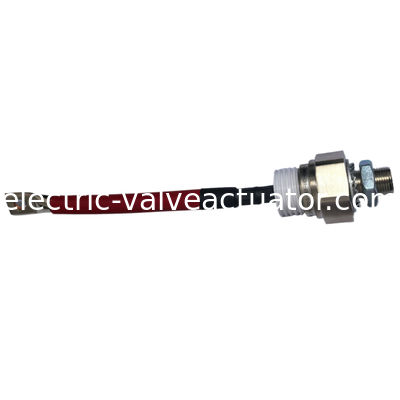

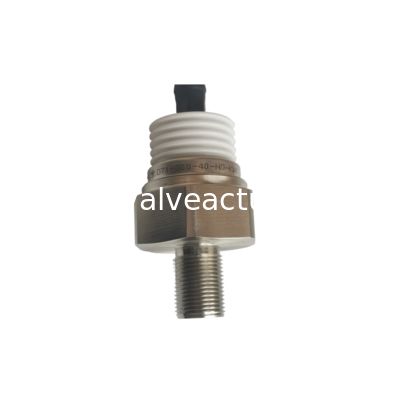

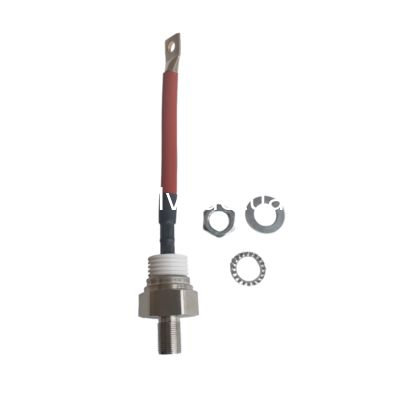

D71-300-40-N0-KWK 300A Stud Rectifier Diode, Suitable for High-Frequency, High-Power Power Conversion

Name: D71-300-40-N0-KWK 300A Stud Rectifier Diode, Suitable for High-Frequency, High-Power Power Conversion
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: D71-300-40-N0-KWK
Price: 210.00 USD
Availability: InStock

Brand Name:	Original
Model Number:	D71-300-40-N0-KWK
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

New original box

Highlight:

300A stud rectifier diode

high-frequency power conversion diode

high-power rectifier diode with warranty

Product Description

D71-300-40-N0-KWK 300A Stud Rectifier Diode, Suitable for High-Frequency, High-Power Power Conversion

High-Performance Stud Rectifier Diode

The D71-300-40-N0-KWK is a 300A stud rectifier diode designed for high-frequency, high-power power conversion applications.

High Current Capacity: Average forward current (IFAV) of 300 amperes for robust operation
Exceptional Voltage Rating: Repetitive peak reverse voltage (VRRM) of 4000V
Surge Protection: Peak forward current (IFSM) up to 6300A for overload conditions
Efficient Design: Low forward voltage drop reduces power losses
Fast Switching: Short reverse recovery time minimizes switching losses
Robust Construction: Stud design for easy installation with heat sinks
Wide Temperature Range: Operates from -40°C to +175°C

Technical Specifications

Parameter	Value
Average Forward Current (IFAV)	300A
Repetitive Peak Reverse Voltage (VRRM)	4000V
Surge Peak Forward Current (IFSM)	6300A
Operating Temperature Range	-40°C to +175°C
Mounting Type	Stud
Material	High-quality silicon

Design Features

The diode features an industry-standard housing that ensures mechanical strength while facilitating replacement and maintenance. Its stud design allows for secure mounting with various heat sinks to ensure optimal thermal performance.

Typical Applications

High-frequency power supplies
Switching power supplies
Solar inverters
Electric vehicle chargers
Industrial power conversion systems

In switching power supplies, it efficiently rectifies AC to DC while minimizing power losses. For solar inverters, its fast recovery time enables efficient high-frequency conversion of solar panel power.
