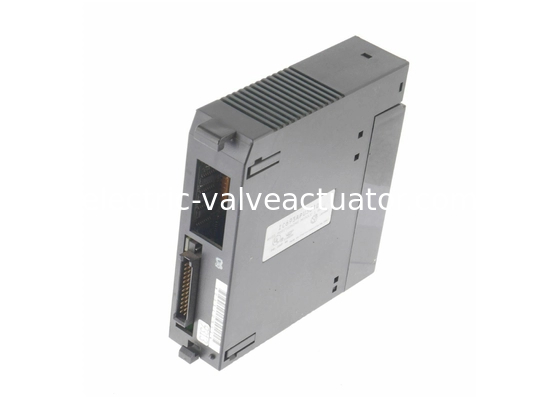

GE FANUC IC693APU301 Single Axis Positioning Module Series 90-30

Name: GE FANUC IC693APU301 Single Axis Positioning Module Series 90-30
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: IC693APU301
Price: 210.00 USD
Availability: InStock

Brand Name:	GE
Model Number:	IC693APU301
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

USA

Series:

Series 90-30

Product Type:

Axis-positioning Module

Number Of Axes:

Servo Loop Update Time:

1 Millisecond

Software:

VersaPro Software

Standard Operating Mode:

Supported

Follower Operating Mode:

Supported

Warranty:

1 Year

Packaging Details:

New original box

Highlight:

GE FANUC Series 90-30 positioning module

IC693APU301 single axis controller

ESP controller with positioning module

Product Description

GE FANUC IC693APU301 Single Axis Positioning Module Series 90-30

Product Description

The IC693APU301 is a Single Axis Positioning Module (APM) for the GE Series 90-30. The Motion Mate APM is a simple to use, fully programmable, intelligent motion control module. Created specifically for the Series 90-30 PLC, this axis positioning module lets the PLC user mix high performance control with PLC logic solving functions in a single combined system.

IC693APU301 is configurable to either a standard or follower mode depending on the needs of the user:

Standard mode permits the user to mix high performance motion control with PLC logic solving functions
Follower mode provides high performance electronic gearing for continual master/slave applications

The Series 90-30 and IC693APU301 operate together as an integrated control package with the APM handling all direct communications to both the drive and machine. The PLC automatically transfers data between the tables and the APM.

Installation options:

Can be installed in any Series 90-30 CPU, remote baseplate, or expansion
Embedded CPU supports up to three APM modules
Modular CPU supports up to eight APM modules

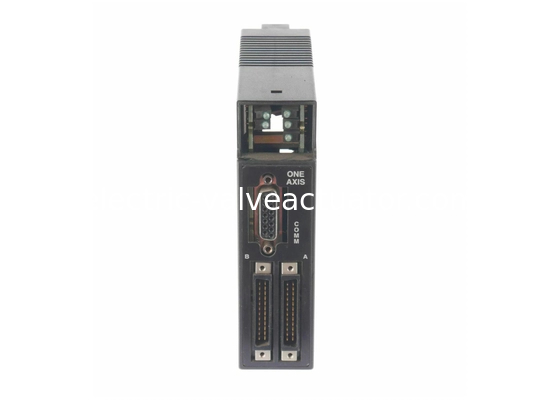

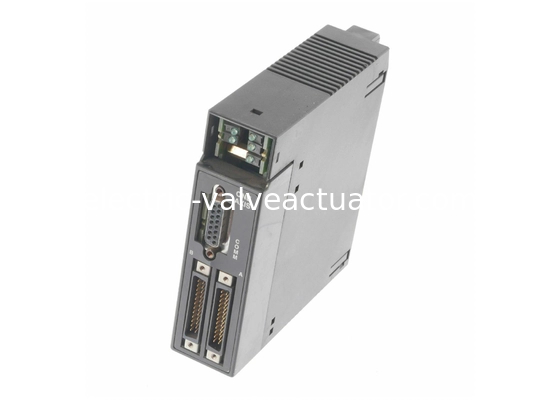

The APM faceplate features two 24-pin high density connectors for servo connections. Wiring is simplified through short cable terminal blocks consisting of a 24-pin I/O connector, cable, and 25-pin D-type terminal block.

Technical Specifications

Brand	GE Fanuc
Series	Series 90-30
Part Number	IC693APU301
Product Description	Axis Positioning Module
No. of Axes	1 Axis
Servo Loop Update	1 millisecond
Software	VersaPro
Software Version	1.1 or later
Connector Types	24-pin High Density, 25-pin D Type
Compatibility	Series 90-30 PLCs
Product Lifecycle Status	Discontinued/Obsolete
