Eaton contactor DLM12-01 coil voltage 24V AC rated power 5.5 kW

Brand Name:	Eaton
Model Number:	DLM12-04
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

OEM

Coil Voltage:

24V AC

Polar Number:

Electric Shock Rated Voltage:

400V AC

Rated Value Of Electric Shock Current:

12A

Rated Power:

5.5 KW

Maximum Operating Temperature:

+60 ° C

Minimum Operating Temperature:

-25 ° C

Packaging Details:

New original box

Highlight:

Eaton DLM12-01 contactor 24V AC

DC contactor 5.5 kW rated power

Eaton contactor with 24V coil

Product Description

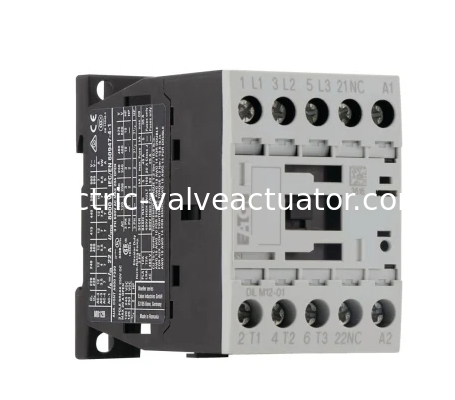

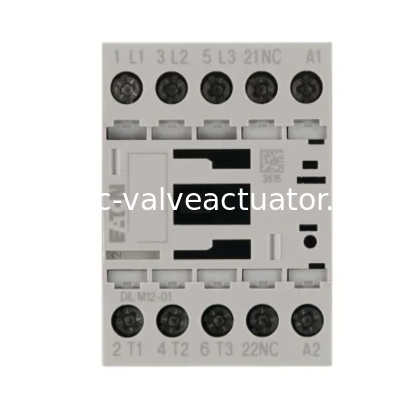

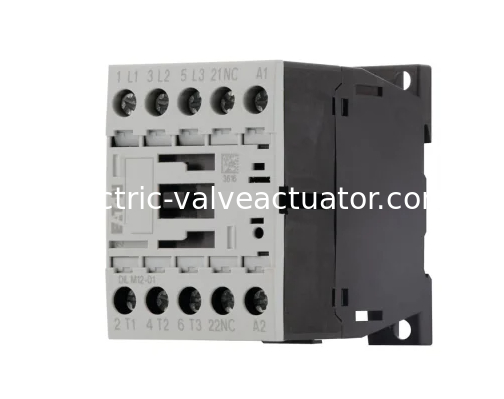

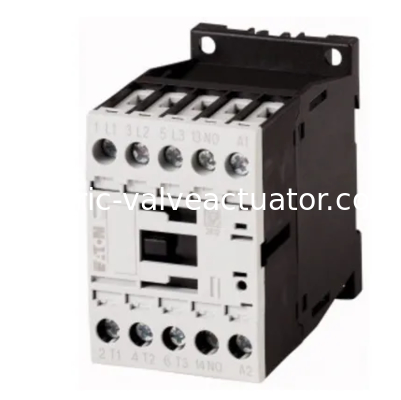

Eaton contactor DLM12-01 coil voltage 24V AC rated power 5.5 kW

Product Overview

The Eaton DLM12-01 contactor is a three-pole device with 24V AC coil voltage and 5.5 kW rated power, designed for motor control applications. It features screw connections for both main and auxiliary circuits, and comes equipped with mirror contacts and varistor suppressor circuit.

Key Specifications

Number of poles

Three-pole

Coil voltage

24V AC

Rated power

5.5 kW

Connection type

Screw terminals

Frame size

FS1

Degree of protection

IP20

Technical Specifications

Parameter	Value
Electrical connection type	Screw connection
Operating frequency	9000 mechanical Operations/h (DC operated)
Pollution degree	3
Rated impulse withstand voltage (Uimp)	8000 V AC
Utilization category	AC-3: Normal AC induction motors AC-1: Non-inductive loads AC-4: Normal AC induction motors
Ambient operating temperature	-25°C to +60°C
Conventional thermal current Ith (3-pole, enclosed)	18 A
Rated operational current (Ie) at AC-3, 400 V	12 A
Rated breaking capacity at 400 V	120 A
Lifespan, mechanical	10,000,000 Operations (DC operated)

Motor Power Ratings

Voltage	Phase	Power Rating
115/120 V, 60 Hz	1-phase	1 HP
200/208 V, 60 Hz	3-phase	3 HP
230/240 V, 60 Hz	1-phase	2 HP
230/240 V, 60 Hz	3-phase	3 HP
460/480 V, 60 Hz	3-phase	10 HP
575/600 V, 60 Hz	3-phase	10 HP

Additional Features

Fitted with mirror contact and varistor suppressor circuit
Connection to SmartWire-DT possible with DIL-SWD module
Protection: Finger and back-of-hand proof (EN 50274)
Suitable for motors with efficiency class IE3
Short-circuit current rating: 5 kA (basic rating)
Meets product standard requirements for corrosion resistance, UV radiation, and insulation materials

Environmental Specifications

Parameter	Value
Climatic proofing	Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
Shock resistance	5-10 g depending on contact type (half-sinusoidal shock 10 ms)
Altitude	Max. 2000 m
Overvoltage category	III
