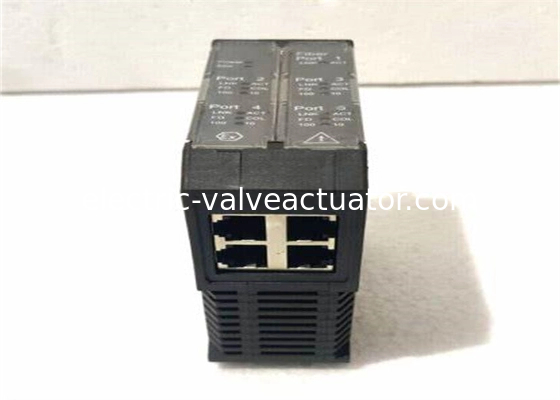

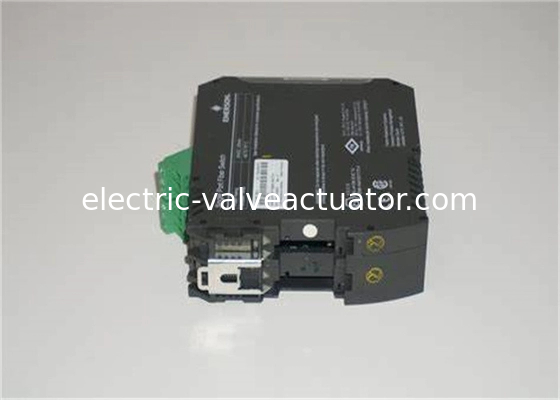

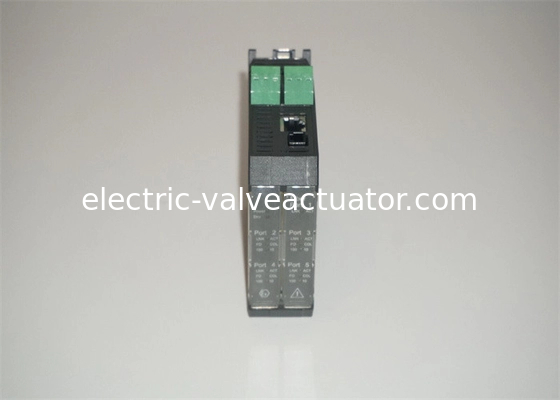

Emerson Deltav KJ1710X1-BA1 Brand New Single Port Fiber Switch

Emerson Deltav KJ1710X1-BA1 Brand New Single Port Fiber Switch

Description:

Redundant Power Supply Module

DELTAV KJ3006X1-BA1 VE4015 12P2180X072 Pulse Multifunction I/O CARD

Power Specifications:

LocalBus power rating: 12 VDC at 250 mA
Bussed field power rating: 24 VDC at 650 mA
Field circuit rating: 24 V at 200 mA
AO 23 mA
AI 32 mA
DI 24 mA
DO 100 mA

Environmental Specifications

Ambient Temperature: 0 to 60℃
Shock: 10g ½ Sinewave for 11 msec
Vibration:  1mm Peak to Peak from 5 to 16Hz; 0.5g from 16 to 150Hz
Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity 5 to 95% Non-Condensing IP 20 Rating
Terminal: Block key position


Full system modularity:

The Traditional I/O subsystem was designed with your investment in mind. All components are
fully modular and may be installable under power. You add I/O interface carriers and I/O interfaces in groups of 4, 8, 16, or 32 channels as you need them. The modular design enables you to purchase the exact amount of I/O cards, 8-wide carriers, power/controllers, and 2-wide carriers you need and add more DeltaV I/O as your system grows.


Installation:

Save on wiring expenses by installing Classic Instrumentation in the field, near the actual field devices.
Mounting the controller with the I/O further reduces your wiring expenditures by eliminating the need for long runs of multi-cores. The integrated design of the Traditional I/O subsystem can eliminate the need for marshaling panels. This saves you even more in your total capital costs. The provision of in-line fuses and bussed power saves on installation costs compared with external fuses and power distribution.

Reduced system footprint:

The DeltaV system’s state-of-the-art form factor design of the I/O components enables you to mount the I/O interface carrier in a junction box in the field so you significantly reduce the footprint of your equipment and increase valuable control room space for other uses.


Product Description

I.The Traditional I/O subsystem includes:

II.I/O interface carrier (a DIN rail surface mounted) on which all I/O related components are installed.

III.Bulk AC to 24 VDC power supply for field devices.

IV.An I/O interface consisting of an I/O card and an I/O terminal block.

V.A variety of analog and discrete I/O cards enclosed in a common form factor that easily plugs into the I/O interface carrier.

VI.A variety of I/O terminal blocks mounted on the I/O interface carrier that can be pre-wired before I/O card installation.
