3BSE020508R1 Digital Input Module ABB DI801 24V 16 Ch 24VDC Small Equipment

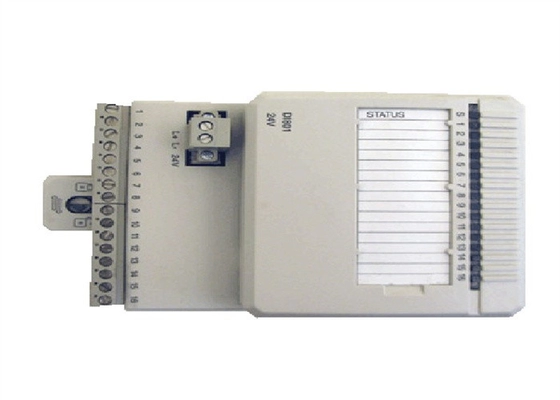

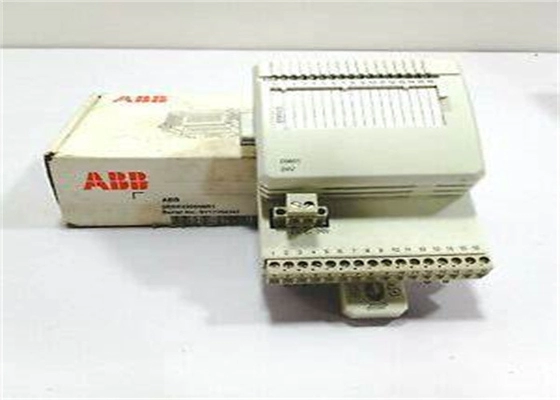

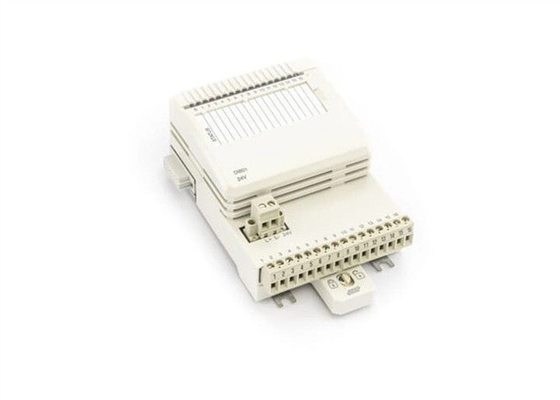

Name: 3BSE020508R1 Digital Input Module ABB DI801 24V 16 Ch 24VDC Small Equipment
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: DI801 3BSE020508R1
Price: 210.00 USD
Availability: InStock

Brand Name:	ABB
Model Number:	DI801 3BSE020508R1
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

Sweden

Packaging Details:

New original box

Highlight:

ABB DI801 digital input module

24VDC 16-channel input module

small equipment digital input module

Product Description

3BSE020508R1 Digital Input Module ABB DI801 24V 16 Ch 24VDC Small Equipment

DI801 | 3BSE020508R1 | Digital Input 24V 16 Ch | ABB 24VDC 0.24 kg 5. Small Equipment

General Information
Product ID:	3BSE020508R1
ABB Type Designation:	DI801
Catalog Description:	DI801 Digital Input 24V 16 ch
Long Description:	Current sink.

Additional Information
Medium Description:	Current sink.
Product Type:	I-O_Module

Ordering
HS Code:	853890-- Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36 or 85.37.- Other
Customs Tariff Number:	85389099

Dimensions
Product Net Depth / Length:	58.5 mm
Product Net Height:	102 mm
Product Net Width:	86.1 mm
Product Net Weight:	0.24 kg

Technical
Channel Type:	DIGITAL
Number of Input Channels:	16
Number of Output Channels:	N/A

Environmental
RoHS Status:	Following EU Directive 2011/65/EU
WEEE Category:	5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries:	0

Technical Specifications

ABB DI801 3BSE020508R1 Digital Input Module 24 V d.c. 1 x 16 ch, Rated isol. 50 V. Current sink. The input voltage range is 18 to 30 volt d.c. and the input current is 6 mA at 24 V. The inputs are in one isolated group with sixteen channels and channel number sixteen can be used for voltage supervision input in the group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier.
