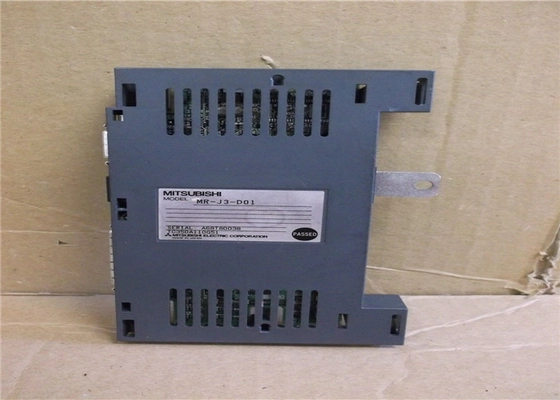

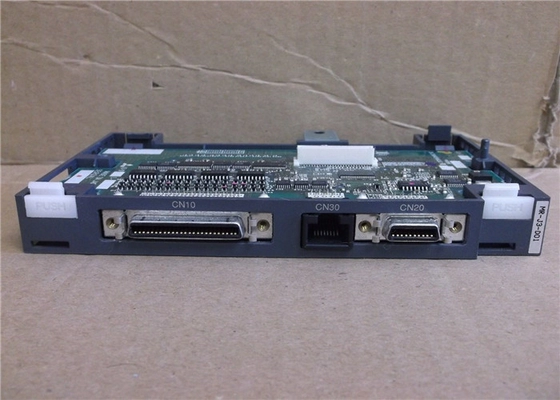

DEMO MR-J3-D01 Servo Motor Amplifier Digital I/O Module Interface Mitsubishi

Name: DEMO MR-J3-D01 Servo Motor Amplifier Digital I/O Module Interface Mitsubishi
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: MR-J3-D01
Price: 210.00 USD
Availability: InStock

Brand Name:	Mitsubishi
Model Number:	MR-J3-D01
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Supply Voltage:

24 V Dc

Current Rating:

800 MA

Packaging Details:

New original box

Highlight:

Mitsubishi servo motor amplifier

digital I/O module interface

MR-J3-D01 servo amplifier

Product Description

DEMO MR-J3-D01 Servo Motor Amplifier Digital I/O Module Interface Mitsubishi

Product Description

Industrial Servo Drives Mitsubishi MR-J3-500A AC SERVO Amplifier 5kW

Specification

EUA Stock No31007	Brand/Manufacturer	Manufacturer Part Number
Product typeServo Amplifier	Mitsubishi	MR-J3-D01
Supply voltage	24 V dc	Current rating:800 mA

Single Axis Motion Controller (OS included)

Model Number	MR-MQ100
Stocked Item	S
Power Supply	24VDC ±10% (Required Current Capacity 400mA)
Digital Inputs*	20 Inputs (AI = 2, AO = 2)
Digital Outputs*	18
Synchronous Encoder	Signal Type: A/B Phase Pulse Train Input Voltage-Output / Open Collector Type (5VDC): Up to 800kpps (After magnification by 4), up to 10m Differential-Output Type: Up to 4Mpps (after magnification by 4), up to 30m
Peripheral Interface	100 Mpbs/10Mpbs Ethernet (for programming and additional operation)
Number of Control Axes	1 axis
Operation Cycle	0.44ms
Servo Amplifier	MR-J3B Safety Servo Amplifier
Programming Language	Motion SFC, dedicated instruction, mechanical support language (SV22)
Memory Backup	Q6BAT
CAM Functions	Number of CAMs: Up to 256 CAM profiles may be stored internally Resolution Per Cycle: 256, 512, 1024, 2048 Stroke Resolution: 32767 Control Mode: Two-way CAM, fed CAM
Weight kg (lb)	0.7 (1.54)
Dimensions W x H x D (mm)	30 x 178 x 135

MITSUBISHI MR-J3-D01 Product Information

Brand: MITSUBISHI
Name: interface unit
Model: MR-J3-D01
Interface power supply: 24VDC plus or minus 10%
Digital input: 30 points, optocoupler isolation, drain/source type support
Digital output: 16 points, optocoupler isolation, drain/source type support
Analog input: 2 channels, 0 to plus or minus 10VDC (input impedance: 10~12k)
Analog output: 2 channels, 0 to plus or minus 12VDC

Technical Features

Servo motor series: medium inertia, small capacity
Rated output: 1.2kw
Rated speed: 1000r/min
Electromagnetic brake: incidental
Power supply: 200V
Stable driving of medium capacity and medium inertia type products
Through the optimization of structural design, to achieve the minimum length of the industry
High speed & high torque - Shorten the positioning time, achieve high-speed equipment
Reducing the electric torque ripple
Through the combination of the optimal number of the motor and the slot number, the torque ripple is greatly reduced
To further realize the smooth constant speed device
Improve the environmental performance of HG-SR, HG-JR series of products using IP67

For more information, visit: MR-J3-D01 Product Page

Additional Specifications

Servo motor series: low inertia, medium power
Rated output: 0.5kw
Rated speed: 2000r/min
Electromagnetic brake: No
Shaft end specification: Standard (straight axis)
Features: low inertia is widely used in general machinery
IP level: IP65

Application Examples

Roller type feeding equipment
Loading / unloading equipment
High frequency transmission system
Abundant motor product line can optimize the performance of the machine
Has a rich motor product line including a rotary servo motor, linear servo motor and direct drive motor
