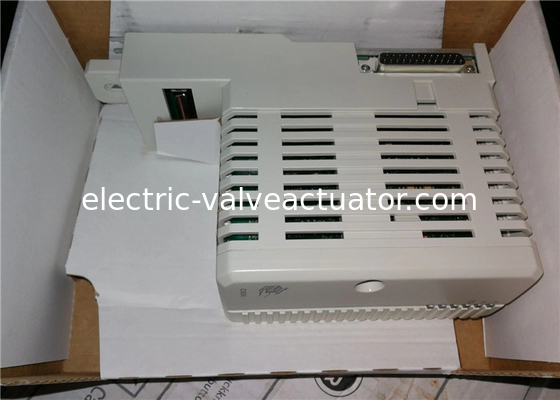

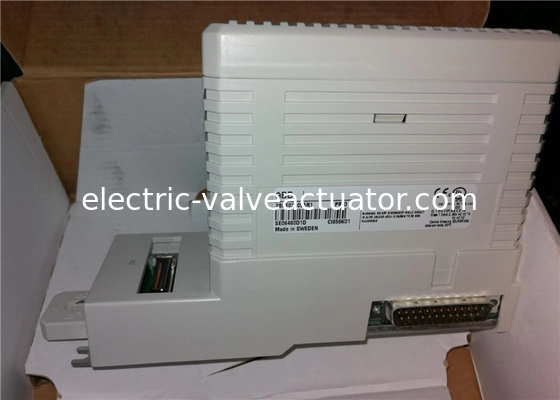

120 mA S100 I/O communication Digital I O Module CI856 3BSE026055R1

Name: 120 mA S100 I/O communication Digital I O Module CI856 3BSE026055R1
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: CI856 3BSE026055R1
Price: 210.00 USD
Availability: InStock

Brand Name:	ABB
Model Number:	CI856 3BSE026055R1
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

India

I/O Current, DC:

500mA

24 V Consumption Typ:

140 MA

Temperature, Operating:

0 To +55 °C

Temperature, Storage:

-25 To +70 °C

Packaging Details:

New original box

Highlight:

120 mA digital I/O module

S100 I/O communication module

CI856 ESP controller module

Product Description

120 mA S100 I/O communication Digital I O Module CI856 3BSE026055R1

Product Attributes

Attribute	Value
I/O Current, DC	500mA
24 V Consumption Typ	140 MA
Temperature, Operating	0 To +55 °C
Temperature, Storage	-25 To +70 °C

General Information

Protocol	ABB's S100 I/O
Article number	3BSE026055R1
Master or slave	Master
Transmission speed	-
Line redundancy	No
Module redundancy	No
Hot Swap	Yes
Used together with HI Controller	Yes

Detailed Data

Max units on CEX bus	12
Connector	Miniribbon (36-pin)
24 V consumption typ.	typ 120 mA

Environmental and Certification

Temperature, Operating	55 °C
Protection class	IP20 according to EN60529, IEC 529
CE- marking	Yes
RoHS compliance	EN 50581:2012
WEEE compliance	DIRECTIVE/2012/19/EU

Dimensions

Height	185 mm (7.3 in.)
Width	59 mm (2.3 in.)
Depth	127.5 mm (5.0 in.)
Weight (including base)	700 g (1.5 lbs)

S100 I/O communication is realized in AC 800M by communication interface CI856, which is connected to the CEX-Bus through a base plate. The baseplate, TP856, houses a ribbon connector connecting to bus extender boards in S100 I/O racks and provides a simple DIN-rail mounting. Up to five S100 I/O racks can be connected to one CI856 where each I/O rack can hold up to 20 I/O boards.

The CI856 is powered by the processor unit, via the CEX-Bus, and therefore does not require any additional external power source.
