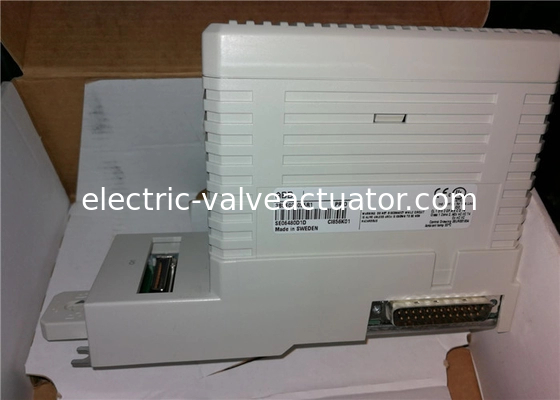

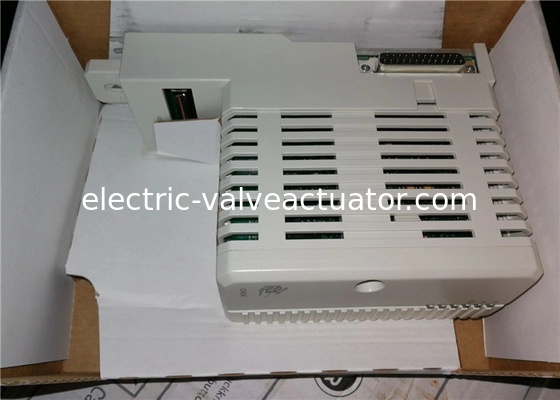

CI857 3BSE018144R1 Digital I O Module RJ-45 female (8-pin) 150 mA

Name: CI857 3BSE018144R1 Digital I O Module RJ-45 female (8-pin) 150 mA
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: CI857 3BSE018144R1
Price: 210.00 USD
Availability: InStock

Brand Name:	ABB
Model Number:	CI857 3BSE018144R1
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

India

24 V Consumption Typ:

140 MA

I/O Current, DC:

500mA

Temperature, Operating:

0 To +55 °C

Temperature, Storage:

-25 To +70 °C

Packaging Details:

New original box

Highlight:

CI857 digital I/O module RJ-45

8-pin ESP controller module

150 mA digital I/O module

Product Description

CI857 3BSE018144R1 Digital I/O Module RJ-45 female (8-pin) 150 mA

Product Attributes

Attribute	Value
24 V Consumption Typ	140 MA
I/O Current, DC	500mA
Temperature, Operating	0 To +55 °C
Temperature, Storage	-25 To +70 °C

General Information

Protocol	ABB's INSUM
Article number	3BSE018144R1
Master or slave	Master
Transmission speed	10 Mbit/s
Line redundancy	No
Module redundancy	No
Hot Swap	Yes
Used together with HI Controller	Yes

Detailed Data

Max units on CEX bus	6
Connector	RJ-45 female (8-pin)
24 V consumption typ.	typ 150 mA

INSUM integration into AC 800M supports higher functionality integration, multidrop configurations, time distribution and time stamping in the switchgear, and utilizes standard Ethernet technology for longer communication distances. The speed of this solution is typically 500 ms for one closed loop (indication from one motor until operation of another, assuming 250 ms cycle time in control execution).

AC 800M controllers access the INSUM functions through function blocks in the INSUM Communication Library. The CI857 is powered by the processor unit, via the CEX-Bus, and therefore does not require any additional external power source.

Features and Benefits

Maximum number of MCUs (or other INSUM devices) per AC 800M: - 256 MCUs (or other INSUM devices) per AC 800M with PM864 or PM866. - 128 MCUs (or other INSUM devices) per AC 800M with PM861.
Maximum 6 CI857 per AC 800M.
Maximum 128 MCUs (or other INSUM devices) per CI857.
Maximum 2 INSUM TCP/IP Gateways per CI857.
Maximum 128 INSUM devices per INSUM TCP/IP gateway.
Four LonWorks subnets per INSUM TCP/IP gateway.
Maximum 32 devices per LonWorks subnet.

Environmental and Certification

Temperature, Operating	55 °C
Protection class	IP20 according to EN60529, IEC 529
CE- marking	Yes
RoHS compliance	EN 50581:2012
WEEE compliance	DIRECTIVE/2012/19/EU

Dimensions

Height	185 mm (7.3 in.)
Width	59 mm (2.3 in.)
Depth	127.5 mm (5.0 in.)
Weight (including base)	700 g (1.5 lbs)
