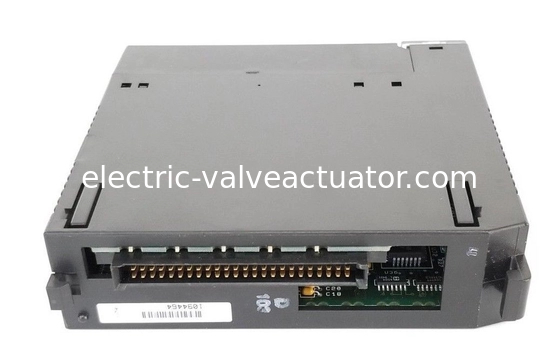

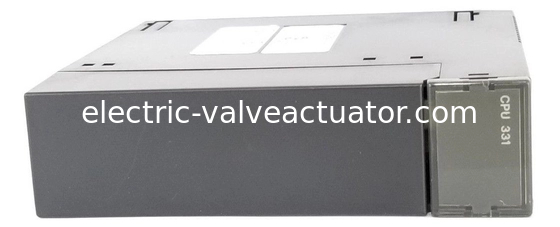

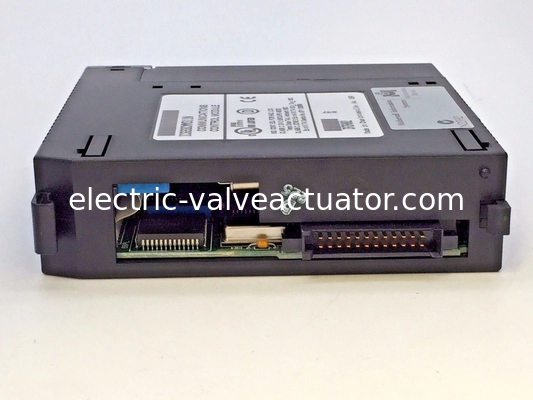

IC693CPU331 SINGLE SLOT CPU MODULE 16KBYTE USER PROGRAM MEMORY SPEED 10MH

Name: IC693CPU331 SINGLE SLOT CPU MODULE 16KBYTE USER PROGRAM MEMORY SPEED 10MH
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: IC693CPU331
Price: 210.00 USD
Availability: InStock

Brand Name:	GE
Model Number:	IC693CPU331
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Packaging Details:

New original box

Highlight:

IC693CPU331 single slot CPU module

ESP controller with 16KB memory

10MHz CPU module for ESP

Product Description

IC693CPU331 SINGLE SLOT CPU MODULE 16KBYTE USER PROGRAM MEMORY SPEED 10MH

Quick Details:

Model: IC693CPU331
Status: DISCONTINUED BY MANUFACTURER
Type: SINGLE SLOT CPU MODULE
Memory: 16KBYTE USER PROGRAM MEMORY
Speed: 10MH

Product Overview

The IC693CPU331 is a modular CPU that is part of the Series 90-30 PLC of GE Fanuc Automation. This CPU is equipped with a 80188 processor with processing speed of 10 MegaHertz. It is also capable of scanning 1K of Boolean logic in 0.4 milliseconds.

Technical Specifications

Memory: 16Kbytes user memory accommodating 512 Discrete input bits, 512 Discrete output bits, 128 Words of Analog input, and 64 Words of analog outputs
Internal Memory Structures: 1280 bits Discrete global memory, 1024 bits of internal coils, 256 bits of temporary coils, 128 bits of system status references, 2048 words of register memory, and 16 Words of System registers
Timers/Counters: 680 units available with Shift register instructions support
Special Features: Override function and battery backed clock
Memory Type: Default RAM with optional EPROM or EEPROM installation
Installation: Compatible with any CPU baseplate (5-slot or 10-slot), must be installed in slot 1
Power Consumption: 350 mA @ 5VDC bus voltage
I/O Expansion: Supports up to Four (4) expansion baseplates of Remote I/O baseplate

Additional Features

Operating Temperature: 32 to 140 degrees Celsius
Serial Port: One built-in port accessible through power supply PLC connector
Protocol Support: SNP slave and SNPX slave protocols (additional modules required for other protocols)
Compatibility: Works with AD693CMM301 module for additional serial ports and SLP (State Logic Processor) for multi-tasking control
