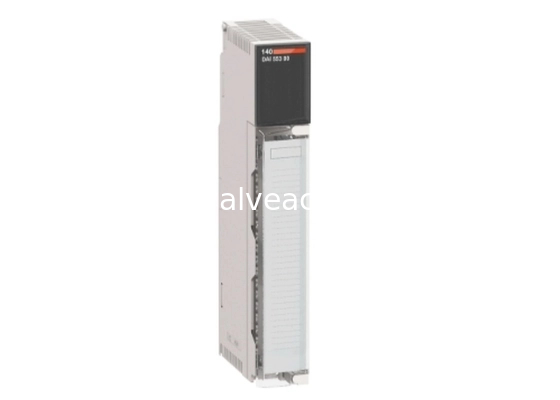

Schneider 140DAI54000 VAC Discrete Input Modules 115 V AC 16 Channels

Schneider 140DAI54000 VAC Discrete Input Modules 115 V AC 16 Channels

Schneider 140DAI54000 VAC Discrete Input Modules 115 V AC 16 Channels

Brand Name: Schneider
Model Number: 140DAI54000
MOQ: 1
Price: Negotiations
Detail Information
Product Description
Detail Information
Place of Origin:
France
Type:
I/O Modules
Leakage Current:
<= 2.1 MA
Dimensions:
16.3 Cm*4.5 Cm*31.2 Cm
Weight:
438.0 G
Packaging Details:
New original box
Highlight:

Schneider 115V AC input module

,

16-channel discrete input module

,

low voltage protection module with warranty

Product Description
Schneider 140DAI54000 VAC Discrete Input Modules 115 V AC 16 Channels
Product Attributes
Attribute Value
Type I/O Modules
Leakage Current <= 2.1 MA
Dimensions 16.3 Cm*4.5 Cm*31.2 Cm
Weight 438.0 G
Product Description

Schneider 140DAI54000 VAC Discrete Input Modules 115 V AC 16 Channels

Detailed Specifications
  • Part Number: 140DAI54000
  • Manufacturer: Schneider Electric
  • Type: I/O Modules
  • Model #: 140-DAI-540-00
  • Warranty: 2 Years
  • Module Format: Standard
  • Product Range: Modicon Quantum automation platform
  • Product/Component Type: VAC discrete input modules
  • Software Compatibility: Concept, ProWORX 32, Unity Pro
  • Number of Discrete Inputs: 16
  • Channel Groups: 16
  • Addressing Requirement: 1 input word
Electrical Specifications:
Discrete Input Voltage: 115 V AC
Input Current: ≤ 13.2 mA at 47...53 Hz / ≤ 11.1 mA at 57...63 Hz
Guaranteed Voltage for State 1: 85...132 V AC at 47...53 Hz / 79...132 V AC at 57...63 Hz
Guaranteed Voltage for State 0: 0...20 V AC at 47...53 Hz / 0...20 V AC at 57...63 Hz
Input Impedance: 14400 Ohms (capacitive) at 47...53 Hz / 12000 Ohms (capacitive) at 57...63 Hz
Network Frequency Limits: 47...63 Hz
Leakage Current: ≤ 2.1 mA
Absolute Maximum Input: 200 V for 1 cycle / 156 V for 10 seconds / 132 V continuously
Performance Specifications:
Response Time: 7.3...12.3 ms (On-Off) / 4.9...0.75 ms per line cycle (Off-On)
Isolation Between Channels: 1780 Vrms for 1 minute
Isolation Between Channels and Bus: 1780 Vrms for 1 minute
Bus Current Requirement: 180 mA
Power Dissipation: ≤ 5.5 W
Indicators:
16 green LEDs (input status)
1 red LED (external fault detected, marked "F")
1 green LED (bus communication active)
Certification:
CE
