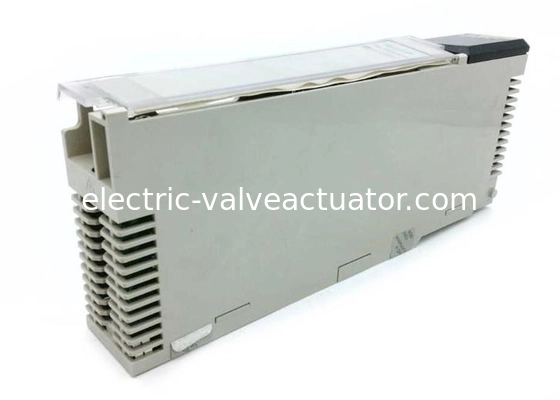

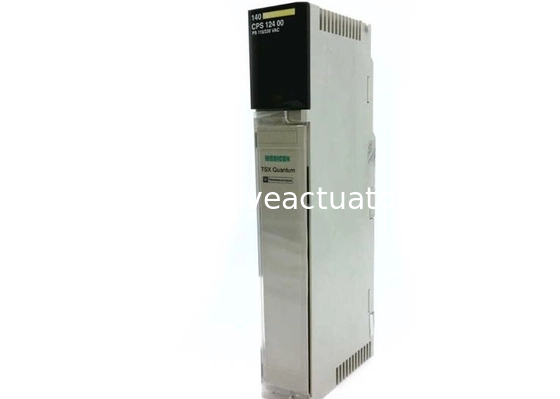

Schneider 140CPS12400 Power Supply Module Modicon Quantum Redundant 8 AMP

Schneider 140CPS12400 Power Supply Module Modicon Quantum Redundant 8 AMP

Schneider 140CPS12400 Power Supply Module Modicon Quantum Redundant 8 AMP

Brand Name: Schneider
Model Number: 140CPS12400
MOQ: 1
Price: Negotiations
Detail Information
Product Description
Detail Information
Place of Origin:
France
Category:
Power Supplies
Subcategory:
Power Supply
Inrush Current:
19 A 230 V 38 A 115 V
Packaging Details:
New original box
Highlight:

Schneider 140CPS12400 power supply module

,

Modicon Quantum redundant power supply

,

8 AMP low voltage protection module

Product Description
Schneider 140CPS12400 Power Supply Module Modicon Quantum Redundant 8 AMP
Product Specifications
Attribute Value
Category Power Supplies
Subcategory Power Supply
Inrush Current 19 A 230 V / 38 A 115 V
Product Details

Schneider 140CPS12400 Power Supply Module Modicon Quantum Redundant 8 AMP

Technical Specifications
  • Product Range: Modicon Quantum automation platform
  • Product Type: Power supply module
  • Power Supply Type: Redundant, Complementary
  • Input Voltage: 115 V AC (93...138 V) at 47…63 Hz / 230 V AC (170...276 V)
  • Input Current: 1100 mA at 115 V / 600 mA at 230 V
  • Inrush Current: 19 A at 230 V / 38 A at 115 V
  • Rated Power: 130 VA
  • Fuse Rating: 2 A, slow-blow
  • Harmonic Distortion: ≤ 10% of fundamental RMS value
  • Output Voltage: 5.1 V DC
  • Output Current: 8 A at 140 °F (60 °C) in redundant mode
Output Protection
  • Overvoltage: Internal
  • Overload: Internal
  • Power Dissipation: 6 + (1.5 × Iout) where Iout is in amperes
  • Module Format: Standard
  • Weight: 1.43 lb (US) (0.65 kg)
Electrical Resistance
  • Electrostatic discharge: 4 kV contact (IEC 801-2); 8 kV air (IEC 801-2)
  • Electromagnetic fields: 9.1 V/m (10 V/m) at 80…2000 MHz (IEC 801-3)
Environmental Specifications
  • Operating Temperature: 32…140 °F (0…60 °C)
  • Storage Temperature: -40…185 °F (-40…85 °C)
  • Relative Humidity: 95% (non-condensing)
  • Operating Altitude: ≤ 16404.2 ft (5000 m)
Ordering & Shipping Details
  • Category: US1PC2118155
  • Discount Schedule: PC21
  • GTIN: 3595861126657
  • Dimensions: 5.0 cm × 16.5 cm × 31.5 cm
  • Package Weight: 27.4 oz (778.0 g)
