AI845 3BSE023675R1 ABB Current Limited Transmitter Power Distribution Analog Input

Name: AI845 3BSE023675R1 ABB Current Limited Transmitter Power Distribution Analog Input
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: AI845 3BSE023675R1
Price: 210.00 USD
Availability: InStock

Brand Name:	ABB
Model Number:	AI845 3BSE023675R1
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Type:

AI845 Analog Input

Number Of Channels:

I/O Current, DC:

20 MA

Packaging Details:

New original box

Highlight:

ABB current limited transmitter

power distribution analog input

low voltage protection transmitter

Product Description

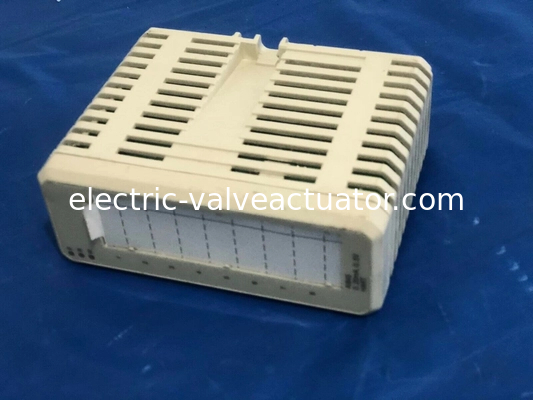

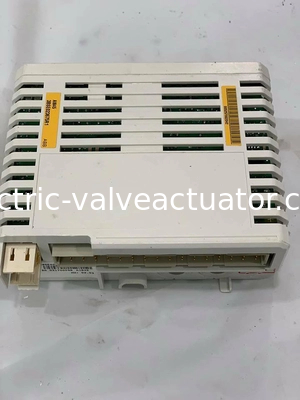

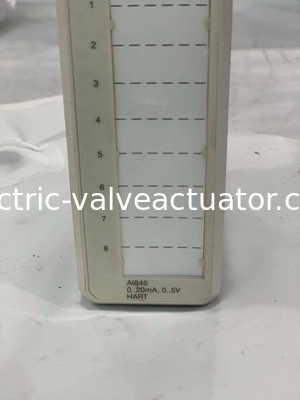

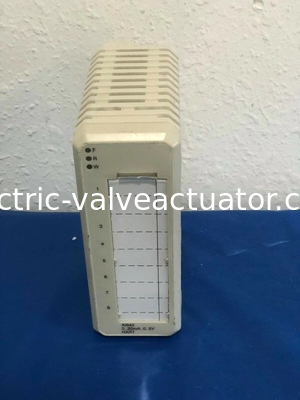

AI845 3BSE023675R1 ABB Current Limited Transmitter Power Distribution Analog Input

Product Specifications

Attribute	Value
Product Type	AI845 Analog Input
Number Of Channels	8
I/O Current, DC	20 MA

Product Description

AI845 3BSE023675R1 ABB Current Limited Transmitter Power Distribution Analog Input

The AI845 Analog Input Module is suitable for both single and redundant applications. It comes with 8 channels, each of which can function as either a voltage or current input when paired with MTU TU844 or TU845. When using other MTUs, all channels are configured as either voltage or current inputs uniformly.

The voltage and current inputs can endure an overvoltage or undervoltage of at least 11 V DC. For voltage input, the input resistance exceeds 10 MΩ, while for current input, the input resistance is 250 Ω.

This module distributes the external HART-compatible transmitter power supply to each channel, simplifying the connection process for supplying power to 2-wire or 3-wire transmitters. The transmitter power is monitored and features current limiting.

Features and Benefits

8 channels supporting 0...20 mA, 4...20 mA, 0...5 V, or 1...5 V DC, with single-ended unipolar inputs
Operable in single or redundant mode
A group of 8 channels isolated from the ground
12-bit resolution
Per-channel current-limited transmitter supply
Advanced on-board diagnostic capabilities
HART pass-through communication functionality

If you have any questions, please contact us.
