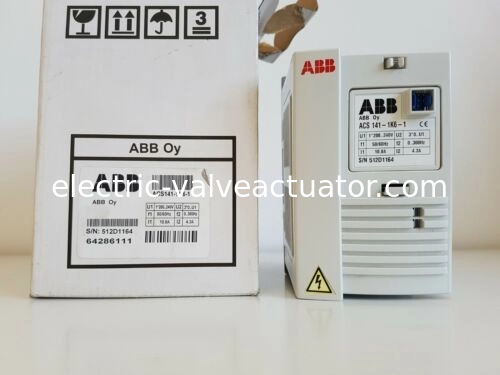

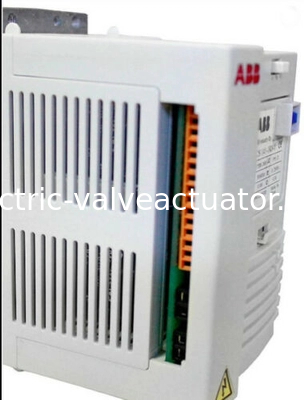

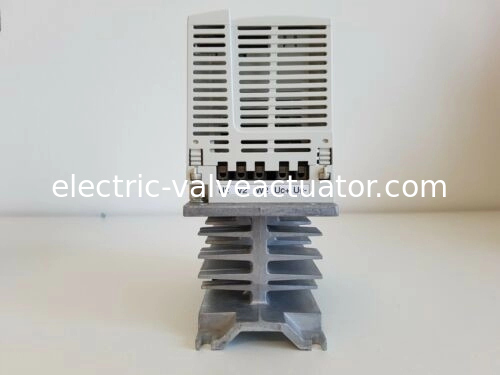

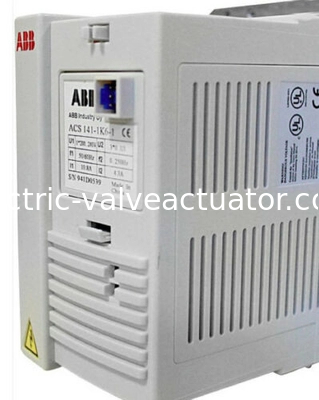

ACS1411K61U ABB AC Drive TYPE ACS140 Frequency Converter Frame Size B

Brand Name:	ABB
Model Number:	ACS141-1K6-1
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

China

Category:

Drives

Packaging Details:

New original box

Highlight:

ABB ACS140 frequency converter

ACS1411K61U AC drive

Frame Size B frequency converter

Product Description

ACS1411K61U ABB AC Drive TYPE ACS140 Frequency Converter Frame Size B

Product Information

Category	Drives

Description

ACS1411K61U ABB AC Drive TYPE ACS140 Frequency Converter Frame Size B

ACS1411K61
AC DRIVE
TYPE ACS140 FREQUENCY CONVERTER

ABB Drives ACS 100 AC Frequency Inverter for 0.75kW (1HP) 230V 3 Ph motor in VxF control to 4.3A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.

Specifications

Frame Size: B - 80mm Wide x 186mm Deep x 146mm high. IP20 case.

Overload: 150% x 60seconds.

Speed Control Range: 0/300Hz.

Braking: None.

Features: Removable Keypad, 2 x Analogue Inputs, 3 Digital Inputs, 1 Relay Contact set.

EMC Filters: No Internal EMC Filters (External Option).

Input Current: 10.8A.

Input Voltage: 200/240V single phase +-10% at 50/60Hz.

Mounting: Wall mount in clean environment or cubicle mount.

Temperature Rating: Rated at 40C Ambient.

Ventilation Space: Above and below - 25mm. Sides - 0mm.

Heat Loss: At max output - 44W.

Mounting Options: Onto symmetrical DIN rail or use the screw fixings for rear mounting.
