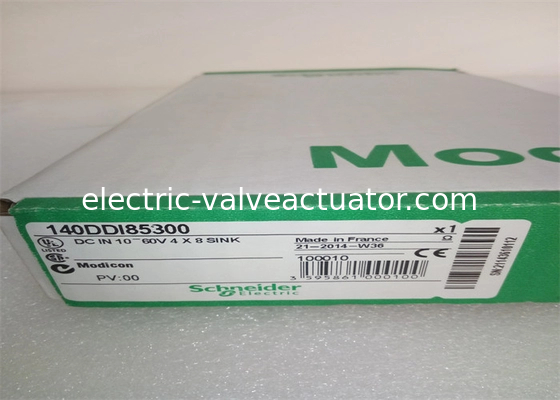

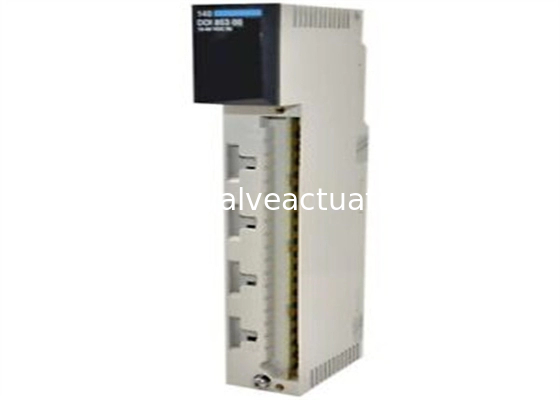

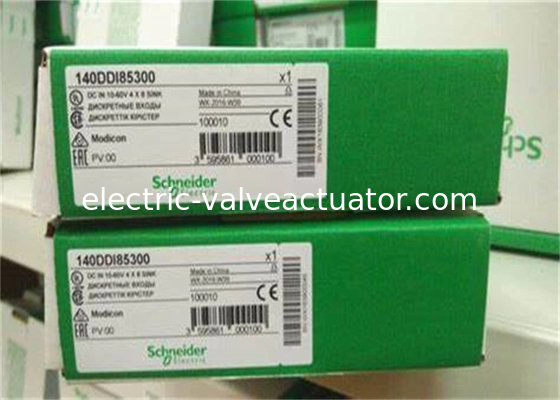

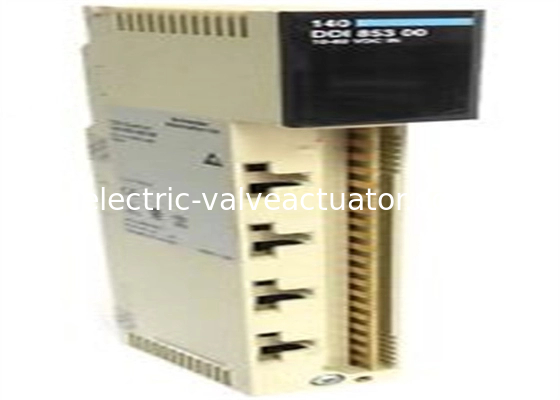

Schneider MODICON Quantum Discrete DC Input Module 140DDI85300 Modicon Quantum PLC

Name: Schneider MODICON Quantum Discrete DC Input Module 140DDI85300 Modicon Quantum PLC
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 140DDI85300
Price: 210.00 USD
Availability: InStock

Brand Name:	Schneider
Model Number:	140DDI85300
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

France

Packaging Details:

New original box

Highlight:

Modicon Quantum PLC input module

Schneider discrete DC input module

140DDI85300 PLC module with warranty

Product Description

Schneider MODICON Quantum Discrete DC Input Module 140DDI85300 Modicon Quantum PLC

Quick Details

Manufacturer: SCHNEIDER ELECTRIC
Series: MODICON
Model: 140-DDI-853-00 / 140DDI85300
Type: INPUT MODULE
Points: 32 POINT
Voltage: 10/60 VDC
Configuration: 4 GROUPS SINK
Warranty: One Year Warranty

Specifications

Manufacturer	Schneider Electric
Series	Modicon Quantum
Module format	Standard
Product type	DC discrete input modules
Discrete input number	32
Group of channels	4
Logic input	Positive (sink)
Input voltage limits	10...60 V
Input voltage	60 V 1...5 mA DC 48 V 2...15 mA DC 24 V 6...30 mA DC 12 V 5...10 mA DC
Voltage state 1 guaranteed	9...12 V 12 V +/- 5 % 45...60 V 60 V +/- 20 % 34...48 V 48 V +/- 20 % 11...24 V 24 V +/- 20 %
Voltage state 0 guaranteed	0...5 V 24 V +/- 20 % 0...12.5 V 60 V +/- 20 % 0...10 V 48 V +/- 20 % 0...1.8 V 12 V +/- 5 %
Absolute maximum voltage	75 V
Addressing requirement	2 input words
Response time	4 ms from state 1 to state 0 4 ms from state 0 to state 1
Switching frequency	<= 100 Hz
Isolation between group and bus	2500 Vrms DC for 1 minute
Isolation between group	700 Vrms DC for 1 minute
Power dissipation	1 W + (0.62 x number of points on)
Marking	CE
Local signalling	32 LEDs green input status 1 LED red external fault detected (F) 1 LED green bus communication is present (Active)
Bus current requirement	300 mA

Quantum PLC Module Features

The Quantum PLC module uses modern large-scale integrated circuit technology and is manufactured through strict production processes. The internal circuit incorporates advanced anti-interference technology, resulting in exceptionally high reliability.

Hardware fault self-detection function with timely alarm information
Programmable peripheral component fault self-diagnosis program for comprehensive system protection
Hot-swappable modules for maintenance without system downtime
LED status indicators for quick visual monitoring of CPU and I/O template channels
Complete supporting facilities with comprehensive functions and strong applicability
Advanced dual-system hot-standby configuration for critical applications
Redundant power supply and remote I/O options
Dual Ethernet support for reliable communication
Fast switching (within one PLC scan cycle) for uninterrupted operation

Applications

Our products are widely used in:

CNC machinery
Metallurgy, petroleum and natural gas
Petrochemical and chemical industries
Paper printing and textile printing/dyeing
Machinery and electronic manufacturing
Automobile manufacturing and tobacco
Plastic machinery
Power generation and distribution
Water treatment/environmental protection
Municipal engineering and boiler heating
Energy transmission and distribution
