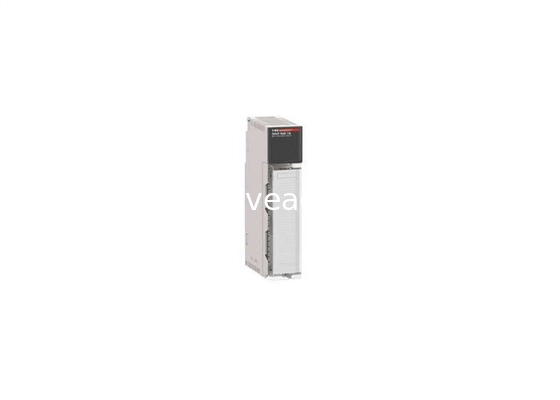

Schneider Electric 140DA085300 24VAC Output Module Modicon Quantum PLC

Brand Name:	Schneider
Model Number:	140DAO85300
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

France

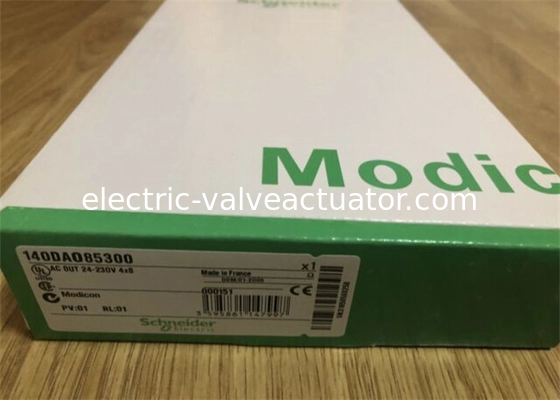

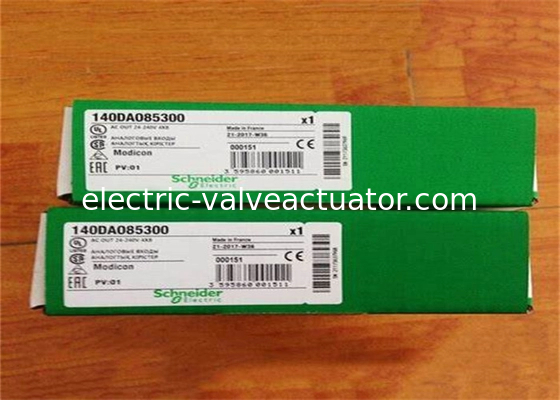

Packaging Details:

New original box

Highlight:

Schneider Electric 24VAC output module

Modicon Quantum PLC module

Low voltage protection output module

Product Description

Schneider Electric 140DA085300 24VAC Output Module Modicon Quantum PLC

Quick Details

SCHNEIDER ELECTRIC
MODICON
140-DAO-853-00
140DAO85300
OUTPUT MODULE
24-230VAC

One Year Warranty

Specifications

Manufacturer	Schneider Electric
Series	Modicon Quantum
Module format	Standard
Product type	AC discrete output modules
Discrete output number	32
Group of channels	4 groups of 8 channels
Supply frequency	47...63 Hz
Voltage drop	1.5 V
Discrete output voltage	20...253 V AC
Addressing requirement	2 output words
Absolute maximum output	300 Vrms for 10 s AC 400 Vrms 1 cycle AC
Maximum load current	0.88 mA 230 V off state leakage per output 1 A rms 20...253 V per output 16 A rms per module 4 A rms per group
Surge current	<= 2.5 A during 1 ms
DV/Dt	400 V/ms
Response time	<= 0.5 ms at state 0 to state 1 <= 0.5 ms at state 1 to state 0
Protection type	Internal output protection by 4 A fuse Internal by RC filter
Power dissipation	1.60 + (1.0 V x total module load current)
Marking	CE
Local signalling	1 LED green bus communication is present (Active) 1 LED red external fault detected (F) 32 LEDs green input status
Bus current requirement	320 mA

Quantum PLC Module Features

Quantum PLC module uses modern large-scale integrated circuit technology, manufactured through strict production processes. The internal circuit incorporates advanced anti-interference technology for high reliability. Quantum PLC includes hardware fault self-detection with timely alarm notification. It can be programmed in the Concept of peripheral components for fault self-diagnosis, providing protection for the entire system beyond just the PLC circuit.

All modules support hot swapping without system downtime, reducing maintenance workload. LED status indicators provide visual feedback for CPU and I/O template channel status, enabling quick maintenance. Quantum PLC offers complete supporting facilities with comprehensive functions and strong applicability.

Critical systems can implement dual-machine hot backup, redundant power supply, redundant remote I/O, and dual Ethernet for continuous safe operation. The advanced hot-backup system features simple configuration and operation - two identical modules operate in primary/secondary configuration. The primary CPU handles program execution while updating the secondary CPU status. If the primary fails, the secondary immediately takes over within one PLC scan cycle without affecting logic operations.

Applications

Widely used in CNC machinery, metallurgy, oil & gas, petrochemical, chemical, paper printing, textile printing, machinery manufacturing, electronics manufacturing, automotive manufacturing, tobacco, plastics machinery, power generation, water treatment/environmental protection, municipal engineering, boiler heating, energy, and power transmission/distribution industries.
