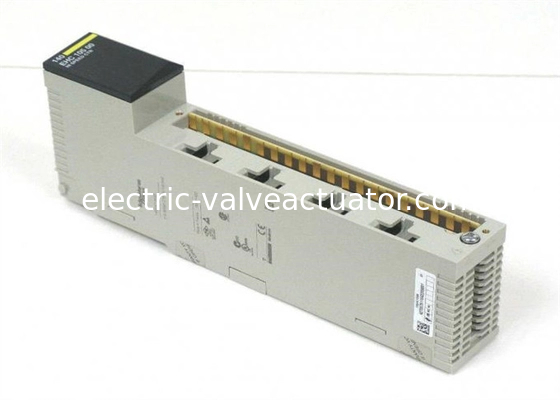

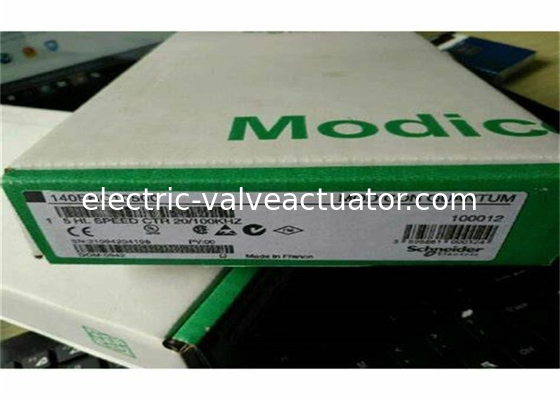

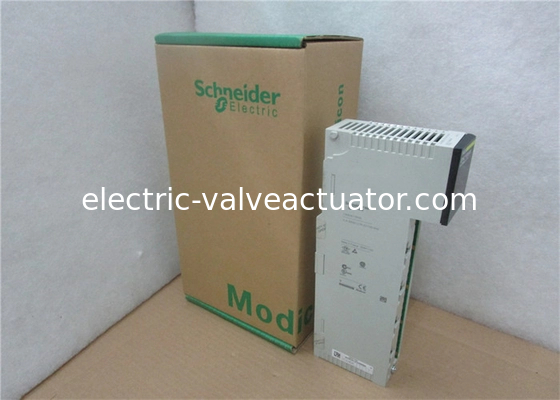

Schneider Electric140EHC10500 BRAND NEW FACTORY SEALED Modicon High Speed Ctr

Name: Schneider Electric140EHC10500 BRAND NEW FACTORY SEALED Modicon High Speed Ctr
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 140EHC10500
Price: 210.00 USD
Availability: InStock

Brand Name:	Schneider
Model Number:	140EHC10500
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

France

Counting Input Voltage:

30 V DC Max

Packaging Details:

New original box

Highlight:

Schneider Electric Modicon high speed controller

Modicon controller with warranty

Low voltage protection speed controller

Product Description

Schneider Electric 140EHC10500 BRAND NEW FACTORY SEALED Modicon High Speed Ctr

Key Attributes

Counting Input Voltage	30 V DC Max

Quick Details

EEC AEG
140EHC10500
COUNTER
One Year Warranty

Specifications

Manufacturer	Schneider Electric
Series	Modicon Quantum
Module format	Standard
Product type	High-speed counter module
Number of channels	5
Number of inputs	8
Addressing requirement	12 input words \| 12 output words
Data format	65535 dec 16 bits \| 2147483647 dec 32 bits
Counting input current	7 mA
Counting input type	Discrete incremental counter
Counting frequency	100000 Hz
Duty cycle	1/1 counter input
Discrete input current	5 mA
Operating threshold	3...5 V single ended mode 24 V REF DC at state off \| 15...30 V single ended mode 24 V REF DC at state on
Discrete output number	8
Discrete output type	Field Effect Transistor (FET)
Discrete output voltage	20...30 V switch on DC \| 0 V switch off DC
Load current	0.21 A
Leakage current	<= 0.1 mA state off
Voltage drop	1.25 V state on
Isolation between channels and bus	500 Vrms for 60 s
Fault type	Loss of output field power
Output short-circuit protection	Internal
Power dissipation	>= 6 W
Bus current requirement	250 mA
External power requirement	19.2...30 V
Rack type	Distributed \| Local \| Remote
Local signalling	5 LEDs channel status
Marking	CE
Current consumption	<= 1140 mA 24 V DC external power supply

Quantum PLC Module Features

Quantum PLC module uses modern large-scale integrated circuit technology, manufactured through strict production processes with advanced anti-interference technology for high reliability. It features hardware fault self-detection with timely alarm notifications.

The system can be programmed with peripheral component fault self-diagnosis, providing comprehensive protection. All modules support hot-swapping without system shutdown, reducing maintenance workload. LED status indicators provide visual monitoring of CPU and I/O template channels for quick maintenance.

Quantum PLC offers complete functionality with strong applicability. Critical systems feature dual-machine hot backup, redundant power supply, redundant remote I/O, and dual Ethernet for continuous operation. The advanced hot-standby system uses identical primary/secondary modules that automatically switch during failures without affecting logic operations.

Applications: CNC machinery, metallurgy, oil & gas, petrochemical, chemical, paper printing, textile, machinery manufacturing, electronics, automotive, tobacco, plastics, power generation, water treatment, municipal engineering, boiler systems, energy, and transmission/distribution industries.
