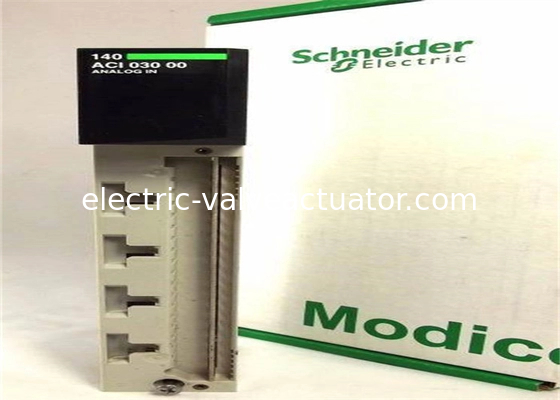

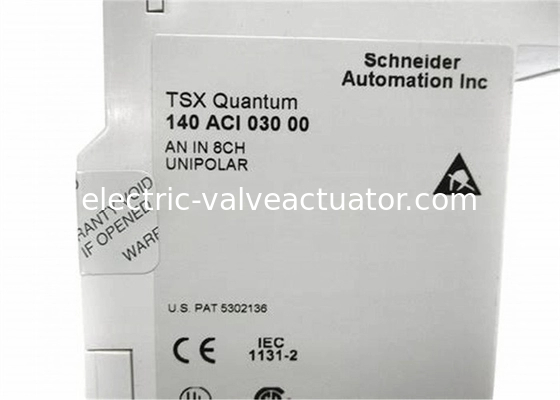

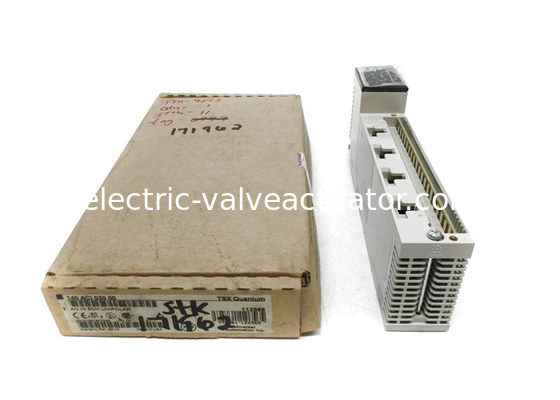

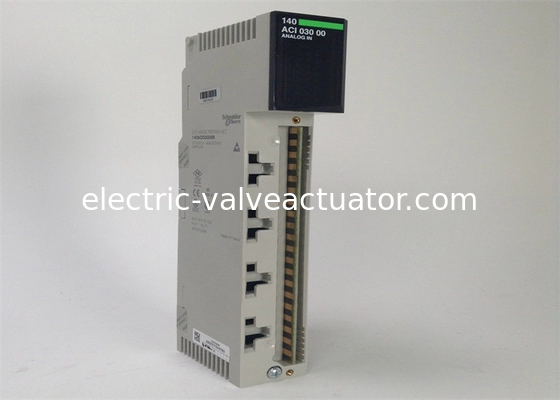

Schneider Modicon Quantum PLC 140ACI03000 INPUT MODULE CHNEIDER 8POINT

Name: Schneider Modicon Quantum PLC 140ACI03000 INPUT MODULE CHNEIDER 8POINT
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 140ACI03000
Price: 210.00 USD
Availability: InStock

Brand Name:	Schneider
Model Number:	140ACI03000
MOQ:	1
Price:	Negotiation

Detail Information

Product Description

Detail Information

Place of Origin:

France

Packaging Details:

New original box

Highlight:

Schneider Modicon Quantum PLC module

8-point input module Schneider

Modicon Quantum PLC with warranty

Product Description

Schneider Modicon Quantum PLC 140ACI03000 INPUT MODULE CHNEIDER 8POINT

Quick Details

SCHNEIDER ELECTRIC
MODICON
140-ACI-030-00
140ACI03000
INPUT MODULE
ANALOG
8POINT

One Year Warranty

Specification

Manufacturer	Schneider Electric
Series	Modicon Quantum
Color	Blue
Type of filter	Single pole low pass - 3 dB at 15 Hz +/- 20 %
Analogue input number	8
Input type	Differential
Addressing requirement	9 input words
Analogue input resolution	12 bits
Linear measuring range	1...5 V \| 4...20 mA
Absolute maximum input	50 V DC \| 25 mA
Input impedance	250 Ohm current +/- 0.01 % \| > 20 MOhm voltage
Absolute accuracy error	+/- 0.1 % of full scale maximum \| +/- 0.05 % of full scale
Linearity error	+/- 0.04 %
Accuracy drift according to temperature	<= 0.005 % of full scale/°C \| +/- 0.0025 % of full scale/°C
Common mode rejection	> -72 dB 60 Hz
Isolation between channels and bus	3000 V DC for 60 s \| 1000 V DC
Isolation between channels	30 V DC
Update time	5 ms
Fault type	Undervoltage range 1...5 V \| Broken wire 4...20 mA
Marking	CE
Local signalling	8 LEDs red channel fault \| 8 LEDs green channel is turned on \| 1 LED red external fault \| 1 LED green bus communication is present (Active)
Bus current requirement	240 mA
Power dissipation in W	2 W

Quantum PLC Module Overview

The Quantum PLC module uses modern large-scale integrated circuit technology and is manufactured through strict production processes. The internal circuit incorporates advanced anti-interference technology, resulting in exceptionally high reliability. The Quantum PLC features hardware fault self-detection capability, enabling timely alarm notifications for any failures.

The system can be programmed with a peripheral component fault self-diagnosis program in Concept, providing fault self-diagnosis protection for both the PLC circuit and connected equipment. This comprehensive approach ensures the entire system maintains high reliability. All modules support hot swapping without requiring system shutdown, reducing maintenance workload and simplifying operations.

LED status indicators provide visual feedback on the CPU and I/O template channel status, facilitating quick maintenance. The Quantum PLC offers complete supporting facilities with comprehensive functionality and strong applicability. Critical systems such as river water intake and condensate fine treatment utilize dual-machine hot backup, redundant power supplies, redundant remote I/O, and dual Ethernet connections to ensure safe, continuous operation.

The advanced two-machine hot-standby system features simple configuration and convenient operation. Two identically configured modules operate in primary/secondary mode. Normally, the host CPU handles program operations and I/O communication while updating the standby CPU's status and data through the hot standby module. The standby machine monitors the host's status and immediately takes over (within one PLC scan cycle) if the host fails, ensuring uninterrupted logic operations.

Applications

Our products are widely used in CNC machinery, metallurgy, petroleum and natural gas, petrochemical, chemical, paper printing, textile printing and dyeing, machinery, electronic manufacturing, automobile manufacturing, tobacco, plastic machinery, electric power, water conservancy, water treatment/environmental protection, municipal engineering, boiler heating, energy, and transmission and distribution industries.
