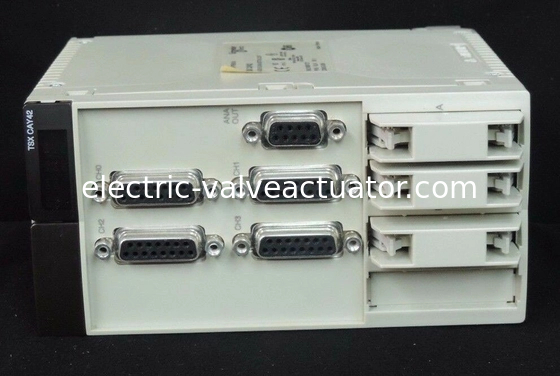

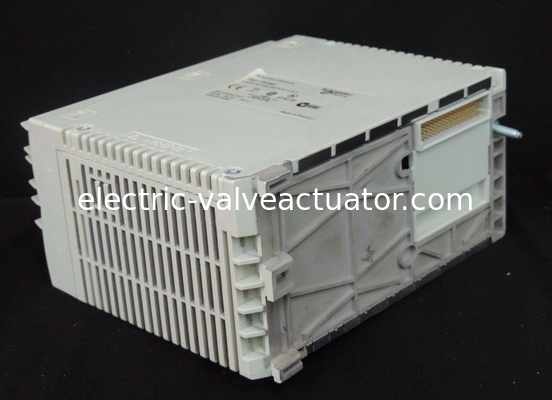

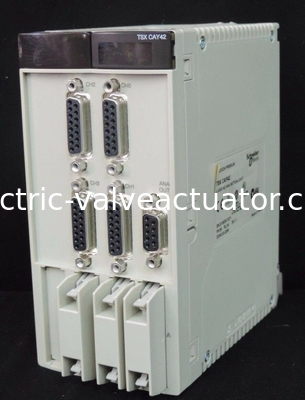

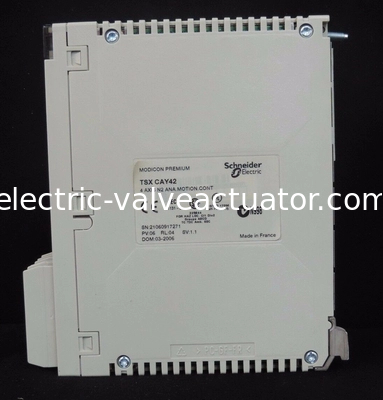

Schneider Electric TSXCAY42 Motion control modules for servomotors 8 ms to 10 s 4 axis

Name: Schneider Electric TSXCAY42 Motion control modules for servomotors 8 ms to 10 s 4 axis
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: TSXCAY42
Price: 210.00 USD
Availability: InStock

Brand Name:	Schneider
Model Number:	TSXCAY42
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

France

Function:

Servo Drive Offset Correction

I/O Modularity:

4 Axes

Packaging Details:

New original box

Highlight:

Schneider Electric motion control module

servomotor control module 4 axis

TSXCAY42 motion module 8ms

Product Description

Schneider Electric TSXCAY42 Motion Control Modules for Servomotors

Key Attributes

Function	Servo Drive Offset Correction
I/O Modularity	4 Axes

Product Overview

Main Range of Product

Modicon Premium Automation platform

Product Type

Motion control modules

Application

For servo motors

Technical Specifications

Servo Loop Type

Proportional to overshoot compensation and gain switching 4 ms

Complementary Speed Profile Path

Trapezoidal or parabolic

Resolution

≥ 0.5 position units per point ≤ 1000 position units per point

Length of Axis

256...32000000 P

Acquisition Speed

≥ 54000 points/mn ≤ 270000 points/mn

Acceleration Time

8 ms...10 s

System Checks

Presence of voltage/sensor feedback counter input
Consistency of commands
Encoder coupling, servo drive present, emergency stop
Proper execution of movement
Sensor power supply
Validity of parameters

Operating Characteristics

Operating Mode

Direct drive mode, OFF, Automatic, Manual, FOLLOWER

Type of Axis

Following axis dynamic ratio, Limited axis, Infinite axis

Power Dissipation

10...17 W

Net Weight

0.61 kg

Environmental Specifications

Operating Temperature

0...60 °C

Storage Temperature

-25...70 °C

Relative Humidity

5...95% without condensation

Operating Altitude

≤ 2000 m
