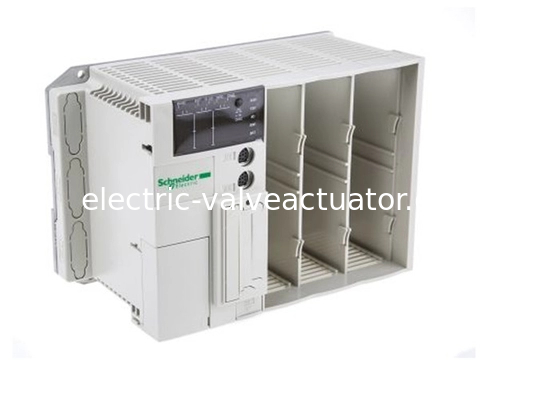

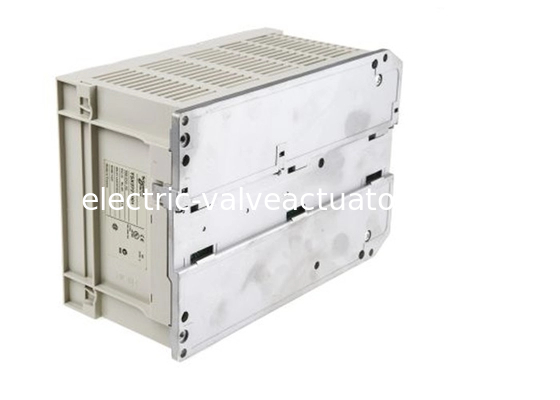

Schneider Electric TSX3721101 Modicon TSX Micro automation platform 37 21 22 PLC

Name: Schneider Electric TSX3721101 Modicon TSX Micro automation platform 37 21 22 PLC
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: TSX3721101
Price: 210.00 USD
Availability: InStock

Brand Name:	Schneider
Model Number:	TSX3721101
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

France

Input Current:

2mA 60A

Packaging Details:

New original box

Highlight:

Schneider Electric Modicon TSX PLC

Modicon TSX Micro automation platform

Low Voltage Protection PLC with warranty

Product Description

Schneider Electric TSX3721101 Modicon TSX Micro automation platform 37 21 22 PLC

Key Specifications

Attribute	Value
Input Current	2mA 60A

Product Details

Main range of product: Modicon TSX Micro automation platform

Product type: Modular base controller

Primary voltage: 100...240 V 90…264 V AC

Input current: 2 mA 60 A

Immunity to microbreaks: 20 ms

Output current: 0.5 A

Complementary slots: 3

Integrated connection: 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s, 1 Modbus Modbus RTU 19.2 kbit/s

Realtime clock: Included

Memory Specifications

Flash memory: 15 Kwords data

Internal RAM: 20 Kwords data

Internal RAM (with PCMCIA card): 128 Kwords program and data

Data storage: 128 Kwords data storage

Maximum object areas: 128 %KWi constant words, 256 %Mi, 1 %MWi internal words

Performance Specifications

Execution time (Boolean): 0.13 µs without PCMCIA card, 0.19 µs with PCMCIA card

Execution time (REAL floating): 4.5 µs with/without PCMCIA card

1 Kinstruction time (100% Boolean): 5.88 without PCMCIA card, 4 with PCMCIA card

1 Kinstruction time (mixed): 0.27 without PCMCIA card, 0.266 with PCMCIA card

Application structure: 16 event tasks, 1 master task, 1 fast task

System overhead: 1.6 ms for master task

Physical & Environmental Specifications

Protection type: Overload protection, Short-circuit

Secondary power: 16 W

Operating temperature: 0…60 °C

Storage temperature: -25…70 °C

Humidity: 10…95% without condensation (operation), 5…95% without condensation (operation)

Operating altitude: 0...2000 m

Dimensions (W×H×D): 341.4 × 151 × 152 mm

Weight: 1.72 kg

Compliance & Sustainability

REACh Regulation: REACh Declaration

EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration

Mercury free: Yes

RoHS exemption: Yes

China RoHS: China RoHS declaration

WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
