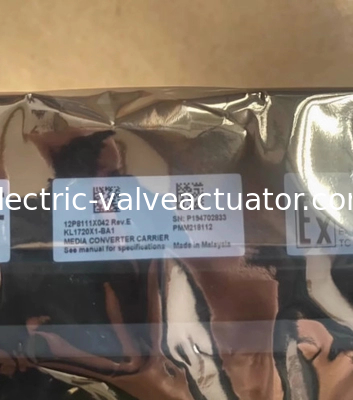

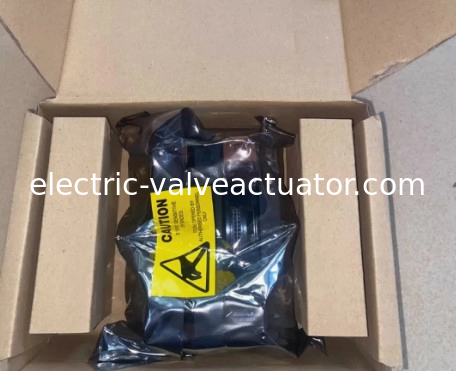

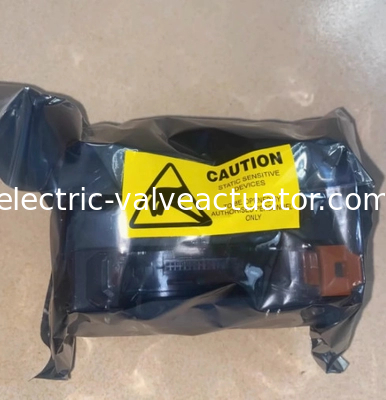

EMERSON KL1720X1-BA1 1-port Multi Mode Media Converter

• Facilitates deployment of Electronic Marshalling in the field
• Supports both single-mode and multi-mode fiber optic cable
• Redundant power supply connections
• Hazardous area certified models available
• Includes wire terminals for easy installation
• Works with both DeltaV™ and DeltaV SIS

The DeltaV™ Media Converters provides an easy way to connect remote field enclosures with CHARM I/O Cards (CIOC) to the DeltaV Control Network. Fiber Optic cable can go longer distances than copper Ethernet cables and these media converters allow you to extend the DeltaV Control Network distances up to 15km.

The media converters change the means of communication from copper to fiber Ethernet and vice versa and facilitates easy connectivity using both Single-Mode and Multi-Mode Fiber Optic cable.

There are three different models of DeltaV Media Converters available with the following port options:

• Single-Mode Media Converter with one fiber port and one copper port
• Multi-Mode Media Converter with one fiber port and one copper port
• 2-Port SFP Media Converter with one copper port and 2 SFP cages that can be used for copper or fiber SFP modules (for safe area installation only)

All three DeltaV Media Converters come in a Dual Media Converter Assembly with a Dual Media Converter Carrier and two media converters. This facilitates easy deployment for redundant DeltaV Control Networks.

Facilitates deployment of Electronic Marshalling in the field: DeltaV with Electronic Marshalling can be installed in cabinets in control rooms but installing it in enclosures in the field will mean that the I/O is installed closer to the field devices and thus can reduce the distance between the field devices and were the wire is terminated to the control system.

Supports multiple types of fiber optic: Both Multi-Mode and Single-Mode fiber types are supported. Multi-Mode can go distances up to 2km and Single-Mode can go up to maximum 15km distance with proper installation.

Redundant power supply connections: The Dual Media Converter Carrier includes terminals for redundant 24V DC Power Supplies and the Media Converter have LED diagnostics that will indicate any failure in the power supply.

Hazardous area certifications available: The Single-Mode and Multi-Mode media converters have hazardous area certifications and can be mounted in Class 1, Div. 2 and Zone 2 hazardous areas.

Includes wire terminals for Easy Installation: Each Dual Media Converter Carrier includes terminals for redundant power supplies. These terminals are duplicated to allow daisy-chaining of the 24VDC power for easy installation.

Works with both DeltaV and DeltaV SIS: There are many use cases for the DeltaV Media Converters covering both DCS and SIS installations.
