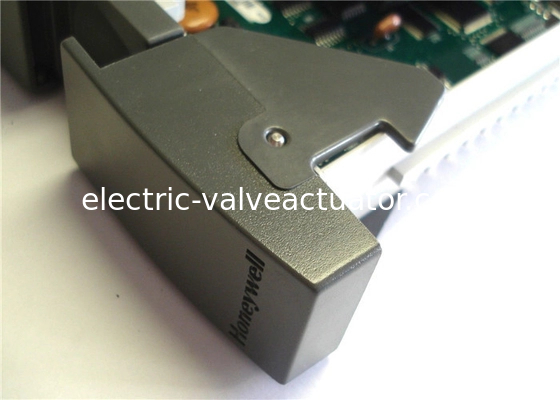

Honeywell TCD3000 Control Circuit Board 51403422-150 MEASUREX

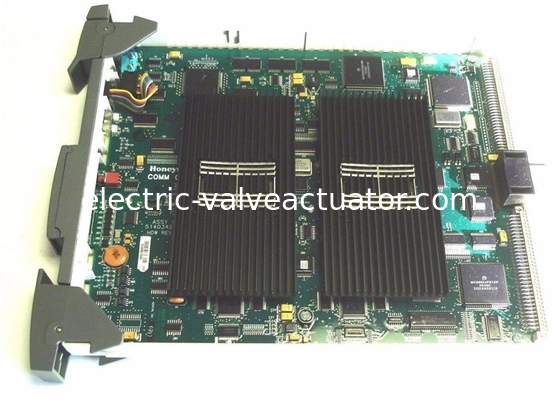

Control Circuit Board HONEYWELL AMR BOARD 51403422-150 HDW COMMUNICATION CONTROLLER MEASUREX

Both the high and low level analog input processors perform signal conversion and conditioning functions:

• PV Source (Auto, Manual, Substituted)
• PV Clamping
• EU Conversion
• PV Value Status
• PV Alarming Bad PV PV Hi/Lo PV HiHi/LoLo PV Rate-of-Change +/-
• Software Calibration

They perform engineering unit conversion, including fifth-order polynomial temperature input characterization, with the high level processor receiving these inputs from mV/I converters.

• Control Circuit Board
• MEASUREX
• COMMUNICATION CONTROLLER

Through use of a dual processor design and custom integrated circuits, the low level analog input processor supports software configuration per channel for different thermocouples or RTD types with excellent resolution and accuracy. Open thermocouple detection is performed once per scan so that no bad data is propagated for control processing.

The low level multiplexer processor provides an even more economical way to bring in a large number of data acquisition signals. Each processor can handle 32 points, using two 16-point FTAs. Each point is scanned once per second with a 1 second scan delay for processing. Open thermocouple detection is performed on a regular basis for all points. Options for either local or remote cold junction reference are available.

The Smart Transmitter Multivariable (STI-MV) processor is the APM's digital interface to Honeywell's advanced series of smart transmitters.

• 51304270-100 EPDG I/O EPDG I/O
• 51304584-200 EPDGP EPDGP I/O Card
• 51304584-300 EPDGP EPDGP I/O for Z-Console
• 51308012-100 120V Power Dis Board Assy
• 51308014-100 240V Power Dis Board Assy
• 51308035-100 Manifold PWA for OP Keybd
• 51400855-100 SIO Board (Trend Pen)
• 51401286-100 EPDG EPDG Interface Card
• 51401952-100 Keyboard I/F, "Z", kybd 2
• 51401952-200 Keyboard I/F, classic kb2
• 51401975-100 Roving Gray Engineer Kybd
• 51402089-100 EPDG2 EPDG2 Interface Card
• 51402447-100 EPDGC-1 EPDGC-1 I/O
• 51402447-200 EPDGC-2 EPDGC-2 I/O
• 51403135-100 Touch Screen Assy 21" Z
• 51403157-200 AUX PWR SUPPLY ASSY
• 51403158-100 Brightness/Contrast Buttn
• 51403165-400 Keyboard Tray Assembly Z
