Quickpanel Datapanel 160 Display Screen Panel DSX000 Series IC752DSX000 GE FANUC

Name: Quickpanel Datapanel 160 Display Screen Panel DSX000 Series IC752DSX000 GE FANUC
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: IC752DSX000
Price: 210.00 USD
Availability: InStock

Brand Name:	GE
Model Number:	IC752DSX000
MOQ:	1
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Certification:

Packaging Details:

New Original Box

Product Description

Detailed Product Description

MODEL:	IC752DSX000	Wetting Current:	IC Series
Type:	Quickpanel Display	MOQ:	10 Pc
Stock:	Yes	Condition:	Original
Payment:	TT WU PAYPAL	Lead Time:	5-8 Work Days
Highlight:	DSX000 Series Datapanel , GE FANUC Datapanel , IC752DSX000

Quickpanel Datapanel 160 Display Screen Panel DSX000 series IC752DSX000 GE FANUC

Technical Information

The catalog number IC752DSX000 is the catalog number for the display terminal that is used in industrial systems for machine control. The display is introduced through the Datapanel 160 series and it is built in accordance with industrial control equipment standards like the UL and CE standards. The IC752DSX000 display terminal is a QuickPanel component that has been designed and manufactured by GE Fanuc. The unit operates on a voltage range of 9 to 35 Volts DC with a typical current rating of 1.2 Amps at 24 Volts DC. The unit uses short power lines in order to achieve low inductance and it requires 12 AWG wire. The wire is specified for connections from the power supply pin 3 connector to the frame ground (earth).

Model list

IC5005CAC0000	GE Fanuc Intelligence
IC752DSX000	Datapanel 160 Display Screen Panel DSX000
IC752VDK048	ViewStation VE IIx Operator Interface 10 inch Screen
IC754ACC64MEM	64MB Memory Card Expand Module QuickPanel Accessory ACC64MEM PLC
IC754CBF15CTD	GE-15 inch TFT QuickPanel Ctrl/ Fully Loaded/ 24VDC / Blank Label Fanuc
IC754CKF15CTD	GE-Starter Kit/ 15 inch TFT Ctrl Fully Loaded/ 24VDC Fanuc
IC754CSF12CTD	QuickPanel Control 12in 64MB/64MB Color TFT Touch D
IC754GEN001	GE FANUC GENIUS COMMUNICATION FOR QUICKPANEL VIEW & CONTROL
IC754VBF15CTD	QuickPanel View 15 inch TFT / Fully Loaded/ 24VDC / Blank Label
IC754VGF15CTD	QuickPanel View 15 inch TFT / Fully Loaded/ GEF Overlay/ 24VDC
IC754VSI12CTD	View Intermediate 12 inch Color TFT Touch DC QuickPanel View/Control Touch Screen Display
IC755ACC07PRO	Replacement Screen Protectors IC755 ACC07PRO

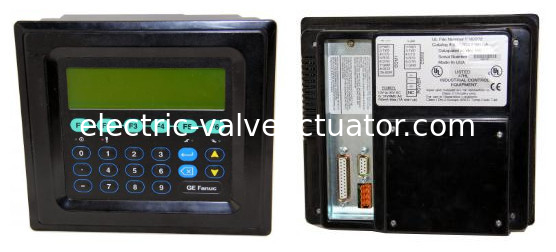

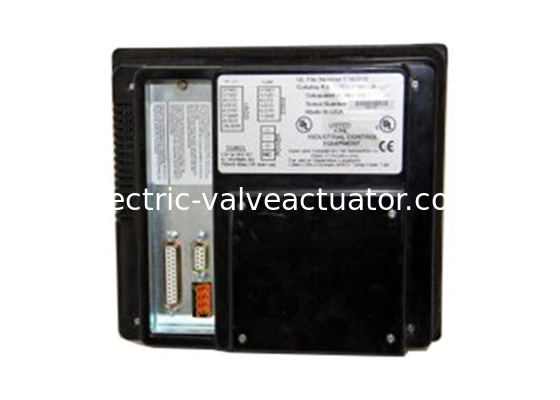

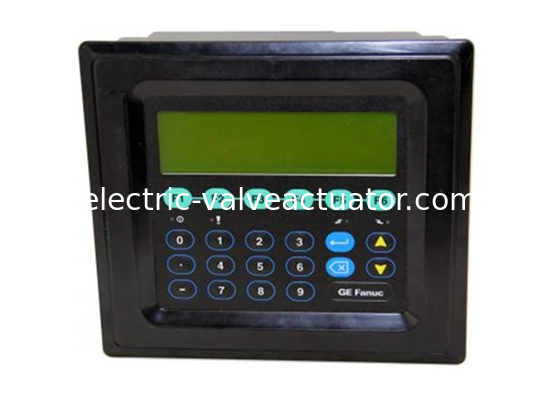

Product Picture:

The IC752DSX000 display terminal has an LED backlight and a resolution of 240 x 64 pixels. The physical size of the display is 124 x 35 millimeters (4.8 x 1.3 inches). The display screen shows 6 lines of text and up to 40 characters of text in total. This model does not have a touchscreen but it includes 6 function keys per page and a physical data entry keypad with 22 keys. The IC752DSX000 display terminal has LED indicators and an AMD AM186ES processor that works at 32 megahertz. Additionally, the IC752DSX000 display terminal has 512 KB of flash memory and 256 KB of SRAM. The unit has both RS232/485 and RS232 serial ports. The IC752DSX000 terminal operates in a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and it can be stored at temperatures between -20 and 70 degrees Celsius (-4 to 158 degrees Fahrenheit).

Packing:

- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- By sea
- Standard export airport: Hongkong, Shenzhen.

Contact Person : Summer
Job Title : Sales
Business Phone : 86-136 9179 7282
Email : keji2203@163.com

FAQ:

* Q: Could Wisdomlong provide technology support?
A: We're in this field for more than 8 years. If there's any problem, please contact us, we'll provide a suggestion from our
engineer to help you solve the problem.

* Q: What is your MOQ?
A: 10pcs at least.

* Q: Do you test all your goods before delivery?
A: Yes, all the goods will 100% test before delivery.

We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
