SIEMENS PT20M Panelboard 6DD1606-1AD0 250A 208Y/120V

Name: SIEMENS PT20M Panelboard 6DD1606-1AD0 250A 208Y/120V
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 6DD1606-1AD0
Price: 210.00 USD
Availability: InStock

Brand Name:	Siemens
Model Number:	6DD1606-1AD0
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

Germany

Packaging Details:

New original box

Highlight:

SIEMENS PT20M Panelboard 250A

208Y/120V panelboard with warranty

low voltage protection panelboard

Product Description

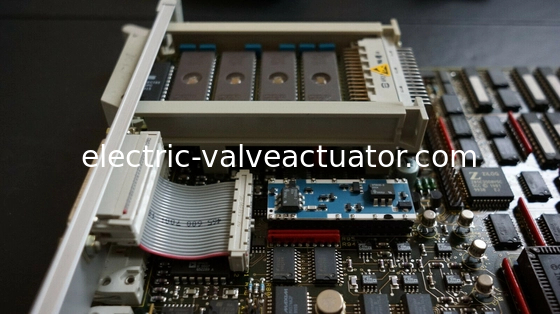

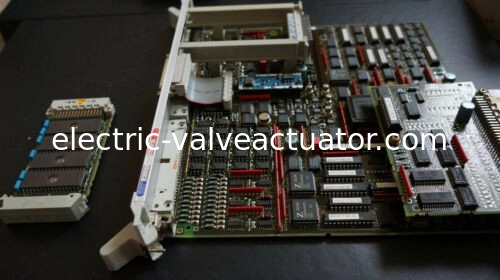

New and Original SIEMENS BOARD PT20M 6DD1606-1AD0 465606.9103.00 465606.7101.10 ID32602

Product Specifications

Example for standard lighting panelboard:

Amperage: 250A
Voltage: 208Y/120V
System: 3Ø4W
Main: Main Lug
Branches: 10K AIR, 42-20/1
Modifications: None
Feed Location: Top

Panel Modifications

Main Bus: Standard main bus is tin-plated aluminum. For copper main bus, add from the table for each panel. Includes copper neutral cross bar. For copper neutral branch lugs, see miscellaneous.
Compression lug for MLO1
Contactor mains: Mount in 23" enclosure ahead of panel.
- Asco 920 through 225 amps 3
- Asco 911 through 150 amps 3
- Siemens LEN through 30 amps 3
Branch and main breaker accessories:
- Handle blocks
- Handle locks
Feed-thru lugs 1: Cannot be used in conjunction with TVSS or subfeed breakers. Do not add height to the panel

A unique feature of P1 panels is that they can accommodate either feed-thru lugs or one subfeed circuit breaker (up to 250A) without any addition to box height.

Application Areas

Special machines
Controller building
Textile machines
Machine tool manufacture
Packaging machines
Installation systems
Pick-and-place machines
Electrical/electronics industry and the skilled trades
Assembly machines
Automotive
Palleting machines
Water/wastewater
General mechanical engineering
Food & beverage
