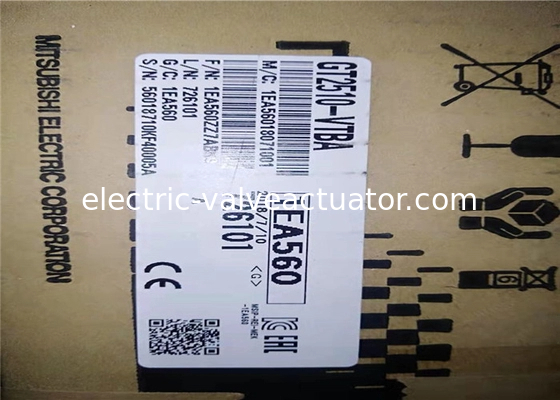

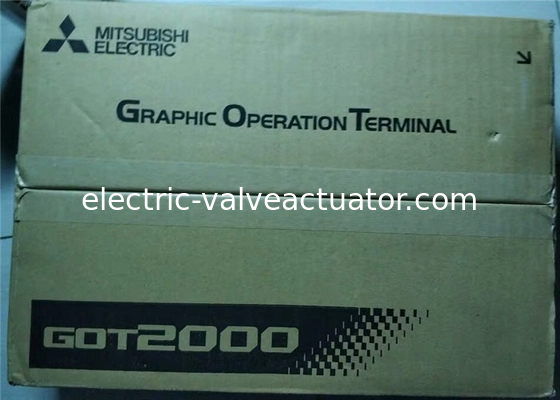

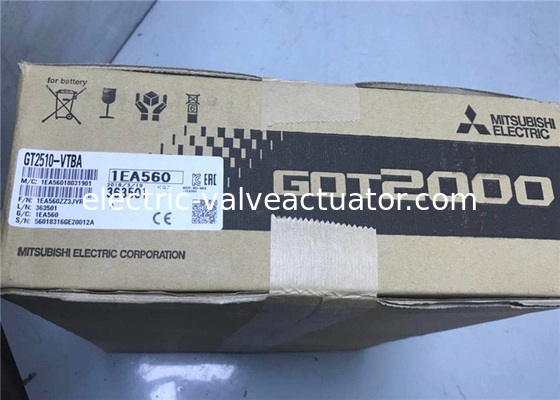

100-240VAC Touch Screen GT2510-VTBA Mitsubishi Human Machine Interface

100-240VAC Touch Screen GT2510-VTBA Mitsubishi Human Machine Interface

Detailed Product Description

• Manufacturer : Mitsubishi Electric

• GT2510-VTBA

• Model Number : GT2510-VTBA

• Display Section (*1, *2) Type : TFT color LCD

• Screen Size : 10.4"

• Resolution (Dots) : 640 x 480 VGA

• Display Size (W x H) mm : 211.2 x 158.4

• Number of Characters : 16-dot standard font: 40 chars. × 30 lines (2-byte) 12-dot standard font: 53 chars. × 40 lines (2-byte)

• Display Colors : 65536 colors

• Intensity Adjustment : 32-level adjustment

• Backlight Type : LED (not replaceable)

• Life (*4) : Approx. 60000 hours or more (Time for display intensity reaches 50% at ambient temperature of 25°C)

• Touch Panel (*3) Type : Analog resistive film

• Key Size (Dots) : Minimum 2 x 2 dots (per key) (*8)

• Simultaneous Press : Not available (*5) (only 1 point can be pressed)

• Life : 1 million times or more (operating force 0.98N or less)

• Panel Color : Black

• Memory User Memory Capacity : Memory for storage (ROM): 32MB, Memory for operation (RAM): 80MB

• Life (No. of Writings) : 100,000 times

• Internal Clock Accuracy : ±90 sec/month (ambient temperature 25°C)

• Battery Type : GT11-50BAT lithium battery

• Life : Approx. 5 years (ambient temperature 25°C)

• Built-in Interface RS-232 : 1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (male)

• RS-422/485 : 1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (female)

• Ethernet : 1ch Data transfer method: 10BASE-T/100BASE-TX Connector shape: RJ-45 (modular jack)

• USB (Host) : 22ch (front face/rear face)

• : Maximum transfer speed: High-Speed 480Mbps Connector shape: USB-A

• USB (Device) : 1ch (front face)

• : Maximum transfer rate: High-Speed 480 Mbps Connector shape: USB Mini-B

• SD Memory Card : 1ch SDHC compliant (maximum 32GB)

• Extension Interface : For communication unit/option unit mounting

• Side Interface : For communication unit mounting

• Buzzer Output : Single tone (tone, tone length adjustable)

• Power LED : Emission color: 2 colors (blue, orange)

• Protective Construction : Front: IP67F (*6, *9)

• : Inside control panel: IP2X

• External Dimensions (W x H x D) mm : 303 x 218 x 52

• Panel Cutout (W x H) mm : 289 x 200

• Weight (Excluding Mounting Brackets) kg : 2.1

• Applicable Software Package : GT Works3 Version1.112S or later

• GT2510-VTBA Model Number :GT25

• Operating Ambient Temp. (*1) :0 to 55°C (*2)

• Storage Ambient Temperature :-20°C to 60°C

• Operating Ambient Humidity :10 to 90%RH, no condensation

• Storage Ambient Humidity :10 to 90%RH, no condensation

• Vibration Resistance :Conforming to JIS B 3502 and IEC 61131-2 : Under intermittent vibration Frequency :5 to 8.4Hz/8.4 to 150Hztamat Vibration Resistance :Conforming to JIS B 3502 and IEC 61131-2 : Under continuous vibration Frequency : 5 to 8.4Hz/ 8.4 to 150Hztamat Impact Resistance :Compliant with JIS B 3502, IEC 61131-2 (147 m/s² (15G), 3 times each in X, Y and Z directions)

• Operating Atmosphere (*6) :No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)

• Operating Altitude (*3) :2000m (6562 ft) or less

• Installation Location :Inside control panel

• Overvoltage Category (*4) :II or less

• Pollution Degree (*5) :2 or less

• Cooling Method :Self-cooling

• Grounding :Grounding with a ground resistance of 100O or less. If impossible, connect the ground cable to the control panel.

• Category :GT2510

• Screen Size :10.4"

• Model Number :GT2510-VTBA

• Resolution :VGA (640 x 480)

• Display Type :TFT Color

• Frame Color :Black

• Power Supply :100-240VAC

• Stocked Item :S

• Shipping Weight : 3 Kg

Quick Detail

GT25 model
