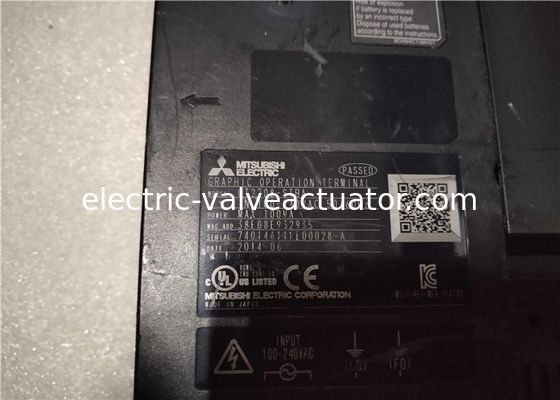

Touch Screen GT2708-STBA Mitsubishi Human Machine Interface GOT 2000

Touch Screen GT2708-STBA Mitsubishi Human Machine Interface GOT 2000

Detailed Product Description

Quick Detail

Specifications

• Stand Alone : 15W

• Stand Alone w/ Backlight Off : 10W

• Inrush Current : 60A or less (2ms, ambient temperature 25°C, maximum load)

• Permissible Instantaneous Failure Time : Within 20ms (100VAC or more)

• Noise Resistance : Noise voltage 1500Vp-p, noise width 1µs by noise simulator with noise frequency 25 to 60Hz

• Withstand Voltage : 1500VAC for 1 minute between power supply terminal and ground

• Insulation Resistance : 10MO or higher with an insulation resistance tester (500VDC between power supply terminal and ground)

• Applicable Wire Size : 0.75 to 2 [mm²]

• Clamp Terminal : Clamp terminals for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A

• Tightening Torque (Terminal Block’s Terminal Screws) : 0.5 to 0.8 [N·m]

• Model Number : GT2708-STBA

• Display Section (*1, *2) Type : TFT color LCD

• Screen Size : 8.4"

• Resolution (Dots) : 800 x 600 SVGA

• Display Size (W x H) mm : 170.9 x 128.2

• Number of Characters : 16-dot standard font:

• : 50 chars. x 37 lines (2-byte) 12-dot standard font:

• : 66 chars. x 50 lines (2-byte

• Display Colors : 65536 colors

• Intensity Adjustment : 32-level adjustment

• Backlight - Type : LED (not replaceable)

• Backlight - Life : Approx. 60000 hours or more (Time for display intensity reaches 50% at ambient temperature of 25°C) (*4)

• Touch Panel (*3) Type : Analog resistive film

• Touch Panel (*3) Key Size (Dots) : Minimum 2 x 2 dots (per key) (*7)

• Touch Panel (*3) Simultaneous Press : Maximum 2 points

• Touch Panel (*3) Life : 1 million times or more (operating force 0.98N or less)

• Panel Color : Black

• User Memory Capacity : Memory for storage (ROM): 57MB, Memory for operation (RAM): 128MB

• Life (No. of Writings) : 100000 times

• Internal Clock Accuracy : ±90 sec/month (ambient temperature 25°C)

• Battery Type : GT11-50BAT lithium battery

• Battery Life : Approx. 5 years (ambient temperature 25°C)

• Built-in Interface RS-232 : 1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (male)

• Built-in Interface RS-422/485 : 1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (female)

• Built-in Interface Ethernet : 1ch Data transfer method: 10BASE-T/100BASE-TX Connector shape: RJ-45 (modular jack)

• Built-in Interface USB (Host) : 2ch (front face/rear face)

• : Maximum transfer speed: High-Speed 480Mbps Connector shape: USB-A

• Built-in Interface USB (Device) : 1ch (front face)

• : Maximum transfer speed: High-Speed 480Mbps Connector shape: USB Mini-B

• Built-in Interface SD Card : 1ch SDHC compliant (maximum 32GB)

• Built-in Interface Extension Interface (*6) : For communication unit/option unit mounting

• Built-in Interface Auxiliary Extension I/F : For option unit mounting

• Built-in InterfaceSide Interface : For communication unit mounting

• Buzzer Output : Single tone (tone, tone length adjustable)

• Power LED : Emission color: 2 colors (blue, orange)

• Protective Construction : Front: IP67F (*5,*8) In control panel: IP2X

• External Dimensions (W x H x D) mm : 241 x 194 x 52

• Panel Cutout (W x H) mm : 227 x 176

• Weight (kg) Excludes Mounting Brackets : 1.5

• Applicable Software Package : GT Works3 Version1.100E or later

• Shipping Weight : 3 Kg

High Specification Models With Multi-Touch/Gesture Control

The operating terminals of the GT27 series provide TFT LCD displays with 65K colours and screen sizes of 5.7", 8.4", 10.4", 12.1" and 15" with VGA/SVGA/XGA resolution and up to 128MB internal memory. All terminals come with Ethernet, USB, RS232, and RS422/485 interfaces and SD card slot. Additionally the GT27 can be equipped with optional interfaces like CC-Link IE, CC-Link IE Field, CC-Link, MELSECNET/H and a direct connection to the PLC bus.

Special models of the GT27 with the sizes of 10.4" and 12.1" are available with a white frame and without the front USB interface, ideal for Food and Beverage applications.

The GT27 offers several pre defined diagnostic and troubleshooting functions, like backup/restore, PLC program monitor, servo/motion monitor, motion SFC monitor and CNC monitor.
