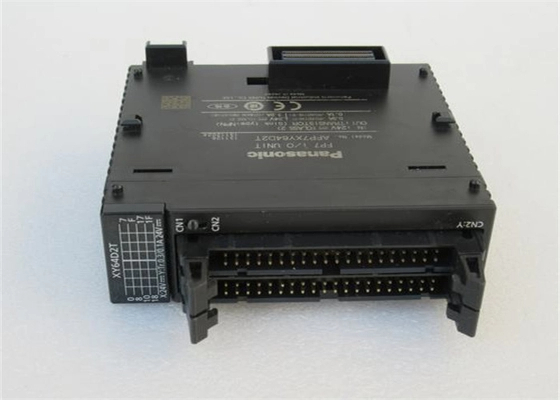

24 V DC 2.7 mA PLC 8.2 kOhm Programmable Logic Controller AFP7XY64D2T Panasonic

Name: 24 V DC 2.7 mA PLC 8.2 kOhm Programmable Logic Controller AFP7XY64D2T Panasonic
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: AFP7XY64D2T
Price: 285.00 USD
Availability: InStock

Brand Name:	Panasonic
Model Number:	AFP7XY64D2T
MOQ:	1
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	In Stock

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Packaging Details:

New Original Box

Supply Ability:

In Stock

Product Description

Detailed Product Description

Brand:	Panasonic	Model Number:	AFP7XY64D2T
Country Of Origin:	Japan	Type:	PLC Programmable Logic Controller
Number Of Outputs And Type:	16 - Pulse (4), PWM (4), Solid State (8)	Expandable:	3 Modules Max
Voltage - Supply:	24VDC	Operating Temperature:	0°C ~ 55°C
Highlight:	ethernet plc controllers , industrial automation using plc

24 V DC 2.7 mA PLC 8.2 kOhm Programmable Logic Controller AFP7XY64D2T Panasonic

Technical Specifications

Physical
Case/Package	Module
Mount	DIN Rail
Weight	0.254 lb
Technical
Current Rating	55 mA
Max Operating Temperature	55 °C
Min Operating Temperature	0 °C
Termination	Connector

Specifications

Ambient temperature: 0 to +55 ℃ +32 to +131 ℉, Storage: -40 to +70 ℃ -40 to +158 ℉

Ambient humidity : 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation), Storage: 10 to 95 % RH (at +25 ℃ +77 ℉, no condensation)

Breakdown voltage 500 V AC for 1 minute

(Note) The breakdown voltage is 2,300 V AC, 1 minute.

Insulation resistance 100 MOhm or more (at 500 V DC)

Vibration resistance 5 to 8.4 Hz, single amplitude of 3.5 mm 0.138 in, 1 sweep/min. (IEC 61131-2) ; 8.4 to 150 Hz, constant acceleration of 9.8 m/s2, 1 sweep/min. (IEC 61131-2), 10 times each in X, Y, and Z directions

Shock resistance 147 m/s2 or more , 3 times each in X, Y, and Z directions (IEC61131-2)

Noise immunity 1,000 V [p-p] with pulse width 50 ns and 1 micro s (using a noise simulator)

Operating condition Free from corrosive gasses and excessive dust

INPUT SPECIFICATIONS

Item	Specifications
Insulation method	Photocoupler insulation
Rated input voltage	24 V DC
Rated input current	2.7 mA
Impedance	8.2 kOhm
Min. ON voltage / Min. ON current	19.2 V / 2.5 mA
Max. OFF voltage / Max. OFF current	5 V / 1.5 mA
Response time:OFF→ON	0.2 ms or less (Note) Changeable by settable input time constant
Response time:ON→OFF	0.2 ms or less (Note) Changeable by settable input time constant
Input points per common	32 points/common
Operating mode indicator	32 points LED display (lights when ON, selectable by switch)
External connection method	Connector (MIL-compliant 40 pins, one use)

The following are some of the drive models, both new and used are stocked:

MSDA3A3A1A	MSDA5A3A1A	MSDA013A1A
MSDA023A1A	MSDA043A1A	MSDA083A1A
MDDA103A1A	MDDA153A1A	MDDA203A1A
MDDA253A1A	MDDA303A1A	MDDA353A1A
MSDA403A1A	MSDA503A1A	MSD023A1XXV
MSDA083A1XXV	MSD043A1X	MSDA043D1A
MQDA043A1A	MUDS043A1A	MUDS023A1A
MUDS083A1A	MUMS082A1E0S	MUDS083A1M
MUMA012P1T	MUMA022P1T	MUMA042P1T
MUMA042P1S	MUMA012P1S	MUMA022P1S
MUMS082P1S	MSDA043A1XXV	MSDA013A1XXV
MKDET1505P	MLDET2310P	MUMA082P1T
MLDET2510P	MKDET1310P	MUMS042A1AOS
MSM041A211	MQMA042A1E	MSMA022P1A
MSM042P1B	MSM042AJB	MSM011P1N
MQMA022S2P	MSM012AJA	MSM012P1F
MDMA152S1C	MSM042AJA	MQMA012C2P
MSMA022A1B	MSM021DJE	MSD043A1X
MSD043A1XX	MSM042A1A	MSM5AZA1B
MUMS012C2U1S	MUMS012A1F0S	MSMZ082A1B
MSD013A1XX	MSM012A1A	MSMA012C1A
MSDA013D1A	MSMA5AZS1A	MQMA012P1B
MSMD042P1T	MUMS022A1B0S	MFM082A1C
MQMA042A1E	MSMA022C1A	MSMA022C1E
