Bently Nevada 3300 XL 8mm Proximity Sensor 330180-50-00 5.0M system length panel mount

Bently Nevada 3300 XL 8mm Proximity Sensor 330180-50-00 5.0M system length panel mount

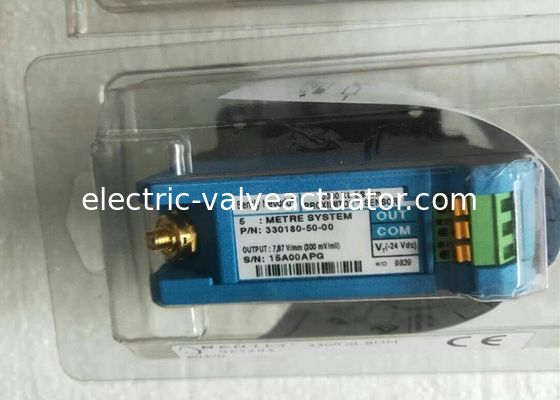

Description of Proximitor Sensor

The 3300 ProximitorSensor offers many improvements over previousBently Nevada eddy current transducers with better linearity and temperaturestability. It also uses an integral isolation plate as its base, eliminating theneed for separate isolator plates.

Proximity Probes and Extension Cable.

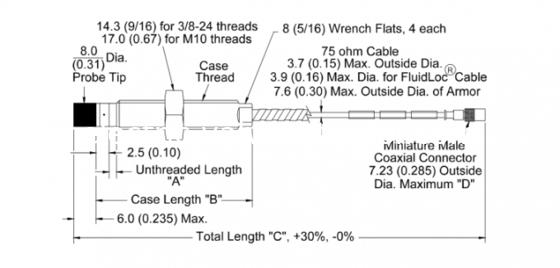

The 3300 XL 8 mm probe, 3300 5 mm probe, and 3300 XL extension cablealso reflect improvements over previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and theprobe body. The probe’s cable is more securely attached as well,incorporating a patented CableLoc design that provides 330 N (75 lb) pullstrength for 8 mm probe where the probe cable attaches to the probe tip.

Probes (8 mm only) and Extension Cables can also be ordered with anoptional FluidLoc cable option. This option prevents oil and other liquidsfrom leaking out of the machine through the cable's interior.

Order Information:

3300 XL Proximitor Sensor

330180-AXX-BXX

Option Descriptions

A:Total Length and Mounting Option

50 5.0 metre (16.4 feet) system length, panel mount
51 5.0 metre (16.4 feet) system length, DIN mount
52 5.0 metre (16.4 feet) system length, no mounting hardware
90 9.0 metres (29.5 feet) system length, panel mount
91 9.0 metres (29.5 feet) system length, DIN mount
92 9.0 metres (29.5 feet) system length, no mounting hardware

B:Agency Approval Option

00 Not required
05 Multiple approvals

Models of 330180 Series Proximitor Sensor

330180-50-00
330180-50-05
330180-51-00
330180-51-05
330180-52-00
330180-52-05
330180-90-00
330180-90-05
330180-91-00
330180-91-05
330180-92-00
330180-92-05

For a shorter delivery time, order commonly stocked probes. Currently, stocked probes consist of the following part numbers:

330101-00-08-05-02-00, 330101-00-08-05-02-05, 330101-00-08-10-02-00, 330101-00-08-10-02-05, 330101-00-12-10-02-00, 330101-00-12-10-02-05, 330101-00-16-10-02-00, 330101-00-16-10-02-05, 330101-00-20-05-02-00, 330101-00-20-10-02-00, 330101-00-20-10-02-05, 330101-00-30-10-02-00, 330101-00-30-10-02-05, 330101-00-40-05-02-00, 330101-00-40-10-02-00, 330101-00-40-10-02-05, 330101-00-60-10-02-00, 330101-00-60-10-02-05, 330102-00-20-10-02-00, 330103-00-02-10-02-05, 330103-00-03-10-02-05, 330103-00-04-10-02-00, 330103-00-04-50-02-00, 330103-00-05-10-02-00, 330103-00-06-10-02-00, 330104-00-06-10-02-00, 330104-01-05-50-02-00, 330105-02-12-05-02-00, 330105-02-12-05-02-05, 330105-02-12-10-02-00, 330105-02-12-10-02-05, 330106-05-30-05-02-00, 330106-05-30-05-02-05, 330106-05-30-10-02-00 and 330106-05-30-10-02-05.
