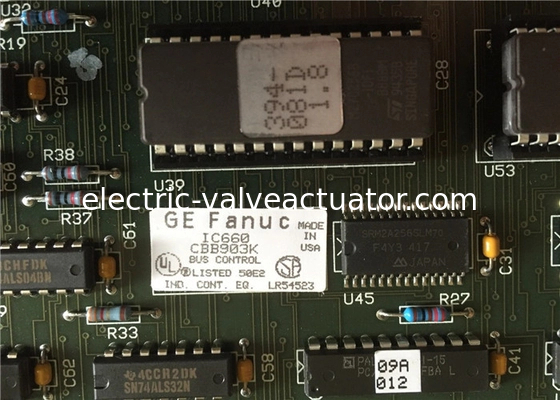

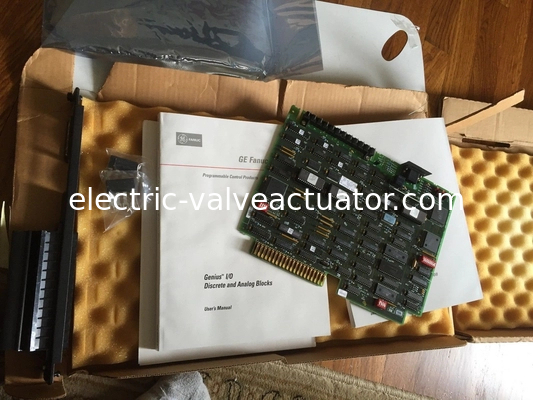

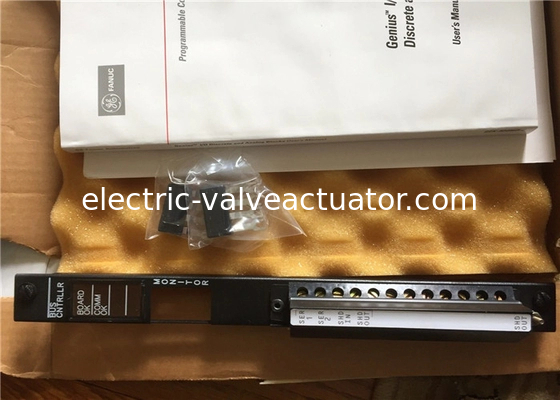

IC660CBB903K GE FANUC PLC Logic Controller Series Six I/O Bus Controller

The GE Fanuc IC660CBB90xx Series BUS Control Modules are a required interface between a Series Six Plus PLC and the Genius I/O blocks when they are included in the PLCs I/O system. The Bus Controller module can be placed in any I/O slot in the CPU or in a high-capacity I/O rack located in a CPU station or Local I/O station up to 2000 feet (600 meters) from the CPU. Multiple Bus Controllers can be placed in one rack. Since each Bus Controller consumes 20 units of load, up to 5 modules can be placed in a CPU rack, or 10 modules in a high capacity I/O rack.

A Bus Controller can be placed in an I/O rack in a Remote I/O station if the CPU scan time is greater than 10 ms. However, because of the reduced capacity of the serial I/O communications link, window commands would not be supported. Each Bus Controller can interface up to 30 Genius I/O blocks to the Series Six Plus CPU by twisted pair communications up to 2000 feet (600 meters). The only limit to the number of Bus Controllers in any one PLC system is the l/O capacity of the Series Six Plus CPU. Each Bus Controller, similar to any I/O module, has access to all l/O references on its I/O chain.

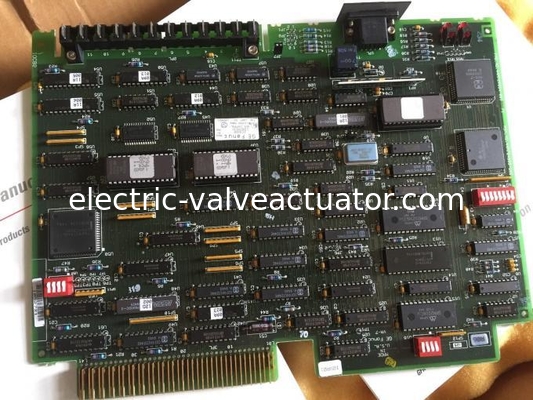

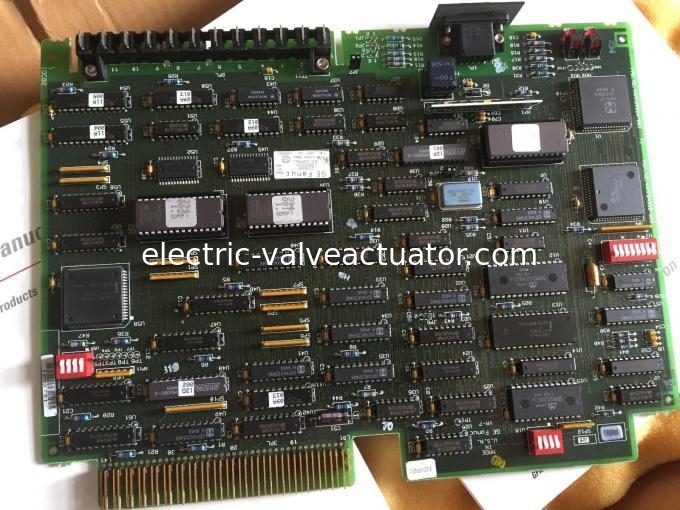

A 4-segment DIP switch located on the module is used to enable channel selection for Expanded I/O addressing. If Normal (non-expanded) addressing is used or if channel selection is made through I/O Transmitter Modules, no switch setting is necessary.

The Genius I/O bus must be terminated at the Bus Controller by its characteristic impedance. The enhanced version Bus Controller provides three selectable on-board impedances, 100Ω, 150Ω, or 750Ω. Three jumpers (JPI, JP2, and JP3) on the module are used to select one of the listed values, or to select no impedance.

Product Family: IC660CBB903G, IC660CBB903H, IC660CBB903K, IC660CBB903, IC660CBB902, IC600CBB902G, IC600 CBB902G, IC600-CBB902G, IC600CBB902H, IC600 CBB902H, IC600-CBB902H Genius I/O, Series Six
