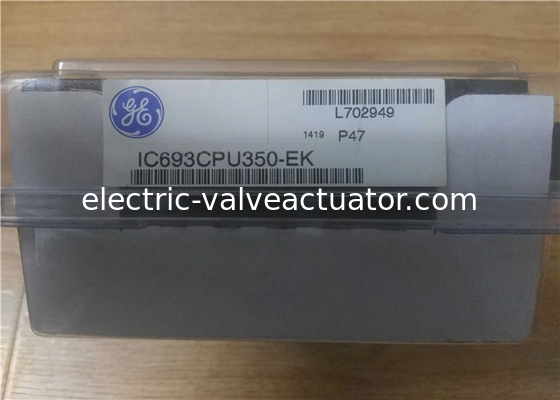

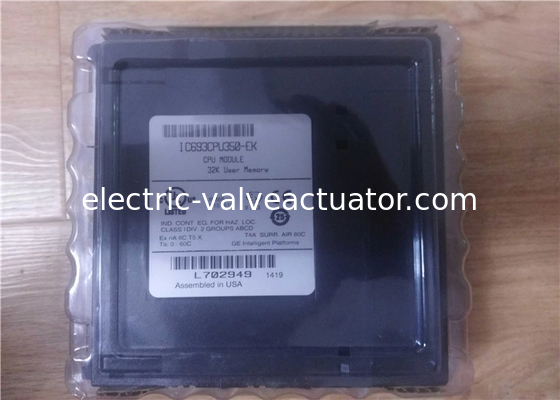

IC693CPU350-EK PLC Programmable Logic Controller GE Fanuc 9030 PLC CPU Module

Brand Name:	GE
Model Number:	IC693CPU350(EK)
MOQ:	1
Price:	Negotiation
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	In Stock

Detail Information

Product Description

Detail Information

Place of Origin:

USA

Certification:

Packaging Details:

New Original Box

Supply Ability:

In Stock

Highlight:

IC693CPU350-EK PLC

GE Fanuc 9030 PLC CPU Module

Programmable Logic Controller

Product Description

Detailed Product Description

Brand:	GE	Model:	IC693CPU350(EK)
Place Of Origin:	USA	Product Name:	Ethernet Interface Module
Override:	Yes	Processor Type:	80386EX
Highlight:	industrial programmable controller , industrial automation using plc

PLC Programmable Logic Controller GE Fanuc IC693CPU350 9030 CPU Module IC693CPU350-EK

Catalog Number IC693CPU350

CPU Type	Single slot CPU module
Total Baseplates per System	8 (CPU baseplate + 7 expansion and/or remote)
Load Required from Power Supply	670 milliamps from +5 VDC supply
Processor Speed	25 MegaHertz
Processor Type	80386EX
Operating Temperature	0 to 60 degrees C (32 to 140 degrees F) ambient
Typical Scan Rate	0.22 milliseconds per 1K of logic (boolean contacts)
User Program Memory (maximum)	32K Bytes (not configurable)
Discrete Input Points - %I	2,048 Discrete Output Points - %Q 2,048
Discrete Global Memory - %G	1,280 bits
Internal Coils - %M	4,096 bits
Output (Temporary) Coils - %T	256 bits
System Status References - %S	128 bits (%S, %SA, %SB, %SC - 32 bits each)
Register Memory - %R	9,999 words
Analog Inputs - %AI	2,048 words
Analog Outputs - %AQ	512 words
Timers/Counters	>2,000
Shift Registers	Yes
Override	Yes
Battery Backed Clock	Yes
Interrupts	Supports the periodic subroutine feature
Type of Memory Storage	RAM and Flash
PCM/CCM Compatibility	Yes
Floating Point Math Support	Yes. Firmware-based in firmware releases 9.0 and later.

FEATURES

Compatible with Variety of Modules
Various Memory Sizes
Battery-Backed Clock

DESCRIPTION

The GE Fanuc IC693CPU Series 90-30 CPU Modules are embedded into the backplane, making all slots available for I/O. These modules are compatible with advanced modules such as Ethernet, various bus modules, and control. Mid range CPU's are modular and come in various memory sizes; performance capabilities; and increased functionality such as overrides, battery-backed clock, and programmable co-processor module support.

The high performance CPU's are based on the latest 386EX processor for fast computation and high throughput. They can handle up to 4096 I/O and start at 32K of memory and are programmable in a number of standard languages.

With 1 built in port the GE Fanuc 90-30 IC693CPU340 supports SNP/SNP-X master CCM, or RTU slave support and is a PCM module for RTU master support. The GE Fanuc 90-30 IC693CPU340 is a single slot CPU that has user programabale memory of 32k(bytes) with 19.9k of register memory. GE Fanuc 90-30 IC693CPU340 has a processor speed of 25 megahertz and also hs 8 base plates per system.
