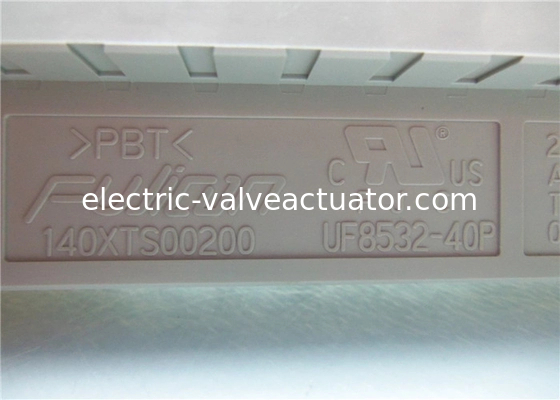

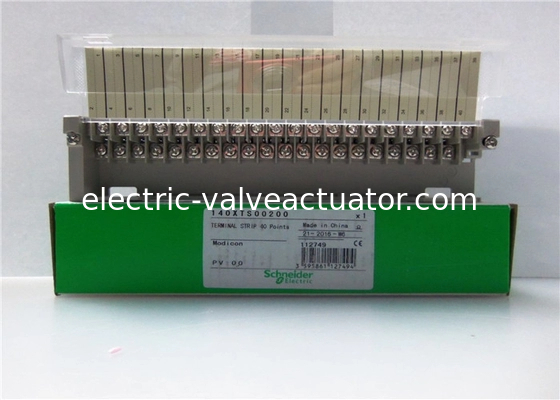

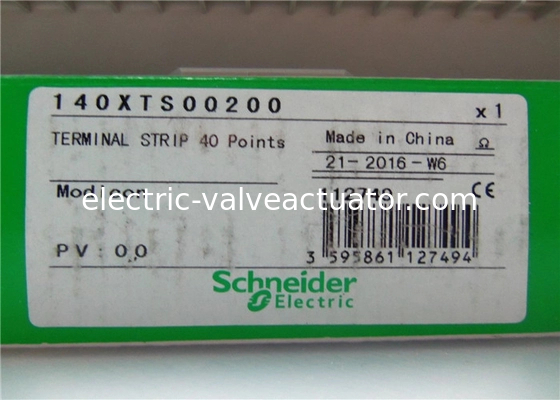

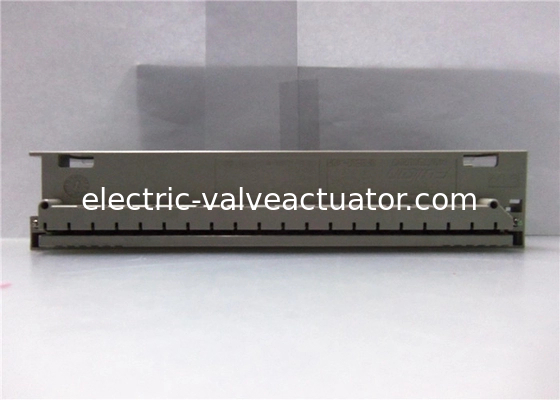

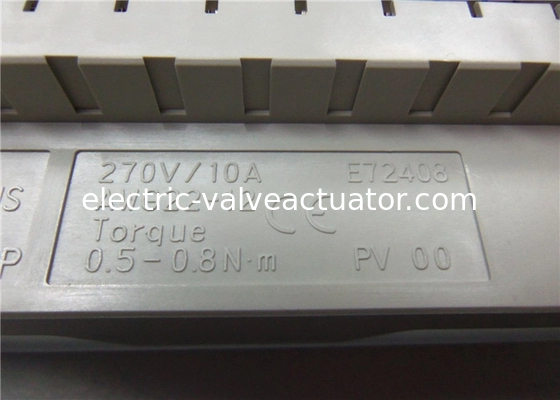

Programmable Automation Controller 140XTS00200 Terminal Strip 40 Points

PLC Programmable Logic Controller Schneider Electric Modicon Quantum 140XTS00200 Terminal Strip 40 Points

Main
range of product Modicon Quantum automation platform
accessory / separate part designation Screw terminal block
accessory / separate part type Terminal block
accessory / separate part category Connection accessories
accessory / separate part destination

Analog I/O module
Input or output module of security

Counter module
Analogue module of security
Analog input modules
Discrete combination I/O modules
Analog output modules
Accurate time stamping multifunction input module

Complementary

Product compatibility

140ACI.....
140ACO.....
140AMM.....
140ARI.....
140ATI.....
140AVI.....
140AVO.....
140DAI.....
140DAM.....
140DDI.....
140DDM.....
140DDO.....
140DRA.....
140DRC.....
140DRO.....
140DSI.....
140DVO.....
140EHC.....
140ERT.....
140SAI.....
140SDI.....
140SDO....

Pin number 40 pins
Product weight 0.15 kg

Environment
IP degree of protection < IP20

Offer Sustainability
Sustainable offer status Not Green Premium product
RoHS Compliant - since 0739 - Schneider Electric declaration of conformity
REACh Reference not containing SVHC above the threshold
Product end of life instructions Need no specific recycling operations

OTHER SUPERIOR PRODUCTS

• 140-XTS TERMINAL STRIP 40POINT CABLEFAST Modicon Quantum 140-XTS-002-00
• Manufacturer: Modicon Quantum
• Series: 140 Series
• This 140XTS00200 may qualify for our exchange for credit program.

Modicon Quantum - Screw Terminal Block

Quantum | 140XTS00200 | Modicon | 140 XTS 002 00 | 40 Point Terminal Strip

Backplanes are designed to mechanically secure and electrically connect all modules used in drops. The backplane contains a passive circuit board which permits modules to communicate with each other and to identify their slot numbers without further switch settings. Brackets are required when mounting backplanes in 19 inch NEMA cabinets. These brackets support the 2 through 10 position backplanes. The bracket mounts to rails using standard NEMA hardware. When mounting Quantum systems in a cabinet, a 4 in. (101.60 mm) space should be maintained above and below the modules. Side spacing should be 1 in. (25.40 mm) minimum. Wiring ducts up to 2 in. (50.80 mm) square may be centered horizontally between backplanes. Duct work or similar items mounted in this manner that extend further out than 2 in. require a 4 in. space (instead of 1 in.) between them and the upper and lower modules, to allow for air movement. Quantum modules, with the exception of power supply modules, can be inserted into any slot of any backplane, and, with the added exception of CPU modules, can be removed under power (hot swapped) without damaging modules or the backplane; power supply modules must be installed in the first or last slots of the backplane. Refer to the following figures and procedure when mounting modules.
