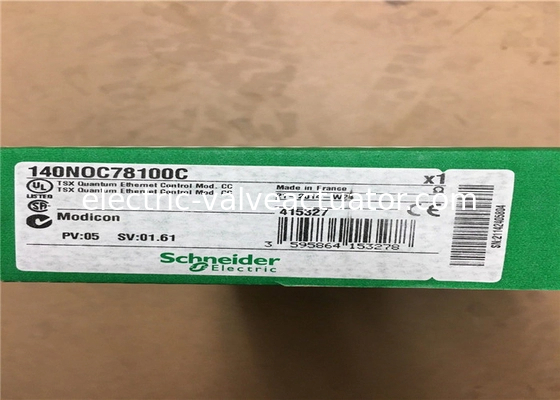

Full Duplex Exchange PLC Programmable Logic Controller SCHNEIDER 140NOC78100

Name: Full Duplex Exchange PLC Programmable Logic Controller SCHNEIDER 140NOC78100
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 140NOC78100
Price: 210.00 USD
Availability: InStock

Brand Name:	Schneider
Model Number:	140NOC78100
MOQ:	1
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	In Stock

Detail Information

Product Description

Detail Information

Place of Origin:

Certification:

Packaging Details:

New Original Box

Supply Ability:

In Stock

Highlight:

SCHNEIDER PLC Programmable Logic Controller

Programmable Logic Controller SCHNEIDER

Full Duplex PLC Programmable Logic Controller

Product Description

Detailed Product Description

Brand:	Schneider	Model:	140NOC78100
Palce Of Origin:	FR	Type:	Processor/Controller
Module Format:	Standard	Series:	Communications
Exchange Mode:	Full Duplex	Marking:	CE
Highlight:	ethernet plc controllers , industrial automation using plc

PLC Programmable Logic Controller SCHNEIDER 140NOC78100 COMMUNICATING MOUDLE

SIL
NOTE: For complete definitions and parameters related to SIL ratings refer tomIEC 61508, "Functional safety of electrical/electronic/programmable electronic safety related systems". Provided here is a partial definition. safety integrity level discrete level (1 out of a possible 4) for specifying the safety integrity requirements of the safety functions to be allocated to the E/E/PE safety-related systems, where safety integrity level 4 has the highest level of safety integrity and safety integrity level 1 has the lowest
(Definition IEC 61508) SIL2 project (application)
A project (application) that uses a Quantum Safety PLC (140 CPU 651 60S V1.00 or 140 CPU 671 60S V1.00) to implement Safety Functions in a Safety-Related System.
SIL3 project (application)
A project (application) that uses a Quantum Safety PLC (140 CPU 651 60S V2.00 or 140 CPU 671 60S V2.00) to implement Safety Functions in a Safety-Related
System.
SIR
Safety Integrity requirement
Safety Integrity requirements are derived from a risk assessment and describe the likelihood of a Safety Function to be performed satisfactorily, for instance the degree of certainty necessary for the Safety Function to be carried out.
sniffing reading the configuration out of a PLC
SRS
safety requirements specification
specification containing all the requirements of the safety functions that have to be performed by the safety-related systems
(Definition IEC 61508

Specifications

Manufacturer:	Modicon Quantum
Series:	Communications
Weight:	Ask
Product or component type:	Ethernet control module
Product compatibility:	140CPU6xxxx
Communication port protocol:	Modbus TCP
	Ethernet/IP
Exchange mode:	Full duplex
Maximum number of connections:	64
Transmission rate:	10/100 Mbit/s
Redundancy:	Yes hot standby redundant architecture
Topology:	Daisy chain loop
	Redundant ring
Web server:	Embedded
Communication service:	Embedded router
	CIP implicit messaging (I/O communication)
	NTP time synchronization
	FDR server
	DHCP/BootP server
	SMTP e-mail notification
	Device Type Manager (DTM)
	SNMP agent
	Quality of Service (QoS)
	CIP Explicit messaging (client messaging)
	Embedded 4-port switch
Ethernet service:	Rapid Scanning Tree Protocol (RSTP)
Transmission support medium:	Twisted pair
Port Ethernet:	10BASE-T/100BASE-TX, connector type: RJ45
Marking:	CE
Supply:	Via the power supply of the rack
Local signalling:	1 LED green for communication on the bus (Active)
	1 LED green for configuration status (Ready)
	1 LED green/red for device network status (Net Status 1)
	1 LED green/red for extended DIO network status (Net Status 2)
	1 LED green/red for module status (Mod Status)
	1 LED green/red for network communication status (Net Status)
Module format:	Standard

OTHER SUPERIOR PRODUCTS

Yasakawa Motor, Driver SG-	Mitsubishi Motor HC-,HA-
Westinghouse Modules 1C-,5X-	Emerson VE-,KJ-
Honeywell TC-,TK-	GE Modules IC -
Fanuc motor A0-	Yokogawa transmitter EJA-

Similar Products

140DDI35300

140DDI84100

140DDI85300

140DAI74000

140DAI75300

140DAO85300

140DAO84000

140DAO84210

140DDO35300

140DDO84300

140DRA84000

140EHC10500

140EHC20200

140ERT85410

140NOM21100

140XTS00200

140XBE10000

140XCA71703

140XCA71706

140XCP51000

The code of the last fault detected is given in this word. The following error codes cause the PLC to
stop if %S78 is set to 1. %S15, %S18 and %S20 are activated independently of %S78:
16#0002: PCMCIA signature not verified
16#2258: execution of HALT instruction
16#2302: call to a not supported system function in a user function block

16#9690: error of application CRC detected in background
16#DE87: calculation error on floating-point numbers (%S18, these errors are listed in the
word %SW17)
16#DEB0: watchdog overflow (%S11)
16#DEF1: character string transfer error (%S15)
16#DEF2: arithmetic or division by 0 error (%S18)
16#DEF3: index overflow (%S20)

Note: The codes 16#8xxx and 16#7xxx do not mstop the application and indicate an error on
function blocks. In case of a SIL3 related error, the PLC stops. After power off and restart of the PLC, %SW 125 contains the code of the cause of the error:

0x5AF1: sequence check error (unpredictableexecution in CPU)

0x5AF2: error in memory (corrupt address)
0x5AF3: comparison error (execution results of Intel and application processor differ)
0x5AF4: real-time clock error
0x5AF5: error initializing double codeexecution
0x5AF6: watchdog activation error
0x5AF7: error during memory check (takes more than 8 hours)
0x5AF8: error in memory check (corrupt RAM)

Note: %SW125 is only reset after init orcomplete download or restart (it always contains the last fault detected).
