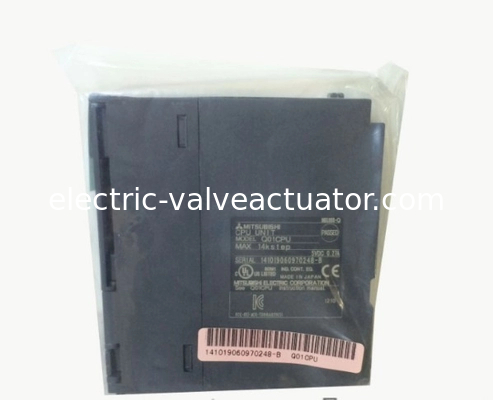

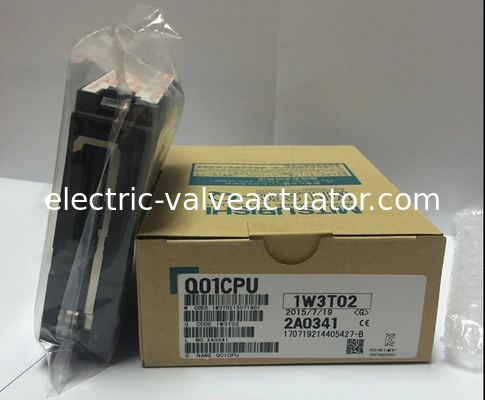

MITSUBISHI Programmable Logic Controller Q01CPU MELSEC-Q PLC 56 kB Program Capacity

Name: MITSUBISHI Programmable Logic Controller Q01CPU MELSEC-Q PLC 56 kB Program Capacity
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: Mitsubishi
Price: 210.00 USD
Availability: InStock

Brand Name:	Mitsubishi
Model Number:	Mitsubishi
MOQ:	1
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	In Stock

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Certification:

Packaging Details:

New Original Box

Supply Ability:

In Stock

Highlight:

56 kB MITSUBISHI PLC

PLC Q01CPU MITSUBISHI

Q01CPU MITSUBISHI PLC

Product Description

Detailed Product Description

Category:	Programmable Logic Controller	Model:	Q01CPU
Brand:	Mitsubishi	Country Of Origin:	Japan
Type:	Remote Module	Series:	MELSEC-Q
Program Capacity:	56 KB	Voltage:	5 V Dc
Highlight:	ethernet plc controllers , industrial automation using plc

MITSUBISHI Programmable Logic Controller Q01CPU MELSEC-Q PLC 56 kB Program Capacity

Specifications

Attribute	Value
For Use With	MELSEC Q Series
Number of I/O	2048
Manufacturer Series	MELSEC Q
Input Type	Analogue, Digital
Voltage Category	5 V dc
Output Type	Analogue, Digital
Communication Port Type	RS232C
Program Capacity	56 kB
Programming Interface	Computer, Operating Panel
Minimum Operating Temperature	0°C
Battery Backup	Yes
Mounting Type	DIN Rail
Memory	94 kB
Depth	98mm
Dimensions	89.3 x 27.4 x 98 mm
Maximum Operating Temperature	+55°C
Length	89.3mm
Maximum Inputs/Outputs	8192
Number of Communication Ports	1
Width	27.4mm

Features of the MELSEC System Q

CPU modules

The MELSEC System Q offers a wide range of CPU modules:

●Basic model QCPU

– Q00JCPU

– Q00CPU

–Q01CPU

●High performance model QCPU

– Q02CPU

– Q02HCPU

– Q06HCPU

– Q12HCPU

–Q25HCPU

●Universal model QCPU

– Q00UJCPU

– Q00UCPU

– Q01UCPU

– Q02UCPU

– Q03UDCPU

– Q03UDECPU

– Q04UDHCPU

– Q04UDEHCPU

– Q06UDHCPU

– Q06UDEHCPU

– Q10UDHCPU

– Q10UDEHCPU

– Q13UDHCPU

– Q13UDEHCPU

– Q20UDHCPU

– Q20UDEHCPU

– Q26UDHCPU

– Q26UDEHCPU

●Process CPU

– Q02PHCPU

– Q06PHCPU

– Q12PHCPU

– Q25PHCPU

●Redundant CPU

– Q12PRHCPU

– Q25PRHCPU

Base units

The Q00JCPU and Q00UJCPU include power supply,CPU and main base unit with five slots.

All other CPUs have to be mounted on a main base unit. Additionally one or two power supplies

can be mounted and up to twelve modules.

Extension base units can be connected to the main base unit via bus cable. The extension base units are available with or without slots for a separate power supply and with slots for up to twelve modules.

The Q00JCPU and Q00UJCPU can adress max. 16 modules on one main base unit and two

extension base units.

The CPU modules Q00CPU, Q01CPU, Q00UCPU, Q01UCPU and Q02UCPU are extendable with up to four extension base units and totally 24 modules (36 modules with Q02UCPU).

Except for Q12PRHCPU and Q25PRHCPU, all other CPU types can be extended with seven extension base units with maximum 64 slots total. The maximum distance between main base unit and last extension base unit is 13.2 m, so that the base units can be mounted inside the cabinet with some distance between each other.

Connecting extension base units to a redundant PLC system

It is not possible to connect an extension base unit to a main base unit with a redundant CPU up to serial no. 09012... The expansion can be done by remote I/O station via MELSECNET/H network.

It is possible to connect a main base unit with a redundant Q12PRHCPU or Q25PRHCPU beginning at serial no. 09012... up to maximum seven extension base units with totally 63 modules.

The first extension base unit must be the type Q65WRB, the second to seventh unit can be of type Q68RB.

Up to 8192 inputs and outputs

The CPU types Q02(H) to Q25H, the universal model CPUs from Q03UD(E)CPU on, all process CPUs and redundant CPUs can address up to 4096 in/outputs directly on the base unit. Together with remote I/Os these CPUs can address up to 8192 I/O points.

A Q02UCPU can address up to 2048 in/outputs directly and up to 8192 I/Os totally.

The Q00JCPU and Q00UJCPU address 256 I/O points directly. The Q00CPU, Q00UCPU, Q01CPU or Q01UCPU addresses 1024 I/O points. With these CPU types the number is extended to 2048 points and to 8192 points with the universal model PLC CPUs by remote I/Os.

High speed program processing

CPU types with an additional "H" (like Q12HCPU, Q25HCPU or Q12PHCPU) do a faster processing of the program. The operation time for the LD instruction (load) by the Q02CPU is 79 ns. The same instruction is done in 34 ns by the H type CPU.

An universal model PLC CPU increases the processing speed additionally. The operation time of the above mentioned LD instruction takes only 20 ns with the Q03UDCPU and only 9.5 ns with CPU modules from Q04UDCPU on.

With the new MELSEC System

Q main base units with integrated memory and processor the data transfer to I/O modules, intelligent function modules and network modules is much faster compared to the previous base units. The access of the Q02HCPU to an intelligent function module is with 20 μs per word 7 times faster than with the Q2ASHCPU. The refresh cycle of the MELSECNET/10 network is around 4.3 times faster compared to the Q02HCPU and needs only 4.6 ms for 8 kwords.

Similiar Products

Q12PHCPU	Q25PHCPU	Q12PRHCPU	Q25PRHCPU	Q170MCPU	Q170MCPU-S1
Q03UDVCPU	Q04UDVCPU	Q06UDVCPU	Q13UDVCPU	Q26UDVCPU	Q172CPU
Q00JCPU	Q00JCPU-SET	Q00JCPU-S8-SET	Q00CPU	Q01CPU	Q02CPU
Q12HCPU	Q06HCPU	Q02HCPU	Q25HCPU	Q12PHCPU	Q25PHCPU
Q00UJCPU	Q00UJCPU-SET	Q00UJCPU-S8-SET	Q00UCPU	Q01UCPU	Q02UCPU
Q03UDCPU	Q04UDHCPU	Q06UDHCPU	Q10UDHCPU	Q13UDHCPU	Q20UDHCPU
QS001CPU	Q26UDHCPU	Q03UDECPU	Q04UDEHCPU	Q06UDEHCPU	Q10UDEHCPU
Q13UDEHCPU	Q20UDEHCPU	Q26UDEHCPU	Q50UDEHCPU	Q100UDEHCPU	Q02PHCPU
Q172CPUN	Q173CPU	Q173CPUN	Q172LX	Q172EX	Q173PX
Q173DV	Q170BAT	Q172HBCBL05M	Q172HBCBL1M	Q172HBCBL5M	Q172J2BCBL05M

Overall configuration

What is Details of Our Mitsubishi Parts?

All the Mitsubishi Parts are new and original with package.
Warranty time: 180 or 360 days.
