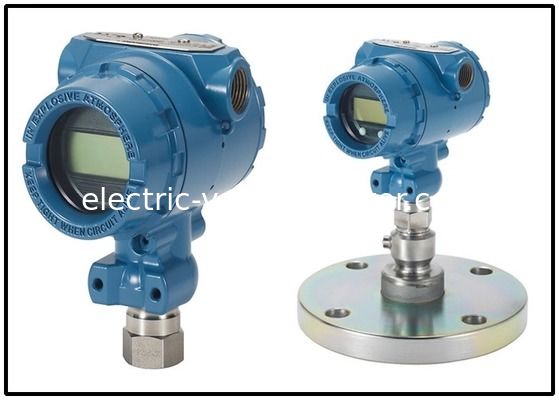

Compact Rosemount 2088 Gauge Pressure Transmitter / Absolute Pressure Transmitter

Brand Name:	Emerson-Rosemount
Model Number:	Rosemount 2051
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

Singapore

Type:

Pressure Transmitter

Rangedown:

50:1

Measurement Range:

Up To 4,000 Psig (275,8 Bar)

Communication Protocol:

4-20 MA HART

Diagnostics:

Basic

Packaging Details:

New original box

Highlight:

2088 Gauge Pressure Transmitter

2088 Absolute Pressure Transmitter

Product Description

Emerson Transmitter Rosemount 2088 Gage and Absolute Pressure Transmitter

All of Rosemount orders will be ordered acorring to your requirements!

Quick Details:

 Performance of 0.065% with High Accuracy option
 Lightweight, compact design for cost-effective installation
 Protocols available include 4-20 mA HART ® and 1-5 Vdc HART Low Power
 Absolute and gage pressure ranges up to 4,000 psi (276 bar)
 Rangeability of 50:1

Specifications:

Warranty	Up to 5-year limited warranty
Rangedown	50:1
Measurement Range	Up to 4,000 psig (275,8 bar) Gage, Up to 4,000 psia (275,8 bar) Absolute
Output	Differential pressure, scaled variable
Communication Protocol	4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®
Process Wetted Material	316L SST, Alloy C-276
Diagnostics	Basic Diagnostics
Certifications/Approvals	NSF, NACE®, hazardous location, see full specs for complete list of certifications

Rosemount™ 2088 Gage and Absolute Pressure Transmitter

With the Rosemount 2088 Gage and Absolute Pressure Transmitter, you can keep on schedule with a quick and easy-to-install solution. This transmitter features a Local Operator Interface (LOI) that has easy-to-use menus and built-in configuration buttons, so you can commission the device on the spot without complicated tools. This pressure transmitter is also available with manifolds and remote seals.

Proven reliability for gage and absolute applications

 Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power
 Fully configurable LCD display to display process variable, percent of range, and diagnostic messages
 Lightweight, compact design enables easy installation
 Choice of Stainless Steel or Alloy C-276 wetted materials

Unlock the value of devices with the Smart Wireless THUM ™ Adapter

 Gain access to field intelligence and improve quality, safety, availability, operations, and maintenance costs
 Remotely manage devices and monitor health
 Enable new wireless measurement points
 Utilize existing loop power

Proven, reliable, and innovative DP Level technologies

 Connect to virtually any process with a comprehensive offering of process connections, fill fluids, direct mount or capillary connections and materials

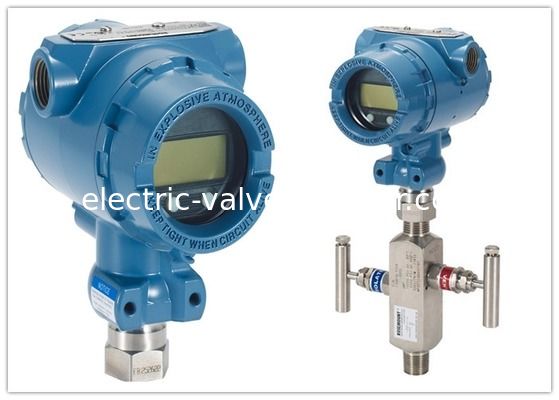

 Quantify and optimize total system performance with QZ option Instrument manifolds – quality, convenient, and easy
 Designed and engineered for optimal performance with Rosemount transmitters
 Save installation time and money with factory assembly
 Offers a variety of styles, materials, and configurations

Rosemount 2088 Pressure Transmitter Ordering Information ( A part )

Compact Rosemount 2088 Gauge Pressure Transmitter / Absolute Pressure Transmitter 0

Compact Rosemount 2088 Gauge Pressure Transmitter / Absolute Pressure Transmitter 1

Compact Rosemount 2088 Gauge Pressure Transmitter / Absolute Pressure Transmitter 2
