products details

Home Products

Direct Mount Pressure Temperature Transmitter Rosemount 3051L Level Transmitter Wireless

Name: Direct Mount Pressure Temperature Transmitter Rosemount 3051L Level Transmitter Wireless
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: Rosemount 3051L
Price: 210.00 USD
Availability: InStock

Brand Name:	Emerson-Rosemount
Model Number:	Rosemount 3051L
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

OEM

Category:

Level Transmitter

Max. Operating Pressure:

Up To 300 Psi (20,68 Bar)

Process Temperature Range:

-205°C-105°C

Seal System Type:

Direct Mount, Tuned-System

Communication Protocol:

4-20 MA HART

Process Wetted Material:

316L SST, Alloy C-276, Tantalum

Packaging Details:

New original box

Highlight:

3051L Wireless Level Transmitter

3051L Pressure Temperature Transmitter

Product Description

Pressure Transmitter Rosemount 3051L Level Transmitter Wireless Singapore Order

Introduction:

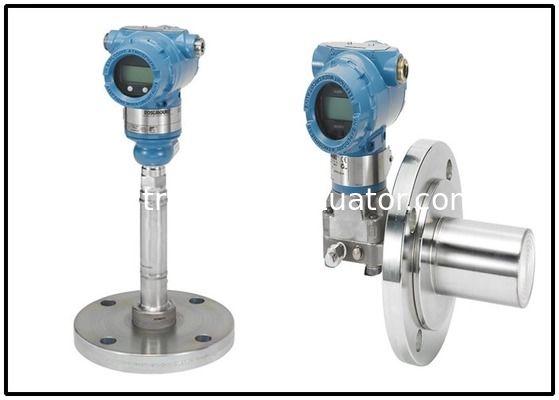

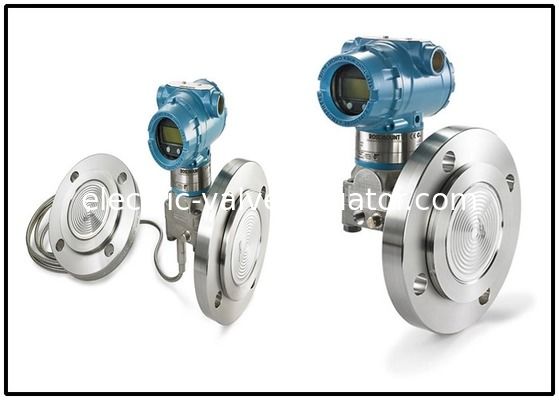

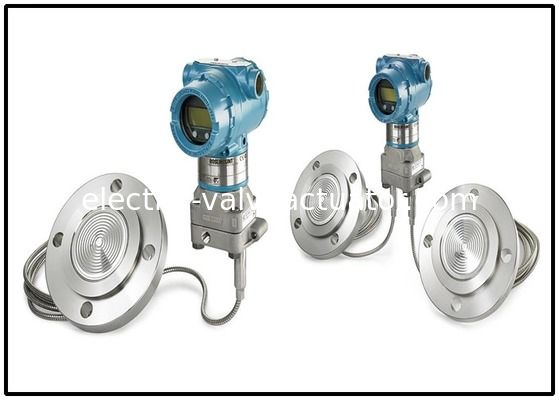

Rosemount™ 3051L Level Transmitter

With field-proven reliability, the Rosemount 3051L Level Transmitter is a fully-integrated level solution. This safety-certified transmitter allows for direct mounting or a Tuned-System™ assembly for optimized performance that reduces temperature effects by 10-20% and improves response time by over 80% versus traditional installations. Power advisory diagnostics enable this device to monitor electrical loop integrity and the Local Operator Interface (LOI) offers on-site commissioning.

Specifications:

Max. Operating Pressure	Up to 300 psi (20,68 bar)
Process Temperature Range	Based on fill fluid - Maximum 401°F (205°C), Minimum -157°F (-105°C)
Communication Protocol	4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®
Seal System Type	Direct Mount, Tuned-System
Transmitter Connection	Transmitter Connection
Process Connection	Flanged: ANSI/ASME, EN/DIN, JIS
Process Wetted Material	316L SST, Alloy C-276, Tantalum
Diagnostics	Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approvals	SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of certifications

Ordering Type

3051L Wireless / Level Transmitter

Rosemount 3051L Level Transmitter Ordering Information

The Standard offering represents the most common options. The starred options should be selected for best delivery.
The Expanded offering is subject to additional delivery lead time.

Direct Mount Pressure Temperature Transmitter Rosemount 3051L Level Transmitter Wireless 0

Direct Mount Pressure Temperature Transmitter Rosemount 3051L Level Transmitter Wireless 1

Direct Mount Pressure Temperature Transmitter Rosemount 3051L Level Transmitter Wireless 2

If you need more order information, we can send you the complete datasheet.

Rosemount 3051L Dimensional Drawings

Direct Mount Pressure Temperature Transmitter Rosemount 3051L Level Transmitter Wireless 3
