Rosemount Level Transmitter 1199 DP Seal System Direct/Remote Mount Seal for Precise Level Measurement

Rosemount Level Transmitter 1199 DP Seal System Direct/Remote Mount Seal for Precise Level Measurement

Brand Name: Rosemount
Model Number: Rosemount 1199
MOQ: 1
Price: Negotiations
Detail Information
Place of Origin:
Singapore
Packaging Details:
New original box
Highlight:

Rosemount 1199 Level Transmitter

,

Direct Mount Seal Level Transmitter

,

Remote Mount Seal Level Transmitter

Product Description

New Transmitter Rosemount DP Level Transmitters and 1199 Seal Systems

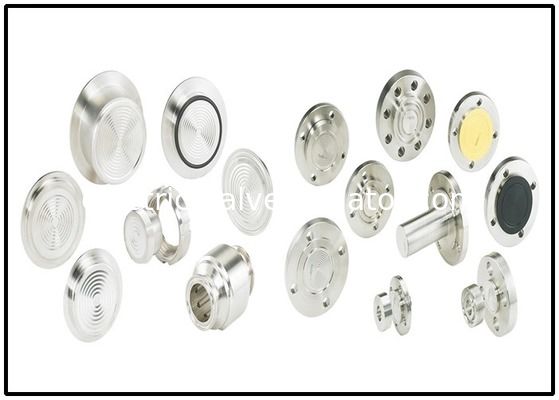

Rosemount™ 1199 Diaphragm Seal System


The Rosemount 1199 Diaphragm Seal System offers protection to transmitters, guarding against hot and cold, corrosive or erosive processes. This seal system features a variety of solutions, including industry-specific seals for difficult processes. This safety certified system does not require mounting hardware and can be used for many pressure measurement applications, providing reliable, remote measurements.



Applications
 Level, Flow, Pressure, Interface, Density
 Extreme hot and cold temperatures
 Corrosive, clogging, or viscous processes
 Hygienic requirements
 Special process connections



Specifications:




Seal System Type Direct Mount, Remote Mount, Tuned-System, Balanced System
Transmitter Connection Welded-Repairable, All Welded
Process Connection

Flanged: ANSI/ASME, EN/DIN, GOST, & JIS
Threaded: NPT, DIN, ISO
Hygienic

Process Wetted Material 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST, see PDS for full list of materials
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, 3A, NACE®, hazardous location, see PDS for full list of certifications
Process Connection Flanged: ANSI/ASME, EN/DIN, GOST, & JIS
Threaded: NPT, DIN, ISO
Hygienic
Process Wetted Material 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST, see PDS for full list of materials
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, 3A, NACE®, hazardous location, see PDS for full list of certification

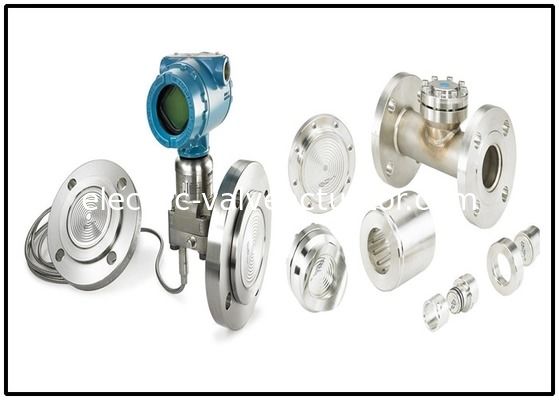

Rosemount 1199 Seal Systems
A seal system consists of a pressure transmitter, one or two seals, a fill fluid, and either a direct mount or capillary style connection.
Seal systems provide a reliable process pressure measurement and prevent the process medium from contacting the transmitter diaphragm. Transmitter/diaphragm seal systems should be considered when:
 The process temperature is outside of the operating ranges of the transmitter.
 The process is corrosive and/ or requires specific exotic materials of construction.
 The process contains suspended solids or is viscous and is prone to plugging of connections.
 The application requires the use of flush-mount hygienic connections that facilitates CIP/SIP service.
 There is a requirement for easier cleaning of the process from the connections to avoid contamination between batches.

Application flexibility
 Flanged, threaded, and hygienic process connections
 Meets industry standards such as EN 1092-1, ANSI/ASME B16.5, JIS B2238,
ANSI/ASME B1.20.1, EN 10226-1, GOST 12815-80, China Chemical Industrial
Standards HG20615 and HG20592, and 3-A Standard 74-03
 Variety of fill fluids including cold temperature, hot temperature, and hygienic &
food grade
 Three different capillary diameters allow for optimization of accuracy and time
response


Rosemount Level Transmitter 1199 DP Seal System Direct/Remote Mount Seal for Precise Level Measurement 0

When ordering Rosemount 1199 Direct and Remote Mount Seals, add the correct seal system ordering code to the transmitter model.
 Rosemount Level Transmitter 1199 DP Seal System Direct/Remote Mount Seal for Precise Level Measurement 1

Rosemount Level Transmitter 1199 DP Seal System Direct/Remote Mount Seal for Precise Level Measurement 2

Rosemount 1199 Direct Mount Seal Systems Ordering Information
  The Standard offering represents the most common options. The starred options should be selected for best delivery.
  The Expanded offering is subject to additional delivery lead time.

Rosemount Level Transmitter 1199 DP Seal System Direct/Remote Mount Seal for Precise Level Measurement 3
 Rosemount Level Transmitter 1199 DP Seal System Direct/Remote Mount Seal for Precise Level Measurement 4

Rosemount Level Transmitter 1199 DP Seal System Direct/Remote Mount Seal for Precise Level Measurement 5

Rosemount 1199 Remote Mount Seal Systems

Rosemount Level Transmitter 1199 DP Seal System Direct/Remote Mount Seal for Precise Level Measurement 6

Continue specifying a completed model number by choosing a remote seal type below:

Rosemount Level Transmitter 1199 DP Seal System Direct/Remote Mount Seal for Precise Level Measurement 7
