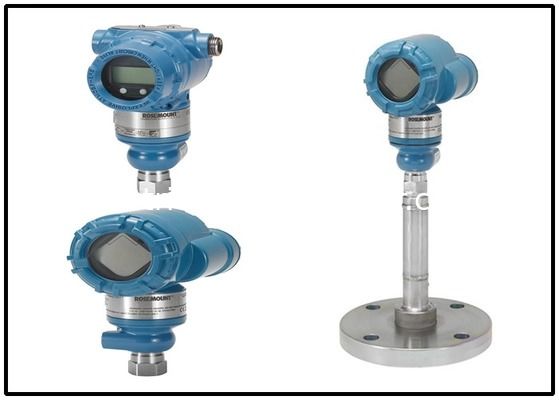

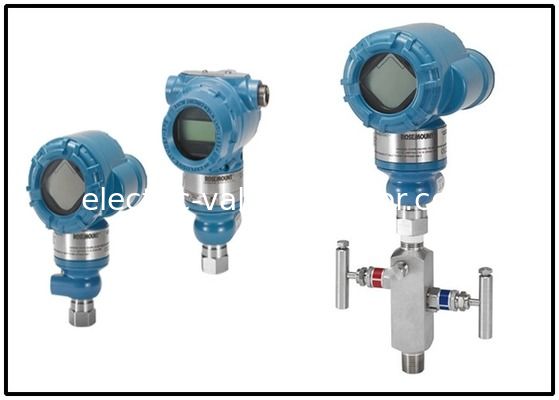

Wireless Rosemount 3051t Pressure Transmitter SERIES 3051TA / 3051TG

Wireless Rosemount 3051t Pressure Transmitter SERIES 3051TA / 3051TG

Brand Name: Singapore
Model Number: Rosemount 3051C series
MOQ: 1
Price: Negotiations
Detail Information
Place of Origin:
Singapore
Rangedown:
Up To 150:1
Communication Protocol:
4-20 MA HART
Measurement Range:
Up To 2000psi
Packaging Details:
New original box
Highlight:

3051TG Wireless Pressure Transmitter

,

Wireless Rosemount 3051t Pressure Transmitter

Product Description

Singapore Rosemount Pressure Transmitter 3051T SERIES 3051TA / 3051TG In-Line



Introduction:



1. Rosemount™ 3051 In-Line Pressure Transmitter


Confidently measure pressure and level with the Rosemount 3051 In-Line Pressure Transmitter. Engineered for 10-year installed stability and 0.04% of span accuracy, this industry-leading pressure transmitter provides you with the information necessary to run, control and monitor processes. The Rosemount 3051 includes features that meet your pressure measurement needs, such as a wide rangedown and Power Advisory diagnostics and is suitable for safety installations



2. Rosemount™ 3051 Wireless In-Line Pressure Transmitter


Designed with WirelessHART®technology, the Rosemount 3051 Wireless In-Line Pressure Transmitter provides consistent measurement of pressure and level, even in remote locations. This industry-leading pressure transmitter is engineered for 10-year installed stability and 0.04% of span accuracy, delivering data to run, control and monitor processes. This wireless transmitter also eliminates the need for complex wiring design, for a cost-effective and efficient solution.



Specifications:


Rangedown Up to 150:1
Communication Protocol 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART
Measurement Range Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute
Process Wetted Material 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
Diagnostics Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications



Ordering Type of 3051T Series:


1. Rosemount 3051TG Coplanar Pressure Transmitter


2. Rosemount 3051TA Coplanar Pressure Transmitter



Rosemount 3051T In-Line Pressure Transmitters


Rosemount 3051T In-Line Pressure Transmitters are the industry standard for Gage and

Absolute pressure measurement. The in-line, compact design allows the transmitter to
be connected directly to a process for quick, easy and cost effective installation.


Capabilities include:


1. Power Advisory can proactively detect degraded electrical loop integrity issues
(Option Code DA0)


2. Local Operator Interface with straightforward menus and built-in configuration
buttons (Option Code M4)


3.Safety Certification (Option Code QT)

Wireless Rosemount 3051t Pressure Transmitter SERIES 3051TA / 3051TG 0Wireless Rosemount 3051t Pressure Transmitter SERIES 3051TA / 3051TG 0



3051T In-Line Pressure Transmitter Ordering Information


The Standard offering represents the most common options. The starred options should be selected for best delivery.
The Expanded offering is subject to additional delivery lead time.

Wireless Rosemount 3051t Pressure Transmitter SERIES 3051TA / 3051TG 2

Wireless Rosemount 3051t Pressure Transmitter SERIES 3051TA / 3051TG 3

Wireless Rosemount 3051t Pressure Transmitter SERIES 3051TA / 3051TG 4

And more order information if you need, we can send you the complete datasheet.



Certifications:


1. Certificate of Origin


2. Calibration Certificate


3. Material Traceability Certification



Example Models:


3051TG Series


3051TG1A2B21A
3051TG2A2B21A
3051TG3A2B21A
3051TG4A2B21A
3051TG5A2B21A
3051TG1A2B21AB4
3051TG2A2B21AB4
3051TG3A2B21AB4
3051TG4A2B21AB4
3051TG5A2B21AB4
3051TG1A2B21AB4M5
3051TG2A2B21AB4M5
3051TG3A2B21AB4M5
3051TG4A2B21AB4M5
3051TG5A2B21AB4M5
3051TG1A2B21AB4M5K5
3051TG2A2B21AB4M5K5
3051TG3A2B21AB4M5K5
3051TG4A2B21AB4M5K5
3051TG5A2B21AB4M5K5
3051TG1A2B21AB4M5E5
3051TG2A2B21AB4M5E5
3051TG3A2B21AB4M5E5
3051TG4A2B21AB4M5E5
3051TG5A2B21AB4M5E5
3051TG1A2B21AB4M5I5
3051TG2A2B21AB4M5I5
3051TG3A2B21AB4M5I5
3051TG4A2B21AB4M5I5
3051TG5A2B21AB4M5I5
3051TG1A2C21AB4M5
3051TG2A2C21AB4M5
3051TG3A2C21AB4M5
3051TG4A2C21AB4M5
3051TG5A2C21AB4M5
3051TG1A2C21AB4M5K5
3051TG2A2C21AB4M5K5
3051TG3A2C21AB4M5K5
3051TG4A2C21AB4M5K5
3051TG5A2C21AB4M5K5
3051TG1A2C21AB4M5E5
3051TG2A2C21AB4M5E5
3051TG3A2C21AB4M5E5
3051TG4A2C21AB4M5E5
3051TG5A2C21AB4M5E5
3051TG1A2C21AB4M5I5
3051TG2A2C21AB4M5I5
3051TG3A2C21AB4M5I5
3051TG4A2C21AB4M5I5
3051TG5A2C21AB4M5I5
3051TG1A2B21BB4M5
3051TG2A2B21BB4M5
3051TG3A2B21BB4M5
3051TG4A2B21BB4M5
3051TG5A2B21BB4M5
3051TG1A2B21BB4M5K5
3051TG2A2B21BB4M5K5
3051TG3A2B21BB4M5K5
3051TG4A2B21BB4M5K5
3051TG5A2B21BB4M5K5
3051TG1A2B21BB4M5E5
3051TG2A2B21BB4M5E5
3051TG3A2B21BB4M5E5
3051TG4A2B21BB4M5E5
3051TG5A2B21BB4M5E5
3051TG1A2B21BB4M5I5


3051TA Series


3051TA1A2B21AB4M5

3051TA2A2B21AB4M5
3051TA3A2B21AB4M5
3051TA4A2B21AB4M5
3051TA5A2B21AB4M5
3051TA1A2B21AB4M5K5
3051TA2A2B21AB4M5K5
3051TA3A2B21AB4M5K5
3051TA4A2B21AB4M5K5
3051TA5A2B21AB4M5K5
3051TA1A2B21AB4M5E5
3051TA2A2B21AB4M5E5
3051TA3A2B21AB4M5E5
3051TA4A2B21AB4M5E5
3051TA5A2B21AB4M5E5
3051TA1A2B21AB4M5I5
3051TA2A2B21AB4M5I5
3051TA3A2B21AB4M5I5
3051TA4A2B21AB4M5I5
3051TA5A2B21AB4M5I5
