Rosemount 3051 Coplanar Pressure Temperature Transmitter CO / COC Offered

Rosemount 3051 Coplanar Pressure Temperature Transmitter CO / COC Offered

Brand Name: Emerson-Rosemount
Model Number: Rosemount 3051 series
MOQ: 1
Price: Negotiations
Detail Information
Place of Origin:
Singapore
Brand:
Emerson Rosemount
CO:
Offered
COC:
Offered
Packaging Details:
New original box
Highlight:

Rosemount 3051 Pressure Transmitter

,

3051 Pressure Transmitter

,

Coplanar Pressure Transmitter

Product Description

Rosemount 3051 Coplanar Pressure Transmitter made in Singapore Customized produnct



Introduction:


Rosemount™ 3051 Coplanar™ Pressure Transmitter


Benefit from industry-leading performance and patented technology with the Rosemount 3051 Coplanar Pressure Transmitter. With over 10 million devices installed, this pressure transmitter family offers an all-in-one solution for pressure, level and flow measurement. Engineered with a coplanar flange for installation and application flexibility, this transmitter is easy to install and designed with direct process mounting capability for cost-effective installation and efficiency.



Specifications:


Rangedown Up to 150:1
Communication Protocol 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART
Measurement Range Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute
Process Wetted Material 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
Diagnostics Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications
Process Wetted Material 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
Diagnostics Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications



Ordering Type of 3051 Series:

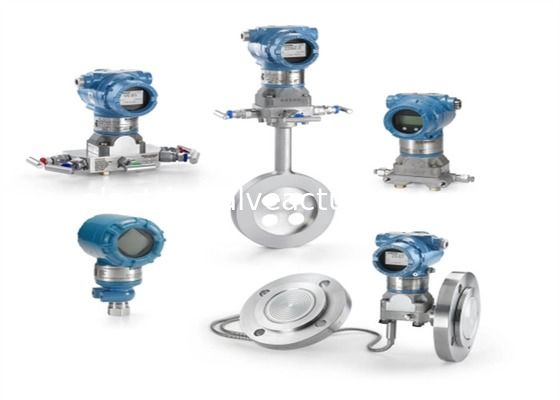

1. Rosemount 3051C Coplanar Pressure Transmitter


2. Rosemount 3051T In-Line Pressure Transmitter

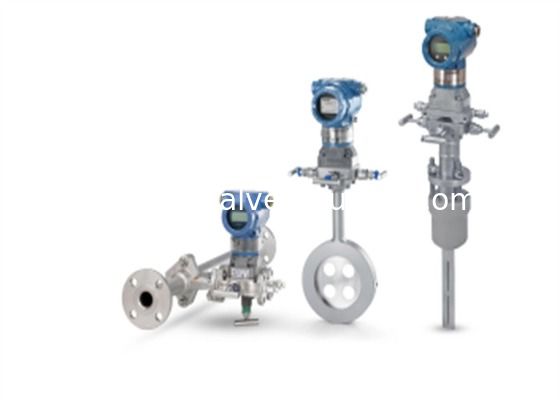

3. Rosemount 3051CFA Annubar Flowmeter


4. Rosemount 3051CFC Compact Flowmeter


5. Rosemount 3051CFP Integral Orifice Flowmeter


6. Rosemount 3051L Level Transmitter



3051 product visual identification


How can I identify a new Revision 8 3051?


Housing, electronics board, display and cover changes

A. New electronics

B. New electronics label

C. New LCD display connector location

D. New 2-line 8 character display

E. Standard dept cover

Rosemount 3051 Coplanar Pressure Temperature Transmitter CO / COC Offered 0

Performance specifications


This product data sheet covers HART, Wireless, F OUNDATION fieldbus, and PROFIBUS PA protocols unless specified.



Transmitter Reference accuracy


Stated reference accuracy equations include terminal based linearity, hysteresis, and repeatability. For wireless, F OUNDATION fieldbus

and PROFIBUS PA devices, use calibrated range in place of span.

Rosemount 3051 Coplanar Pressure Temperature Transmitter CO / COC Offered 1

Rosemount 3051 Coplanar Pressure Temperature Transmitter CO / COC Offered 2

Rosemount 3051 Coplanar Pressure Temperature Transmitter CO / COC Offered 3

Rosemount 3051 Coplanar Pressure Temperature Transmitter CO / COC Offered 4


Certifications:


1. Certificate of Origin


2. Calibration Certificate


3. Material Traceability Certification



Example Models:


3051CD0A02A1AB1H2L4M5
3051CD1A02A1AB1H2L4M5
3051CD2A02A1AB1H2L4M5
3051CD3A02A1AB1H2L4M5
3051CD4A02A1AB1H2L4M5
3051CD5A02A1AB1H2L4M5
3051CD0A02A1AB3H2L4M5
3051CD1A02A1AB3H2L4M5
3051CD2A02A1AB3H2L4M5
3051CD3A02A1AB3H2L4M5
3051CD4A02A1AB3H2L4M5
3051CD5A02A1AB3H2L4M5


3051CA1A02A1AB1H2L4M5

3051CA2A02A1AB1H2L4M5
3051CA3A02A1AB1H2L4M5
3051CA4A02A1AB1H2L4M5
3051CA5A02A1AB1H2L4M5
3051CA1A02A1AB3H2L4M5
3051CA2A02A1AB3H2L4M5
3051CA3A02A1AB3H2L4M5
3051CA4A02A1AB3H2L4M5
3051CA5A02A1AB3H2L4M5


3051TG1A2B21A

3051TG2A2B21A
3051TG3A2B21A
3051TG4A2B21A
3051TG5A2B21A
3051TG1A2B21AB4
3051TG2A2B21AB4
3051TG3A2B21AB4
3051TG4A2B21AB4
3051TG5A2B21AB4


3051TA1A2B21AB4M5
3051TA2A2B21AB4M5
3051TA3A2B21AB4M5
3051TA4A2B21AB4M5
3051TA5A2B21AB4M5



3051GP1A2B21AB4M5
3051GP2A2B21AB4M5
3051GP3A2B21AB4M5
3051GP4A2B21AB4M5
3051GP5A2B21AB4M5



3051CG1A02A1AB1H2L4M5
3051CG2A02A1AB1H2L4M5
3051CG3A02A1AB1H2L4M5
3051CG4A02A1AB1H2L4M5
3051CG5A02A1AB1H2L4M5
3051CG1A02A1AB3H2L4M5
3051CG2A02A1AB3H2L4M5
3051CG3A02A1AB3H2L4M5
3051CG4A02A1AB3H2L4M5
3051CG5A02A1AB3H2L4M5
