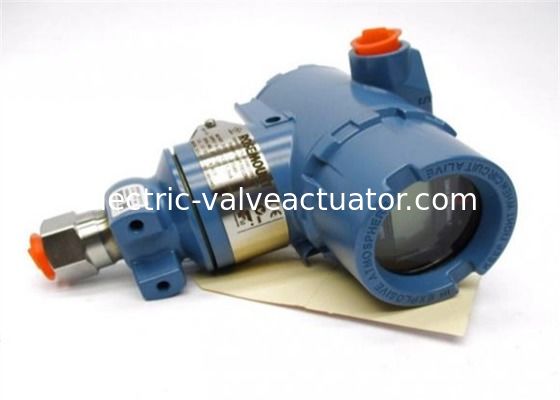

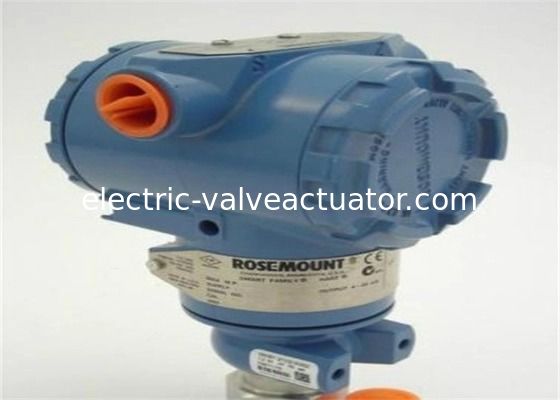

Smart Pressure Rosemount DP Transmitter 3051TG1A2B21A Patented Coplanar Technology

Smart Pressure Rosemount DP Transmitter 3051TG1A2B21A Patented Coplanar Technology

Brand Name: Rosemount
Model Number: 3051TG1A2B21A
MOQ: 1
Price: Negotiations
Detail Information
Place of Origin:
OEM
Price:
Contact Us
Packaging Details:
New original box
Highlight:

DP Transmitter 3051TG1A2B21A

,

Patented Coplanar DP Transmitter

,

Rosemount DP Transmitter 3051TG1A2B21A

Product Description

ROSEMOUNT SMART PRESSURE DP TRANSMITTERS 3051TG1A2B21A PATENTED COPLANAR TECHNOLOGY


Specifications

Warranty
Up to 5-year limited warranty

Rangedown
Up to 150:1

Communication Protocol
4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®

Measurement Range
Up to 2000 psi (137,89 bar) differential
Up to 2000 psig (137,89 bar) gage
Up to 4000 psia (275,79 bar) absolute

Process Wetted Material
316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400

Diagnostics
Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics

Certifications/Approvals
SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications

Wireless Update Rate
1 sec. to 60 min., user selectable

Power Module Life
Up to 10-year life, field replaceable (order separately)

Wireless Range
Internal antenna (225 m)



Features


Patented Rosemount Coplanar technology offers optimized performance as a pressure, Differential Pressure Flow or Differential Pressure Level solution
Application specific configuration allows you to transform your pressure transmitter into a flow meter with a totalizer or a level transmitter with volume calculations
Complete pressure, level, or flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool
The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions
Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime
Quick service buttons offer built-in configuration buttons for streamlined commissioning
SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
Wireless Features

WirelessHART® technology is secure and cost-effective and delivers >99% data reliability
SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
Easy installation enables quick instrumentation of measurement points without the cost of wiring
