CE Industrial Servo Motor Emerson Rosemount 3051 Differential Pressure Flow Transmitter Basic Diagnostics

Name: CE Industrial Servo Motor Emerson Rosemount 3051 Differential Pressure Flow Transmitter Basic Diagnostics
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 3051 Differential Pressure Flow Transmitter
Price: 210.00 USD
Availability: InStock

Brand Name:	Rosemount
Model Number:	3051 Differential Pressure Flow Transmitter
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

America

Communication Protocol:

4-20 MA HART®, WirelessHART®

Certifications/Approvals:

SIL 2/3 Certified To IEC 61508

Warranty:

1 Year

Packaging Details:

New original box

Highlight:

Industrial Servo Motor

CE Industrial Servo Motor

3051 Differential Pressure Transmitter

Product Description

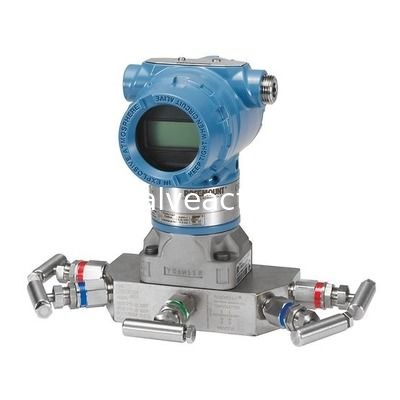

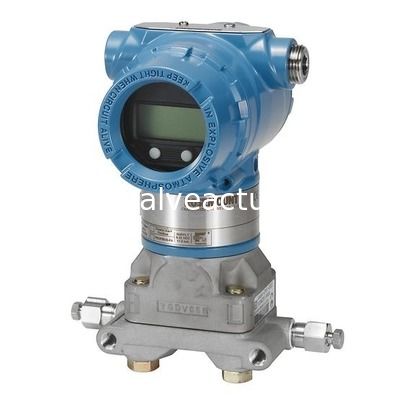

Emerson Rosemount™ 3051 Differential Pressure Flow Transmitter Basic Diagnostics, Power Advisory Diagnostics

The Rosemount 3051 Differential Pressure (DP) Flow Transmitter is an industry-leading flow measurement solution that features optimal accuracy. This transmitter can be pre-assembled to various primary elements, leak-tested and calibrated for cost-effective commissioning and quick installation while reducing leak points and increasing process control and accuracy. This DP flow transmitter is also engineered with power advisory diagnostics, which detect electrical loop integrity issues to reduce downtime.

Features

Available pre-assembled to primary elements for an installation-ready flow solution that ensures optimal performance
Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
Local operator interface offers easy-to-use menus and built-in configuration buttons for streamlined commissioning
Power Advisory diagnostics detect electrical loop integrity issues for reduced downtime
SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations

Specifications

Warranty	Up to 1-year limited warranty
Rangedown	Up to 150:1
Measurement Range	Up to 2000 psi (137,89 bar) differential
Output	Differential pressure, scaled variable
Communication Protocol	4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART®
Process Wetted Material	316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
Diagnostics	Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approvals	SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications

THE CHALLENGE

Information is critical to running an efficient and safe operation that maximizes production throughput. Limited labor resources and budgets restrict your ability to execute projects that would provide more information to improve operations. With the Rosemount 3051 Wireless Pressure Transmitter, you can monitor more points throughout your operation, even in remote and hard-to-reach locations, with 40-60% cost savings over wired networks.
