1-5 V Low Power HART Industrial Servo Motor Rosemount 3051 Pressure Transmitter

1-5 V Low Power HART Industrial Servo Motor Rosemount 3051 Pressure Transmitter

Brand Name: Rosemount
Model Number: 3051 Pressure Transmitter
MOQ: 1
Price: Negotiations
Detail Information
Place of Origin:
America
Rangedown:
Up To 150:1
Measurement Range:
Up To 2000psi
Communication Protocol:
4-20 MA HART
Packaging Details:
New original box
Highlight:

Pressure Transmitter HART Servo Motor

,

Low Power HART Servo Motor

Product Description

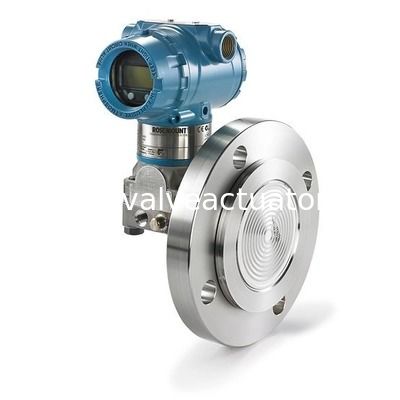

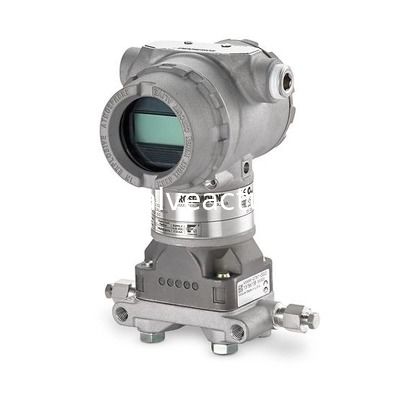

Rosemount™ 3051 Coplanar™ Pressure Transmitter FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART



Benefit from industry-leading performance and patented technology with the Rosemount 3051 Coplanar Pressure Transmitter. With over 10 million devices installed, this pressure transmitter family offers an all-in-one solution for pressure, level and flow measurement. Engineered with a coplanar flange for installation and application flexibility, this transmitter is easy to install and designed with direct process mounting capability for cost-effective installation and efficiency.




Specifications


Warranty Up to 1-year limited warranty
Rangedown Up to 150:1
Communication Protocol 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART
Measurement Range Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute
Process Wetted Material

316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST

Diagnostics Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications






Features


  • Over 10 million Rosemount 3051 devices installed globally, providing reliable pressure readings in harsh environments
  • Patented Rosemount Coplanar technology allows for direct mounting to multiple measurement applications
  • Fully-assembled pressure, level and flow solutions arrive ready-to-install for improved reliability and performance
  • Complete pressure assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation
  • 10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibility
  • Local Operator Interface (LOI) enables quick commissioning and provides easy access to process and device information
  • Power Advisory diagnostics detect electrical loop integrity issues, reducing downtime
  • SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations



THE SOLUTION


Solutions and Experience You Can Trust


• The Rosemount 3051 has the industry’s broadest offering of pressure, level and flow solutions available with SIL 2/3 certification to meet your demanding application needs for safety, control and monitoring.


• Emerson brings unmatched experience and reliability to pressure measurement as the industry leader with 50 years of proven history and over 15,000,000 installed devices.



Improve Operational Performance and Efficiency


• Tighten your process control with best-in-class performance.

• Increase efficiency with engineered solutions that meet application-specific requirements.



Increase Worker Productivity and Lower Maintenance Costs


• Commission the Rosemount 3051 in less than one minute with the Local Operator Interface (LOI), saving time and money at every device.

• Reduce downtime by detecting electrical loop integrity issues with Power Advisory Diagnostics.



Stay Within Budget


• Monitor more with wireless–even in remote and hard-to-reach locations–at a 40-60% savings over wired systems.

• Reduce installation costs with ready-to-install pressure, flow, and level solutions.
