2090P Rosemount Pulp And Paper Pressure Level Transmitter Calibrates As Low As 0 - 1.5 Psi 0.1 Bar

Name: 2090P Rosemount Pulp And Paper Pressure Level Transmitter Calibrates As Low As 0 - 1.5 Psi 0.1 Bar
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 2090P Pulp and Paper Pressure Transmitter
Price: 210.00 USD
Availability: InStock

Brand Name:	Rosemount
Model Number:	2090P Pulp and Paper Pressure Transmitter
MOQ:	1
Price:	Negotiations

Detail Information

Product Description

Detail Information

Place of Origin:

America

Communication Protocol:

4-20 MA HART®

Process Wetted Material:

316L SST

Rangedown:

Up To 20:1

Packaging Details:

New original box

Highlight:

2090P Rosemount Transmitter

0.1 Bar Rosemount Transmitter

Rosemount Pressure Level Transmitter

Product Description

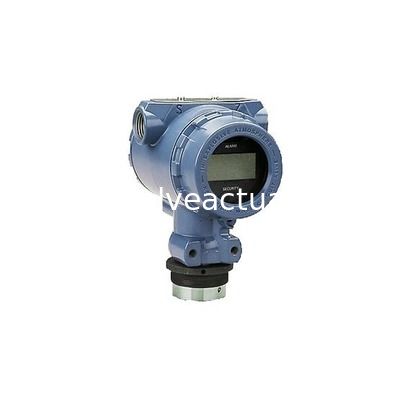

Rosemount™ 2090P Pulp and Paper Pressure Transmitter Calibrates as low as 0 to 1.5 psi (0.1 bar)

With its compact size and rugged construction, the Rosemount 2090P Pulp and Paper Pressure Transmitter is ideal for the pulp and paper industries. This lightweight transmitter is engineered with a 1 in. flush mount compatible with PMC process connection or 1 1/2 in. threaded mounting connection. This transmitter can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar) for reliable measurement capabilities.

Specifications

Warranty

Up to 5-year limited warranty

Rangedown

Up to 20:1

Communication Protocol

4-20 mA HART®

Measurement Range

Up to 300 psig (20,7 bar) Gage, Up to 300 psia (20,7 bar) Absolute

Process Wetted Material

316L SST

Diagnostics

Basic Diagnostics

Certifications/Approvals

Hazardous location, see full specs for complete list of certifications
