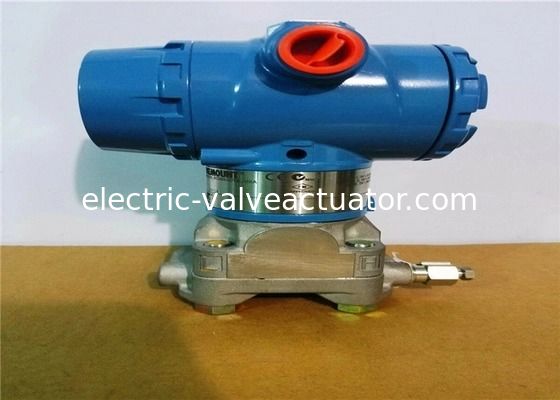

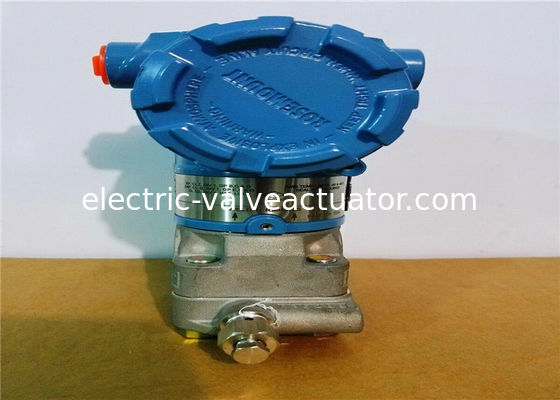

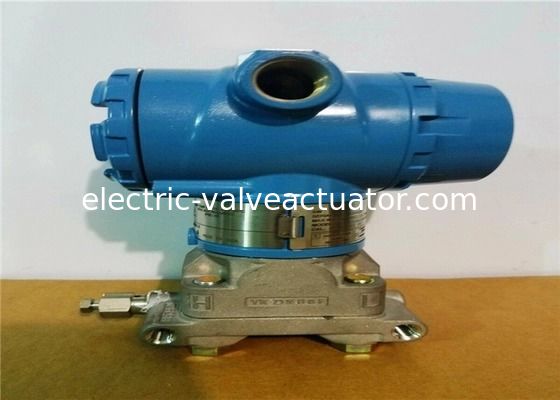

Rosemount Coplanar Gage Pressure Transmitter 3051CG4A02A1AB1H2L4M5 -14.2 to 300PSI

Rosemount Coplanar Gage Pressure Transmitter 3051CG4A02A1AB1H2L4M5 -14.2 to 300PSI

Brand Name: Rosemount
Model Number: 3051CG4A02A1AB1H2L4M5
MOQ: 1
Price: Negotiations
Detail Information
Place of Origin:
OEM
Quality:
Seal Original Package
Type:
Differential Pressure Transmitter
Packaging Details:
New original box
Highlight:

3051CG4A02A1AB1H2L4M5 Pressure Transmitter

,

3051CG4A02A1AB1H2L4M5 Gage Pressure Transmitter

,

Rosemount 3051CG4A02A1AB1H2L4M5 Pressure Transmitter

Product Description

Description of Rosemount Coplanar Gage Pressure Transmitter 3051CG4A02A1AB1H2L4M5 -14.2 to 300PSI


Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential,Gage, and Absolute pressure measurement.

The Coplanar Platform enables seamless integration with manifolds, flow and level solutions. Capabilities include:
Power Advisory can proactively detect degraded electrical loop integrity issues (Option Code DA0)
Local Operator Interface with straightforward menus and built-in configuration buttons (Option Code M4)
Safety Certification (Option Code QT)

3051C Coplanar Pressure Transmitters Ordering Information

The Standard offering represents the most common options. The starred options (H) should be selected for best delivery.

The Expanded offering is subject to additional delivery lead time.


Specifications:

Rangedown Up to 150:1
Communication Protocol 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART
Measurement Range Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute
Process Wetted Material 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
Diagnostics Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approval SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications


If you need more order information , we can send you the complete datasheet.
Certifications:
1. Certificate of Origin
2. Calibration Certificate
3. Material Traceability Certification


Rosemount 3051CG Series Gauge Pressure Transmitter

Industry best total performance, a flexible Coplanar platform, and installed five-year stability has made Rosemount 3051 the standard for Differential, Gage, and Absolute pressure measurement.

The 3051 Series SMART® Gauge Pressure Transmitters are offered in a variety of configurations for differential, gauge, liquid-level, flow and specific gravity measurement applications.


Output

  • 4-20 mA with digital signal based on HART Protocol

  • Low Power, 1-5 V dc with digital signal based on HART Protocol

  • Low power, 0.8-3.2 V dc with digital signal based on HART Protocol, optional

Range

  • 0-8.3 in H2O to 2000 psig

Accuracy

  • 2-5: +/-0.075% of span

Power

  • 4-20 mA: 10.5-55 V dc with no load

  • Low Power: 6-12 V dc with no load

Materials

  • Sensor Wetted Parts: SST, Hastelloy, Monel, Tantalum

Fluid

  • Sensor fill fluid: Silicone, Inert (Halocarbon)

Mounting

  • Coplanar and Traditional flanges

  • Adapters: Cadmium and Nickel-plated CS, 316 SST


Rosemount 3051CG Gage pressure transmitter
3051CG1A02A1AB1H2L4M5
3051CG2A02A1AB1H2L4M5
3051CG3A02A1AB1H2L4M5
3051CG4A02A1AB1H2L4M5
3051CG5A02A1AB1H2L4M5
3051CG1A02A1AB3H2L4M5
3051CG2A02A1AB3H2L4M5
3051CG3A02A1AB3H2L4M5
3051CG4A02A1AB3H2L4M5
3051CG5A02A1AB3H2L4M5
3051CG1A02A1AB1H2L4M5K5
3051CG2A02A1AB1H2L4M5K5
3051CG3A02A1AB1H2L4M5K5
3051CG4A02A1AB1H2L4M5K5
3051CG5A02A1AB1H2L4M5K5
3051CG1A02A1AB1H2L4M5E5
3051CG2A02A1AB1H2L4M5E5
3051CG3A02A1AB1H2L4M5E5
3051CG4A02A1AB1H2L4M5E5
3051CG5A02A1AB1H2L4M5E5
3051CG1A02A1AB1H2L4M5I5
3051CG2A02A1AB1H2L4M5I5
3051CG3A02A1AB1H2L4M5I5
3051CG4A02A1AB1H2L4M5I5
3051CG5A02A1AB1H2L4M5I5
3051CG1A02A1AB3H2L4M5K5
3051CG2A02A1AB3H2L4M5K5
3051CG3A02A1AB3H2L4M5K5
3051CG4A02A1AB3H2L4M5K5
3051CG5A02A1AB3H2L4M5K5
3051CG1A02A1AB3H2L4M5E5
3051CG2A02A1AB3H2L4M5E5
3051CG3A02A1AB3H2L4M5E5
3051CG4A02A1AB3H2L4M5E5
3051CG5A02A1AB3H2L4M5E5
3051CG1A02A1AB3H2L4M5I5
3051CG2A02A1AB3H2L4M5I5
3051CG3A02A1AB3H2L4M5I5
3051CG4A02A1AB3H2L4M5I5
3051CG5A02A1AB3H2L4M5I5
3051CG1A22A1AB4M5
3051CG2A22A1AB4M5
3051CG3A22A1AB4M5
3051CG4A22A1AB4M5
3051CG5A22A1AB4M5
3051CG1A22A1AB4M5DF
3051CG2A22A1AB4M5DF
3051CG3A22A1AB4M5DF
3051CG4A22A1AB4M5DF
3051CG5A22A1AB4M5DF
3051CG1A22A1AB4M5K5
3051CG2A22A1AB4M5K5
3051CG3A22A1AB4M5K5
3051CG4A22A1AB4M5K5
3051CG5A22A1AB4M5K5
3051CG1A22A1AB4M5E5
3051CG2A22A1AB4M5E5
3051CG3A22A1AB4M5E5
3051CG4A22A1AB4M5E5
3051CG5A22A1AB4M5E5
3051CG1A22A1AB4M5I5
3051CG2A22A1AB4M5I5
3051CG3A22A1AB4M5I5
3051CG4A22A1AB4M5I5
3051CG5A22A1AB4M5I5
