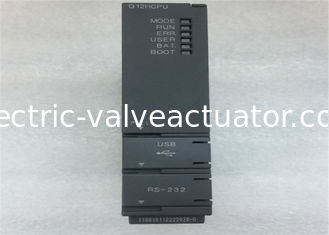

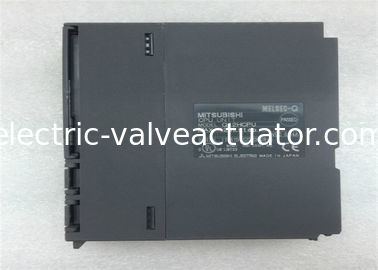

Q12HCPU PLC Programmable Logic Controller MITSUBISHI MELSEC Q PLC CPU Q12HCPU

Q12HCPU PLC Programmable Logic Controller MITSUBISHI MELSEC Q PLC CPU Q12HCPU

Brand Name: Mitsubishi
Model Number: Q12HCPU
MOQ: 1
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: In Stock
Detail Information
Place of Origin:
Japan
Certification:
CE
Packaging Details:
New Original Box
Supply Ability:
In Stock
Highlight:

Q12HCPU PLC Programmable Logic Controller

,

Q12HCPU PLC

,

MITSUBISHI Q12HCPU PLC

Product Description
Detailed Product Description
Brand: MITSUBISHI Model: Q12HCPU
Operating Ambient Temperature: 0 To 55 ° C Storage Ambient Temperature: -25 To 75 ° C
Ambient Humidity: 5 To 95% RH, Non Condensing Storage Ambient Humidity: 5 To 95% RH, Non Condensing
Highlight:

industrial automation using plc

,

industrial programmable controller







Q12HCPU PLC Programmable Logic Controller MITSUBISHI MELSEC Q PLC CPU Q12HCPU PLC Programmable Logic Controller















Operating ambient temperature 0 to 55 ° C
Storage ambient temperature -25 to 75 ° C
Ambient humidity 5 to 95% RH, non condensing
Storage ambient humidity 5 to 95% RH, non condensing























Internal relay [M] default 8192 points (M 0 to 8191) (changeable)
Latch relay [L] default 2048 points (L 0 to 2047) (changeable)
Link relay [B] default 2048 points (B 0 to 7 FF) (changeable)







Specifications:







Attribute Value
For Use With MELSEC Q Series
Number of I/O 2048
Manufacturer Series MELSEC Q
Input Type Analogue, Digital
Voltage Category 5 V dc
Output Type Analogue, Digital
Communication Port Type RS232C
Program Capacity 32 kB
Programming Interface Computer, Operating Panel
Length 89.3mm
Maximum Inputs/Outputs 8192
Number of Communication Ports 1
Width 27.4mm
Maximum Operating Temperature +55°C
Dimensions 89.3 x 27.4 x 98 mm
Depth 98mm
Battery Backup Yes
Minimum Operating Temperature 0°C
Mounting Type DIN Rail
Memory 94 kB







Impact resistance Meets JIS B 3502, IEC 61131-2 (147 m / s 2, 3 times in each of X, Y and Z directions)


Operating atmosphere No corrosive gas


Usage Altitude 0 to 2000 m


Installation location in control panel


Over voltage category Ⅱ or less


Pollution degree 2 or less


Device class Class I























Special relay [SM] 1024 points (SM 0 to 1023) (Device number is fixed)


Special register [SD] 1024 points (SD 0 to 1023) (Device number is fixed)


Function input [FX] 16 points (FX 0 to F) (Device number is fixed)


Function output [FY] 16 points (FY 0 to F) (the number of device points is fixed)


Function register [FD] 5 points (FD 0 to 4) (Device number is fixed)



















Height (H) 98 mm


Width (W) 27.4 mm


Depth (D) 89.3 mm

















Data register [D] default 11136 points (D0 to 11135) (changeable)


Link register [W] default 2048 points (W 0 to 7 FF) (changeable)


Annunciator [F] default 1024 points (F0 to 1023) (changeable)


Edge relay [V] default 1024 points (V 0 to 1023) (changeable)
