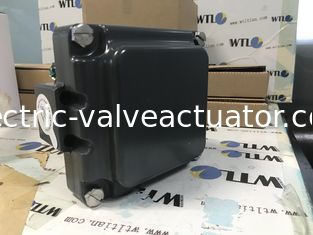

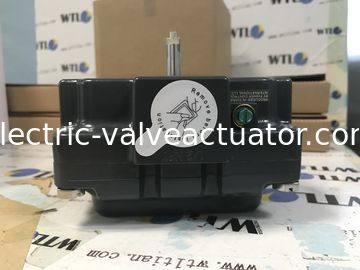

TVH-E20GNPM TOPWORX Emerson Valve Monitor in Hardcoat Anodized Aluminum or 316 Stainless Steel

TVH-E20GNPM TOPWORX Emerson in Hardcoat Anodized Aluminum or 316 Stainless Steel


Model TVH,
Stainless Steel base and lid Bus/Sensor (2) P&F NJ2-V3-N
Area Classification Class 1, Div. 1, Groups A,B,C&D; Class II, Div. 1, Groups E,F&G; IP67, 4, 4X; Ex ia IIC T4
Visual Display 90° Green Open / Red Closed
Shaft NAMUR, 304 Stainless Steel
Conduit Entries (2) 1/2” NPT
O-rings Silicone Temperature Rating -20°C to 40°C
Installation on Actuator

Orientations, Normal and Reverse Acting

Normal acting is full clockwise when the process valve is closed and counterclockwise when the process valve is open. Reverse acting is full clockwise when the process valve is open and counterclockwise when the process valve is closed.

90° indicator dome assemblies are designed to accommodate any mounting arrangement and can be adjusted up to 9° off axis if needed. 45° indicator dome assemblies can only accommodate normal acting applications that are mounted parallel ±9°. Consult your local distributor or factory representative for 45° reverse acting or mounted perpendicular applications.

The image to the left shows a TopWorx™ unit mounted parallel to the process valve in the closed position. The green arrow at the top shows the “normal acting” direction of travel to open the valve. This is the standard orientation and unless other-wise specified, your unit will be factory set to operate in this fashion.

The image to the right shows a TopWorx™ mounted perpendicular to the process valve in the closed position. The green arrow at the top shows the “normal acting” direction of travel to open the valve.


Mounting

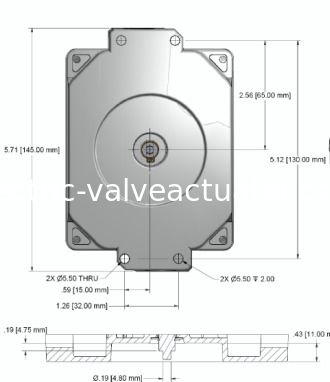

TopWorx™ has numerous mounting bracket kits, both rotary and linear, available to meet your specific application. Consult your local distributor or factory representative for ordering information. The illustration below shows a direct NAMUR mount on a quarter turn valve. Refer to your mounting kit documentation for specific mounting instructions.

Storage

Until conduit, conduit covers, and any applicable spool valve port connections are properly installed, the TopWorx™ unit will not support its IP/NEMA rating as the unit ships with temporary covers. Ensure that it is stored in a dry environment with a relative humidity range between 10%-95% and a temperature ranging from -40ºF (-40ºC) to 160ºF (71ºC). Once properly installed, the temperature range listed on the name-plate will supersede this storage temperature range.
